Chapter 2: Jumpers and Connectors
VTC 6120 User Manual

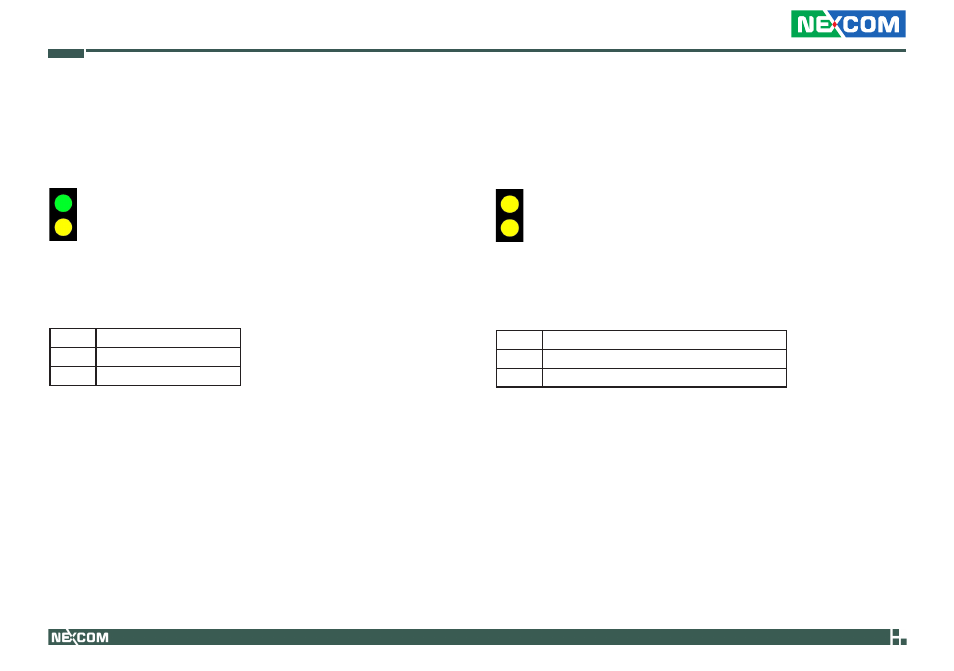

Power On and IDE Active LED
Connector location: LED1
T1
B1
Connector Pin Definition
LED Function Description
T1 POWER LED
B1 HD LED
GPIO and UMTS LEDs
Connector location: LED2
T2
B2
LED I/O Port Address and Data
LED Function Description
T2 I/O PORT Address: 0EE0; Bit0: 1 (Light), 0 (Dark)
B2 UMTS STATUS
