NEXCOM VTC 6120 User Manual
Page 100
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
87
Appendix C: VTC 6120 Carrier Board
VTC 6120 User Manual

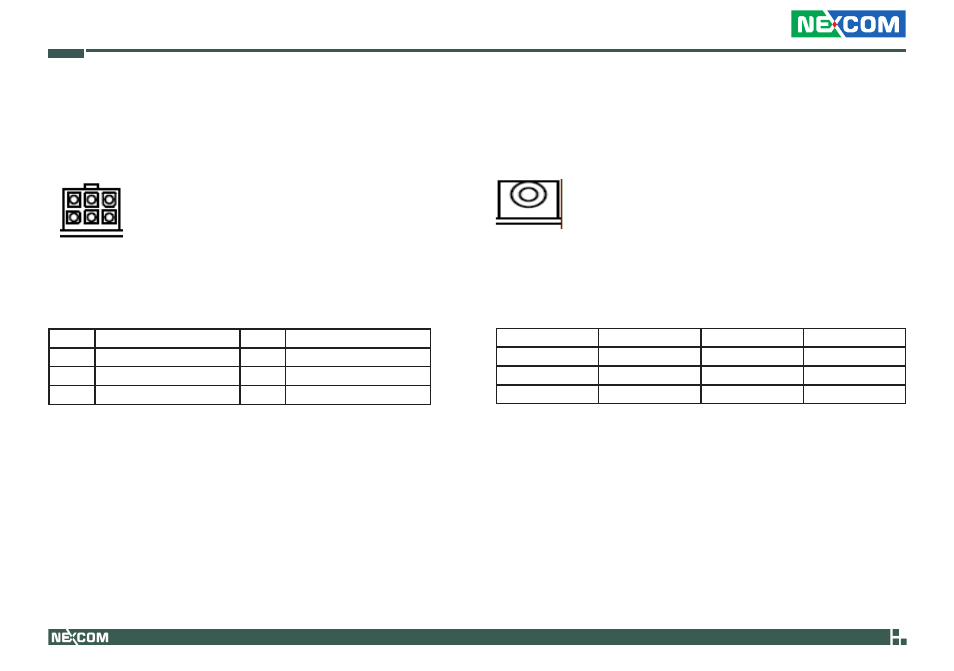

External 12V & 5V Power and SMBUS Connector
Connector location: CN2
6
3
4
1
Connector Pin Definition
Pin
Definition
Pin
Definition
1
5V
2
12V
3
SMBCLK
4
GND
5
GND
6
SMBDATA
Mic-in
Connector location: CN11 and CN15
Connector Pin Definition
Pin
Definition
Pin
Definition
1
NC
2
MIC_JD
3
NC
4
MIC_OUT
5
GND
6
GND
