Chapter 2: Jumpers and Connectors

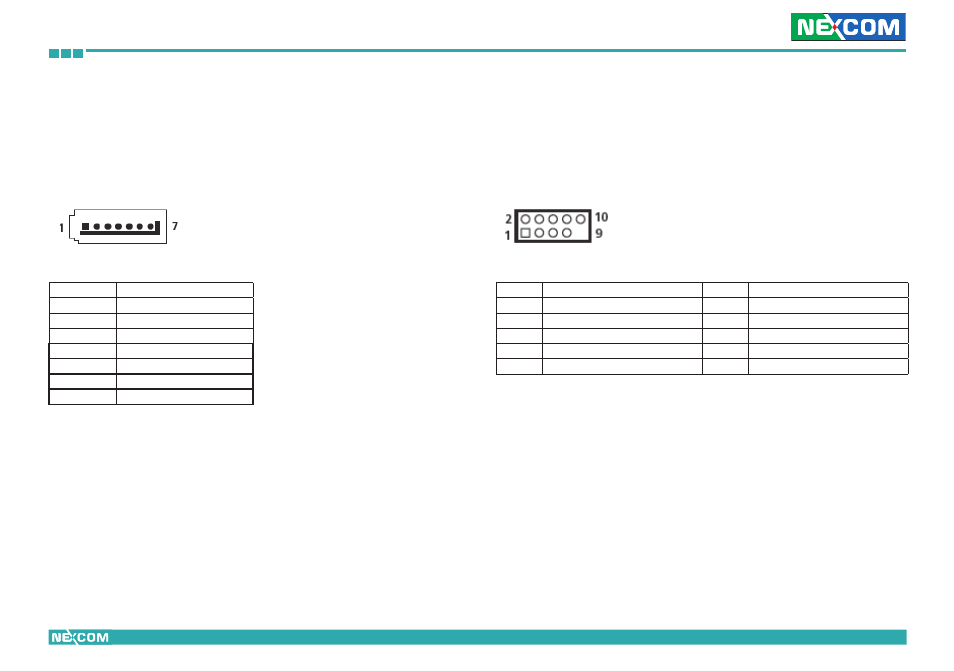

SATA 2.0 Connectors
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180)
Connector location: CN7 (SATA2), CN3 (SATA3), CN2 (SATA4),
CN6 (SATA5)
Pin Definition
1 GND
2 SATA_TX_P
3 SATA_TX_N
4 GND
5 SATA_RX_P
6 SATA_RX_N
7 GND
USB Connectors
Connector type: 2x5 10-pin header, 2.54mm pitch
Connector location: JP6 (USB6, USB7), JP3 (USB8, USB9),
JP9 (USB4, USB5)
Pin Definition Pin Definition
1 5VDUAL 2 5VDUAL
3 DATA0_N 4 DATA1_N
5 DATA0_P 6 DATA1_P
7 GND 8 GND
9 10 NC
