NViS 6210 / 6220 User Manual
Chapter 2: Jumpers and Connectors

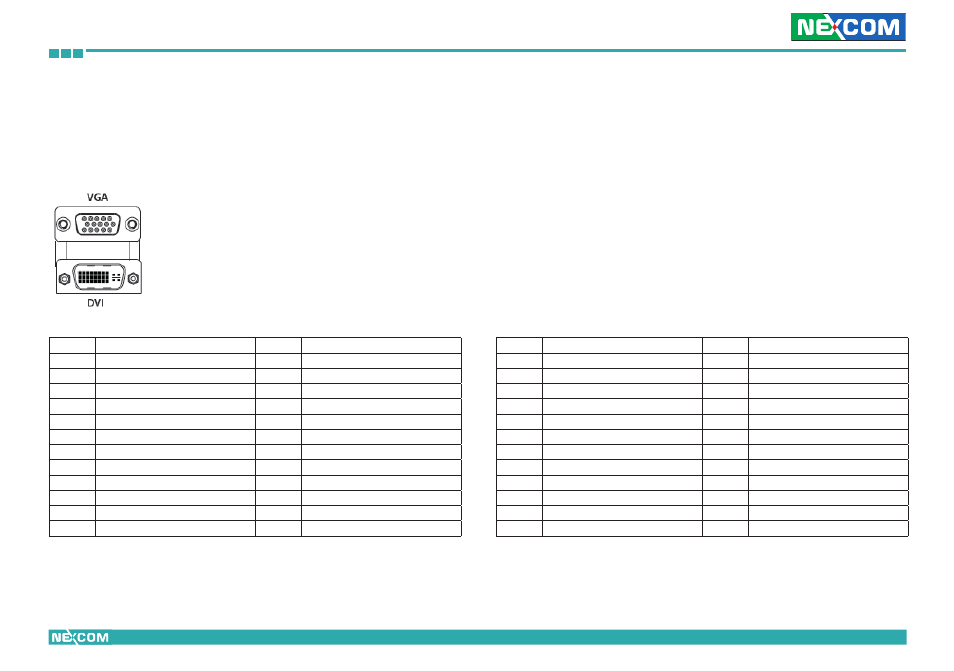

VGA and DVI-D Ports
Connector type: DB-15 port, 15-pin D-Sub (VGA)
24-pin D-Sub, 2.0mm-M-180 (DVI)
Connector location: CN22
Pin
Definition
Pin
Definition
1
DVI_DATA2_N
2
DVI_DATA2_P
3
GND
4
NC
5
NC
6
DVI_CTRL_CLK
7
DVI_CTRL_DATA
8
NC
9
DVI_DATA1_N
10
DVI_DATA1_P
11
GND
12
NC
13
NC
14
DVI_PWR_S_VCC5
15
GND
16
DVI_HPDET
17
DVI_DATA0_N
18
DVI_DATA0_P
19
GND
20
NC
21
NC
22
NC
23
DVI_CLK_P
24
DVI_CLK_N
C1
NC
C2
NC
C3
NC
C4
NC
C5A
GND
C5B
GND
MH1
Chassis_GND2
MH2
Chassis_GND2
25
RED_VGA
26
GREEN_VGA
27
BLUE_VGA
28
GND
29
GND
30
GND
31
GND
32
GND
33
GND
34
GND
35
GND
36
DDC_DATA_VGA
37
HSYNC_VGA
38
VSYNC_VGA
39
DDC_CLK_VGA
MH3
Chassis_GND2
MH4
Chassis_GND2
