Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved

28

NViS 6210 / 6220 User Manual

Chapter 2: Jumpers and Connectors

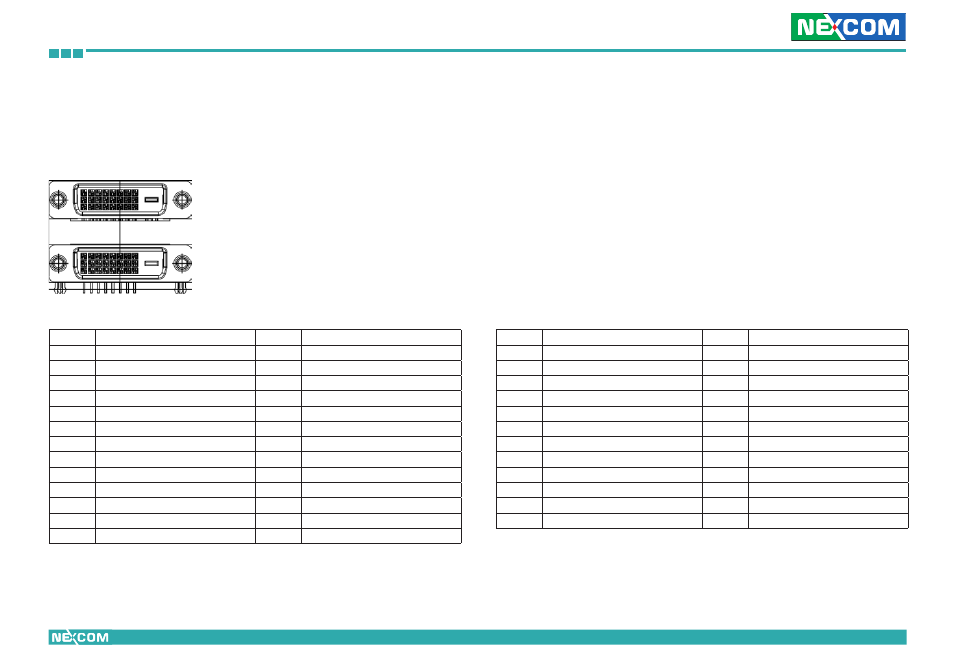

Video and Audio In Ports
Connector type: Dual stack DVI port
Connector location: CN21

Pin

Definition

Pin

Definition

1

A_C1_ VIDEO

2

A_C2_ VIDEO

3

A_C3_ VIDEO

4

A_C4_ VIDEO

5

A_C5_ VIDEO

6

A_C6_ VIDEO

7

A_C7_ VIDEO

8

A_C8_ VIDEO

9

GND

10

GND

11

GND

12

GND

13

GND

14

GND

15

GND

16

GND

17

A_C1_AUDIO

18

A_C2_AUDIO

19

A_C3_AUDIO

20

A_C4_AUDIO

21

A_C5_AUDIO

22

A_C6_AUDIO

23

A_C7_AUDIO

24

A_C8_AUDIO

MH1

GND

MH2

GND

1

B_C1_ VIDEO

2

B_C2_ VIDEO

3

B_C3_ VIDEO

4

B_C4_ VIDEO

5

B_C5_ VIDEO

6

B_C6_ VIDEO

7

B_C7_ VIDEO

8

B_C8_ VIDEO

9

GND

10

GND

11

GND

12

GND

13

GND

14

GND

15

GND

16

GND

17

B_C1_AUDIO

18

B_C2_AUDIO

19

B_C3_AUDIO

20

B_C4_AUDIO

21

B_C5_AUDIO

22

B_C6_AUDIO

23

B_C7_AUDIO

24

B_C8_AUDIO

MH1

GND

MH2

GND
