HGMC-11S
Hardened 1-port 1000Base-TX to 1000Base-FX SFP Media Converter
3 V1.0

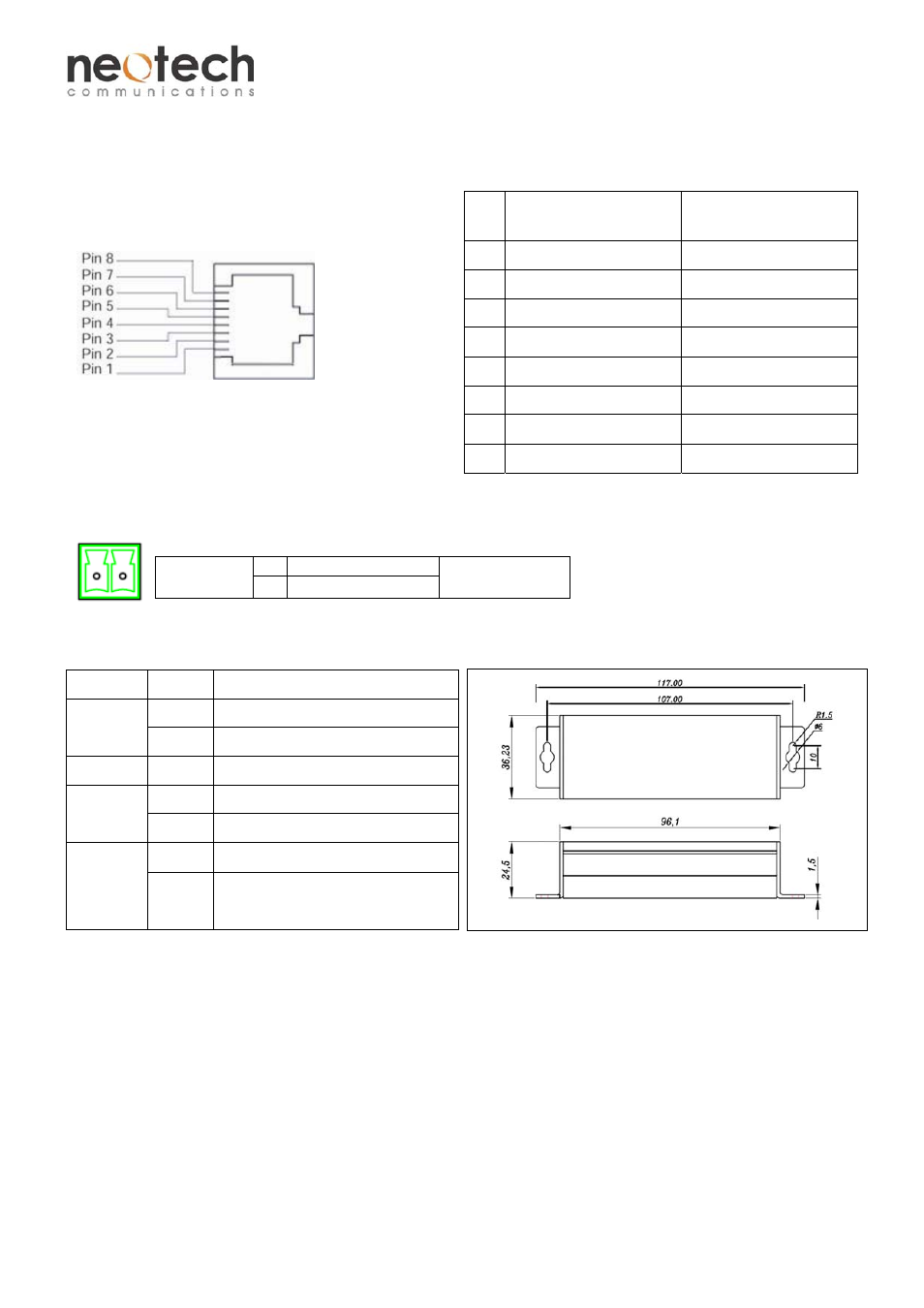

Interface
Ethernet Port
RJ-45 Pin Assignment
.
Pin MDI Signal Definition MDIX Signal Definition
1 TP0+ TP1 +
2 TP0- TP1-
3 TP1 + TP0+
4 TP2+ TP3+
5 TP2- TP3-
6 TP1- TP0-
7 TP3+ TP2+
8 TP3- TP2-
Power Connection
The Port Status LEDs, dimension drawing for the Micro unit
LED State Indication
PWR Green Power on.
Off Power off.
100 Green TX and RX Fiber link stable
SPD Green 100Base-TX
Off 10Base-TX
LINK/ACT Steady A valid network connection established
Flashing Transmitting or receiving data.
ACT Stands for Activity.
Functional Description
 Converts1000Base-TX port to 1000Base-FX.
 Supports Full/Half duplex.
 Supports External SFP.
 Supports
Auto-MDI/MDIX.
 Sleek Micro-type design, fits within most camera housing.
 Extensive LED indicators for network diagnostics
 Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature.
12VDC
- GND
Terminal Block
+ 12V
Top View
Side View
- +
