OPTIM SERIES
6
As regards the distribution of loads within the equipment, its centre of gravity may
be displaced from the centre of the cabinet. The necessary precautions must
be taken to prevent the equipment from tipping over during abrupt movements.

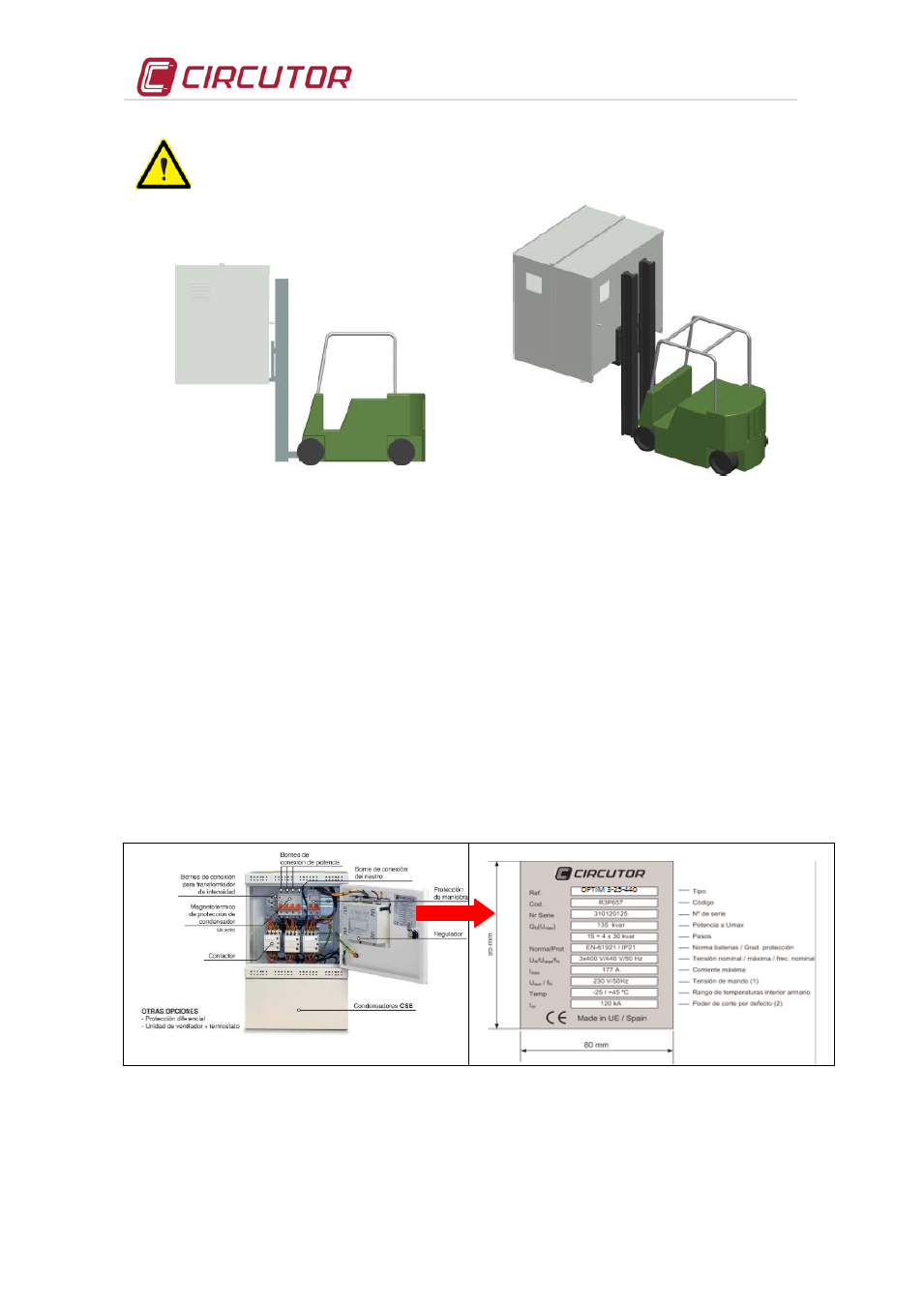

Fig. 3-2 .-Unloading with a Forklift
3.3 Storage
The following storage recommendations shall be followed for the capacitor bank:
- Avoid placing it over irregular surfaces.
- Do not store in outdoor areas, humid areas or areas exposed to projected water.
- Avoid hot spots (maximum environmental temperature: 45 ºC)
- Avoid saline and corrosive environments.
- Avoid storing the equipment in areas where a lot of dust is generated or where the risk of
chemical or other types of contamination is present.
- Do not place any weight on top of the equipment cabinets.
4 TECHNICAL FEATURES
4.1 Label with the unit's features
The label with all the equipment features is located inside the equipment, generally next to the PF
regulator (refer to Fig. 4-1)
Fig. 4-1.- Label with the unit's features
