Connecting a potentiometer to analog input 1, Drive, Analog inputs – Applied Motion ST10-C-CE User Manual

Page 33: Gnd ain +5v out, Ain2

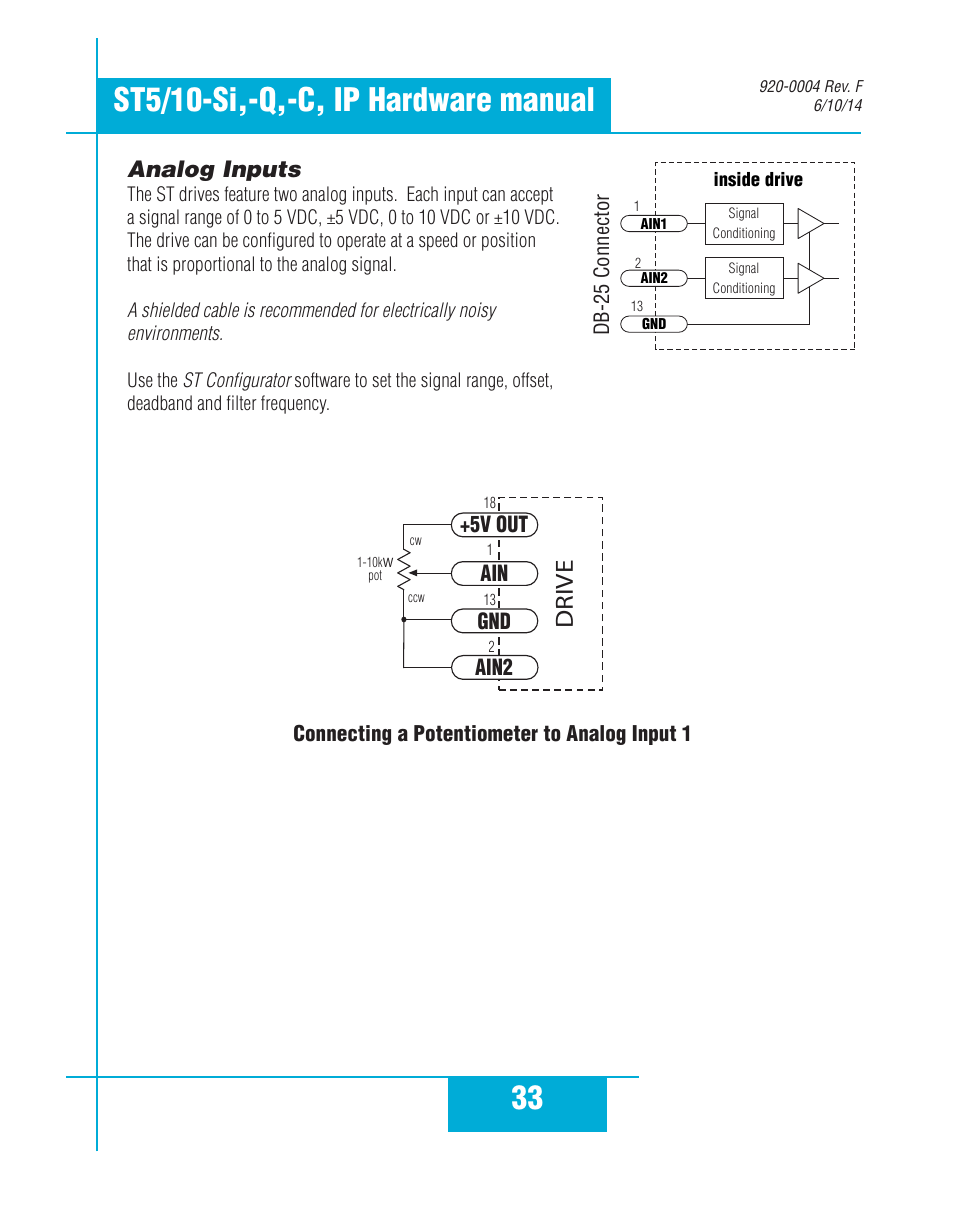

Connecting a potentiometer to analog input 1, Drive, Analog inputs | Gnd ain +5v out, Ain2 | Applied Motion ST10-C-CE User Manual | Page 33 / 52

Connecting a potentiometer to analog input 1, Drive, Analog inputs | Gnd ain +5v out, Ain2 | Applied Motion ST10-C-CE User Manual | Page 33 / 52
