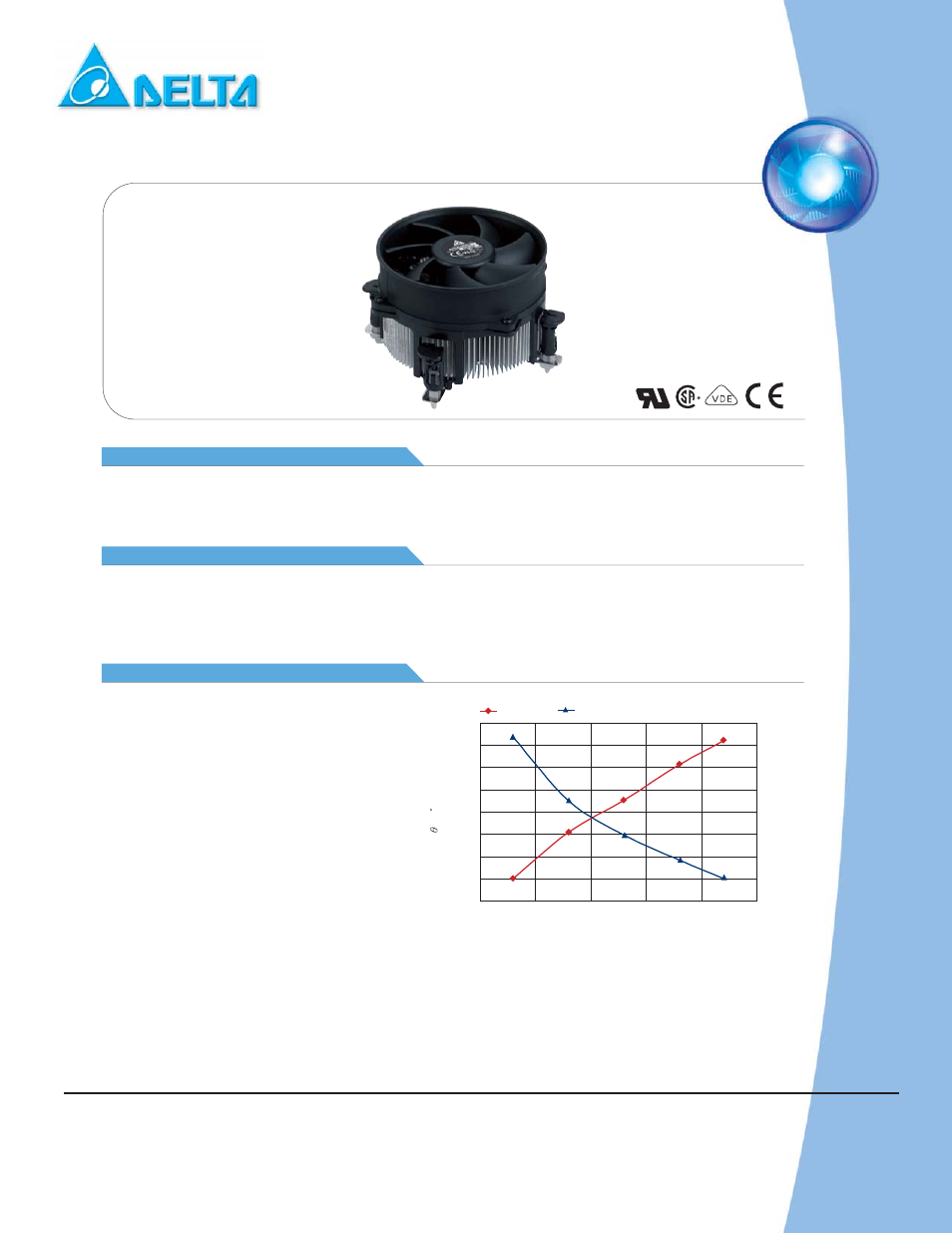

Delta Electronics FHS-A7015B40 - Manual (Page 5)

·
·
·
Heat Sink
Thermal interface material
Fan (90 x 90 x 25 mm)
Type: Thermal Shrink
Material: Fin-Aluminum 6063 or Equivalent.
Core-Copper C1100 or Equivalent.
Dimension: 90 90 32 mm
Material: Dow Corning SC102 or Equivalent.
Rated Voltage: 12 V
Life Time:
one ball one sleeve bearing 40000 hrs
Connector:
a..Lead wire: UL 1007 AWG#24
pin 1: black wire--------(-)
pin 2: red wire----------(+)
pin 3: blue wire---------(F00)
b. Housing: WIESON 2510C888-001 or equivalent
c. Terminal: WIESON 2511-T1 or equivalent
x x
·
·
·
Thermal resistance: 0.25 C/W (ref.)
Heatsink Weight: 380 g (ref.)
Clipping Force: 20.0 Kgf (ref.)
o
· Intel Socket 775 Prescott FMB2.0
Application:
Thermal & Mechanical Specification:
Component Specification:
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL : 1-510-668-5100
FAX : 1-510-668-0680
DELTA ELECTRONICS, INC.
252, SHANG YING ROAD, KUEI SAN,
TAOYUAN HSIEN 333, TAIWAN, R.O.C.
TEL: 886-3-3591968 EXT.2060
FAX: 886-3-3591991
DELTA ELECTRONICS EUROPE LTD.
2 YOUNG PLACE
KELVIN INDUSTRIAL ESTATE
EAST KILBRIDE, GLASGOW G75 OTD, U.K.
TEL : 44-1355-588888
FAX : 44-1355-588889
DELTA ELECTRONICS (JAPAN) INC.
DELTA SHIBADAIMON BUILDING
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL : 81-3-5733-1111
FAX : 81-3-5733-1211
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
Speed (rpm)
Noise
(dBA)
Thermal Resistance Noise (dBA)
FHS-A9025A00
288A0404
0.240
0.250
0.260
0.270
0.280
0.290
0.300
0.310
0.320
2000 2500 3000 3500 4000 4500
30.0
35.0
40.0
45.0
50.0
ca
(
C
/W)
