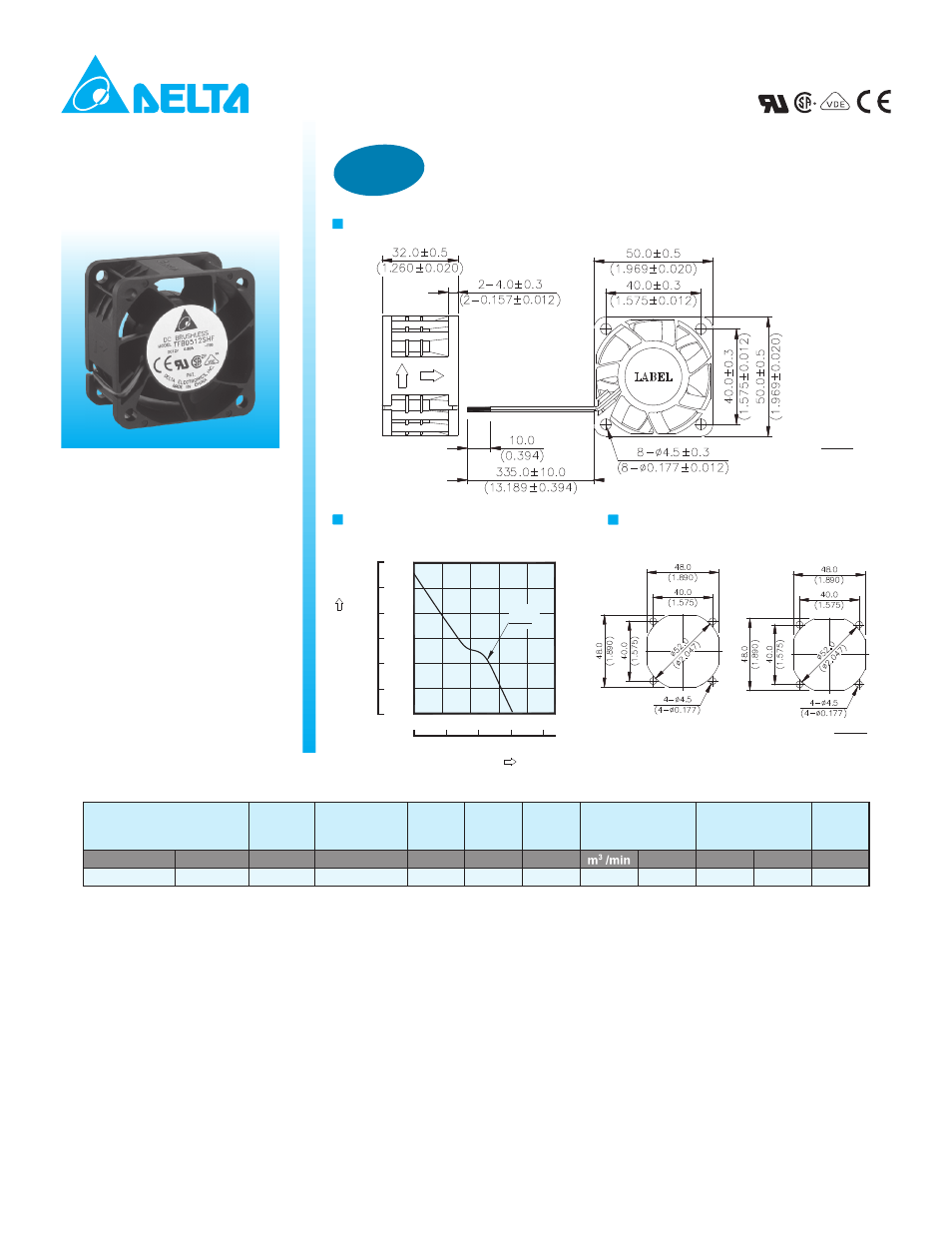

Dimensions drawing, P & q curve, Mounting panel cutout

background image

50 x 50 x 32 MM SERIES

DIMENSIONS DRAWING

mm

(INCH)

UNIT:

P & Q CURVE

(AT RATED VOLTAGE)

MOUNTING PANEL CUTOUT

mm

(INCH)

UNIT:

OUTLET SIDE

INLET SIDE

*

Bearing Type

*

Lead Wires :

*

Weight : 52g (1.83 OZ)

*

Material

Ball Bearings

UL 1061 AWG #24 OR Equivalent
Red Wire Positive(+)
Black Wire Negative(-)

Impeller & Frame : Plastic(UL 94V-0)

Operating

Voltage

Range

MODEL

Rated

Voltage

Maximum

Air Flow

Speed

Maximum

Air Pressure

Noise

TFB0512SHF

-R00 / -F00

12

5.0 to 13.2

0.50

6.00

10000

0.842

29.76

22.32

0.879

51.5

* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
