47

PoE Setting

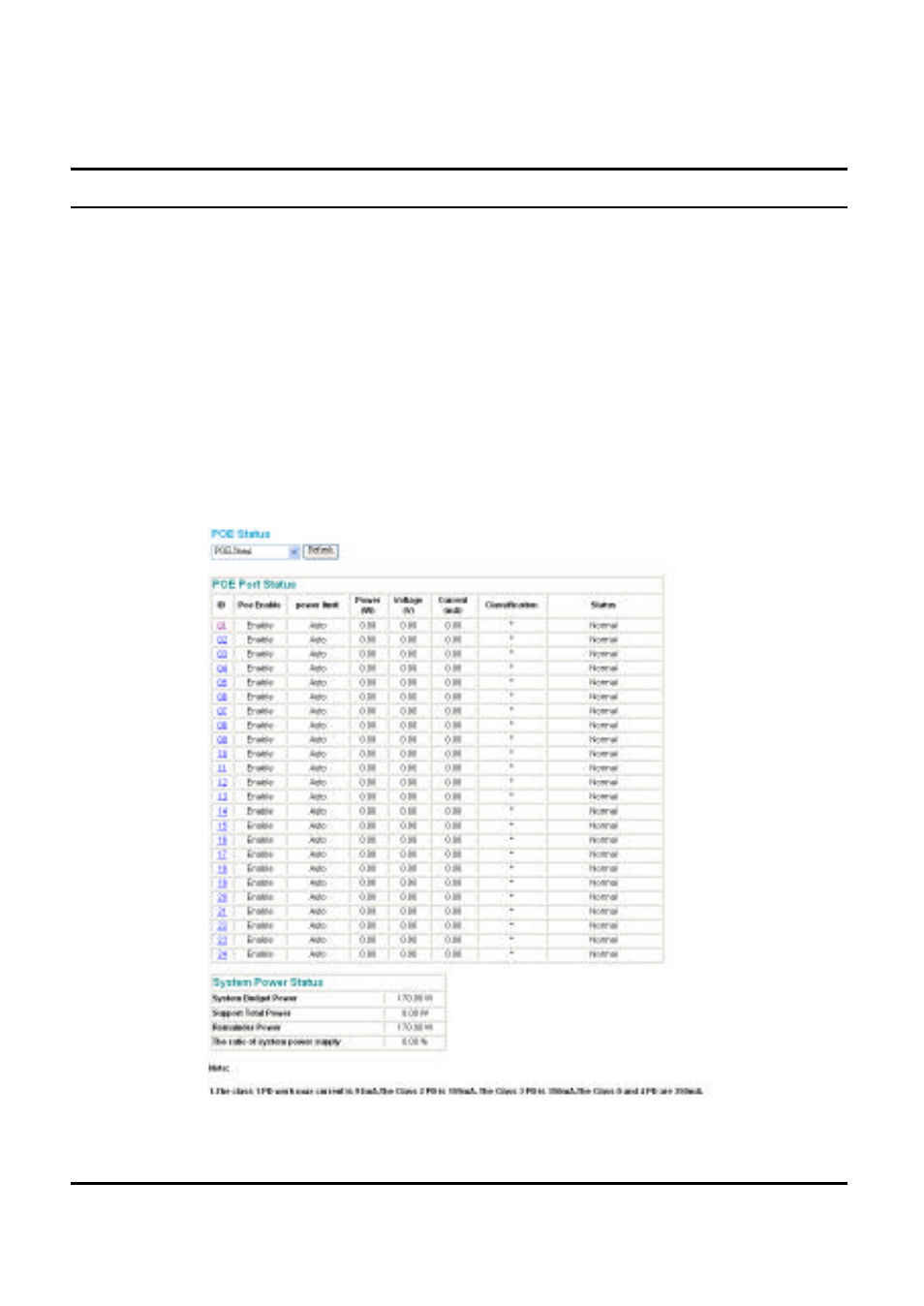

When you click on the PoE Setting, the PoE Status will appear on
the screen. It will display the PoE status including, Port Enable,
Power limit, Power (W), Voltage(V), Current (mA), Classification,
Port status, System Budget Power, Support Total Power,
Remainder Power, and The ratio of system power supply.

Note: The PoE Status information of Power current, Power Voltage,
and Current is the power usage information of the connected PD;
please “Refresh” to renew the information.
