Trunk Setting
The Trunk function enables you to cascade two or more devices
with larger bandwidths.
There are four Trunking groups to be set; and there are default
ports in each member. Checked “Enable” to use the trunk function,
select the ports in each member to be trunk, and click “Apply” to
activate the selected trunk group.

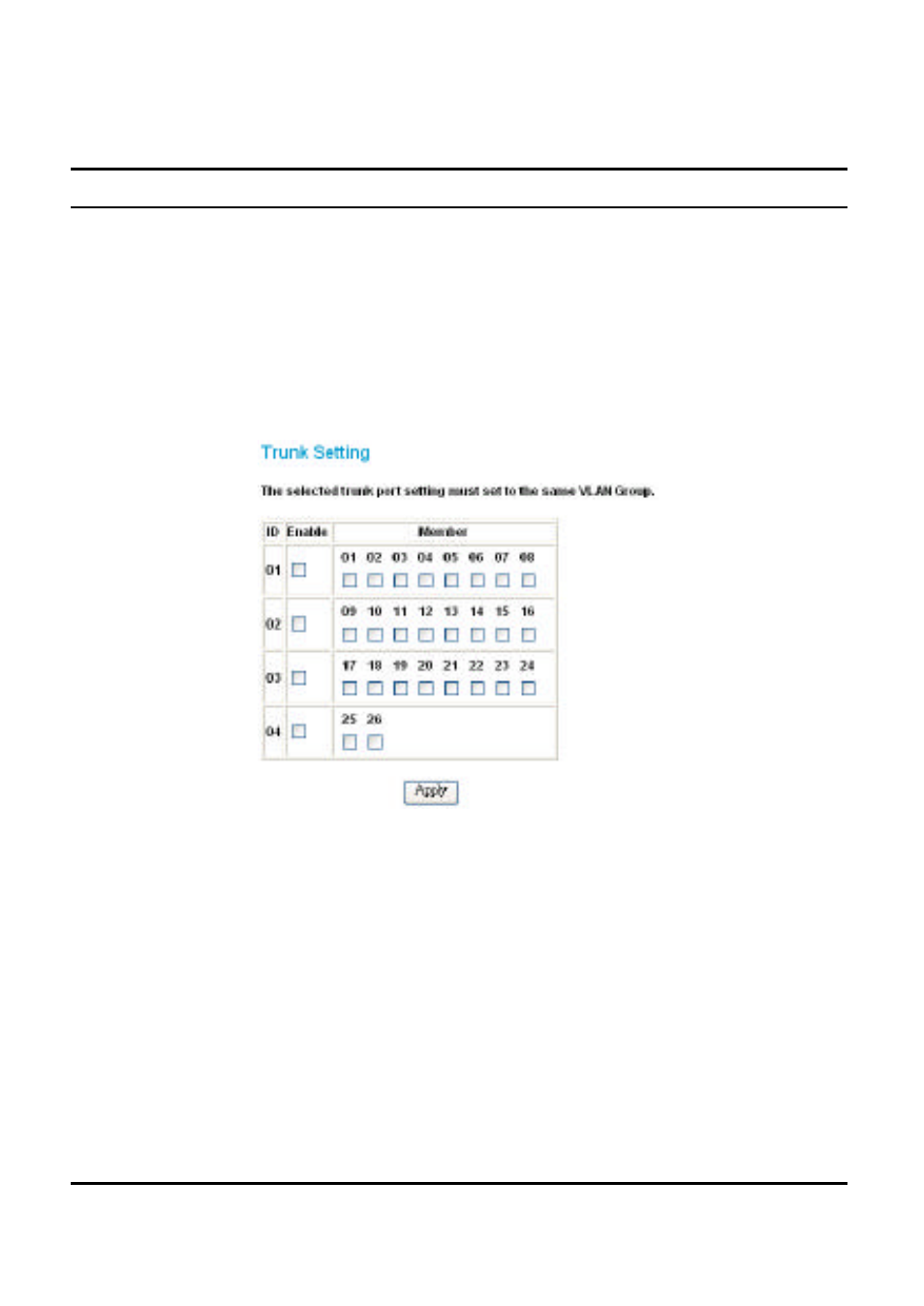

Figure 22. Trunk Settings
Be sure that the selected trunk setting port is connected to the
device with a same VLAN group.
