Adjusting the projected image, Adjusting the projector’s height, Installation – Optoma EX855 User Manual
Page 17
English
7
Installation
Adjusting the Projector’s Height

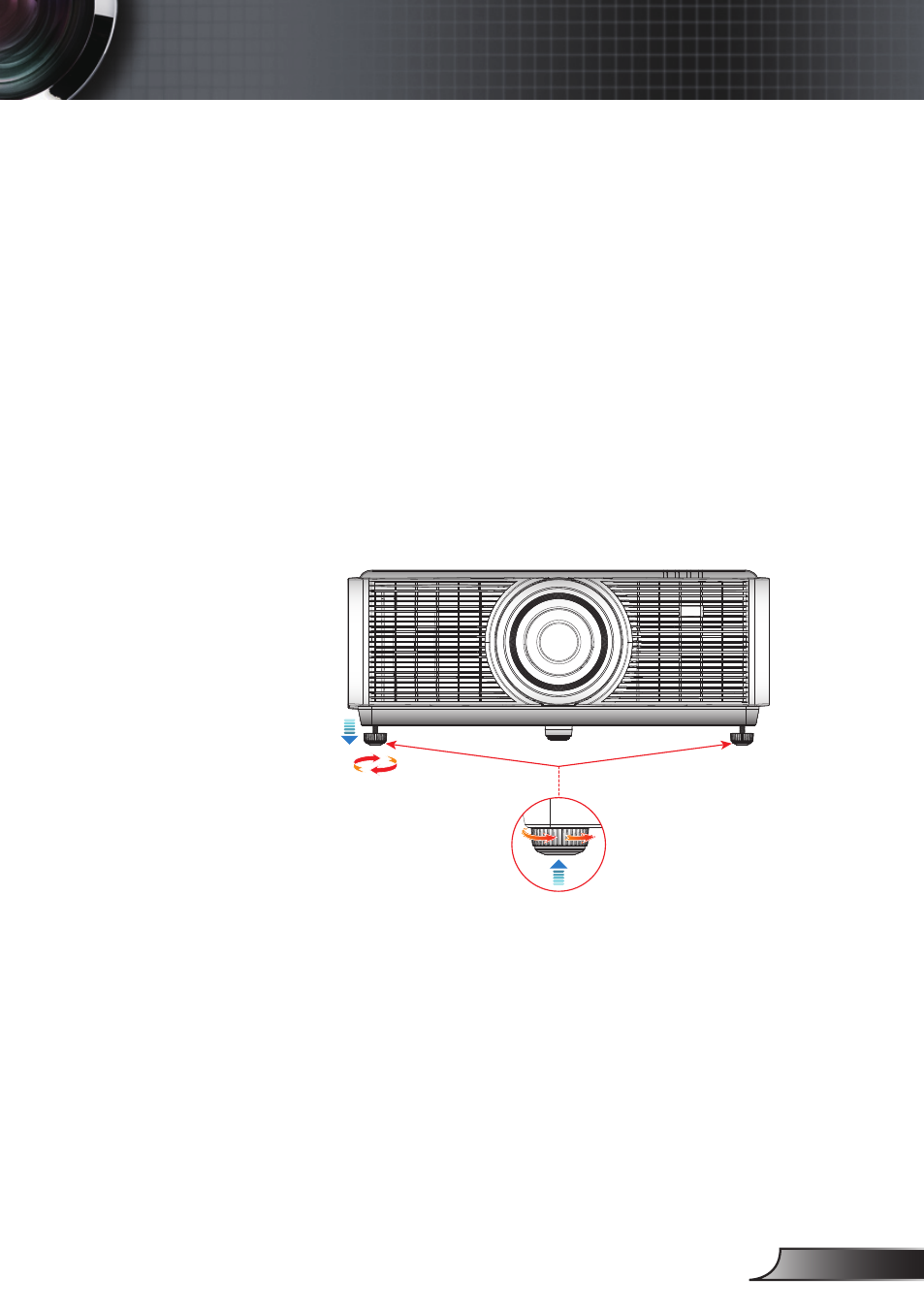

The projector is equipped with elevator feet for adjusting the
image height.
Locate the adjustable foot you wish to modify on the underside of
the projector.
Rotate the adjustable ring clockwise to raise the projector or
counter clockwise to lower it. Repeat with the remaining feet as
needed.
.
2.
Adjusting the Projected Image
Tilt-Adjustment Ring
Tilt-Adjustment Feet
