Installation

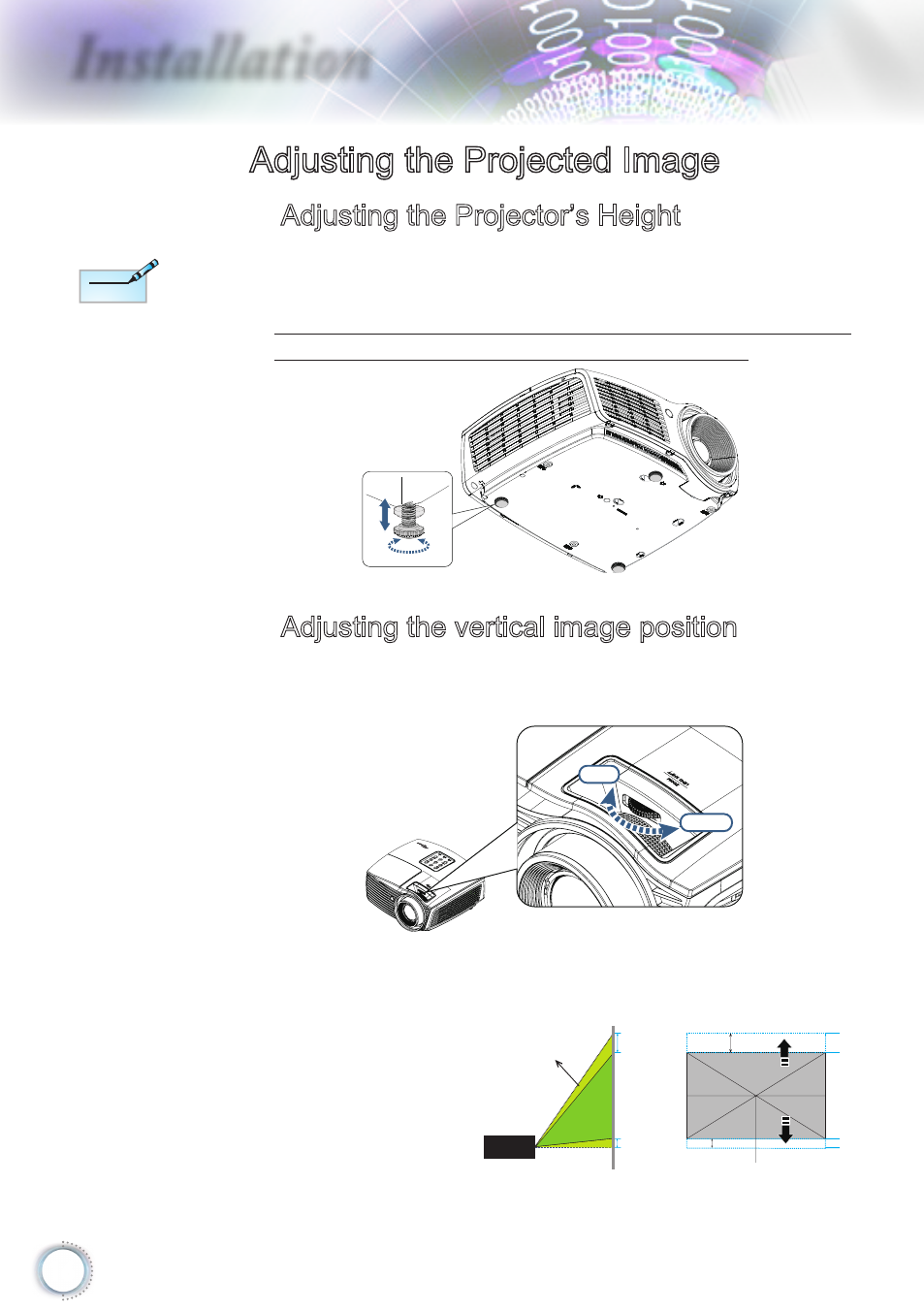

Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with tilt-adjuster feet for
adjusting the image height.
To adjust the angle of the picture, turn the tilt-adjuster right
or left until the desired angle has been achieved.
Adjusting the vertical image position
The Lens Shift function can be used to adjust the
position of the vertically.
Down
UP
Lens shift adjustment for 1080P
The display
position can be
shifted upward up
to 9% and down
to 5% elevation of
the display.
/HQVVKLIWDGMXVWDEOHUDQJH
6KLIWWRWRS
9
9
9
6KLIWUDQJH
/HQVVKLIWFHQWHUSRVLWLRQ
6KLIWUDQJH
N
ote
N
ote
• The projector
table or stand
should be
level and
sturdy.
• Position the
projector
so that it is
perpendicular
to the screen.
• For personal
safety, please
secure
the cables
properly.
