DS_E48SB9R625_05222008 4

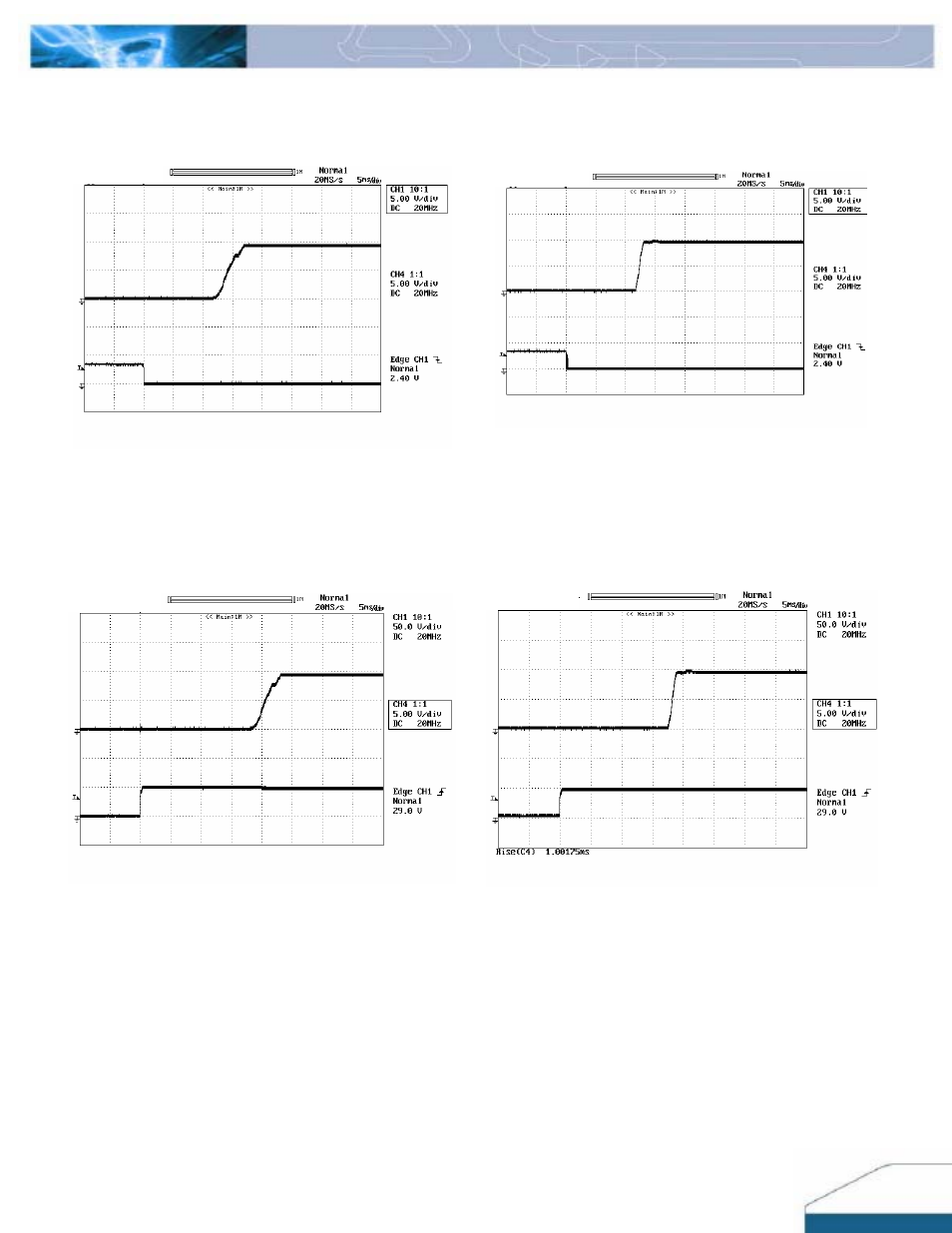

ELECTRICAL CHARACTERISTICS CURVES
For Negative Remote On/Off Turn on Waveform
Figure 4: Turn-on transient at full rated load current
(5 ms/div). Top Trace: Vout; 5V/div; Bottom Trace: ON/OFF
input: 2V/div
Figure 5: Turn-on transient at zero load current (5 ms/div). Top
Trace: Vout: 5V/div; Bottom Trace: ON/OFF input: 2V/div
For Vin Input Turn on Waveform
Figure 6: Turn-on transient at full rated load current
(5 ms/div). Top Trace: Vout; 5V/div; Bottom Trace: Vin;
50V/div.
Figure 7: Turn-on transient at zero load current (5 ms/div). Top
Trace: Vout: 5V/div; Bottom Trace: Vin; 50V/div.
