Mechanical drawing – Delta Electronics Series 240W User Manual
Page 10
DS_E48SB9R625_05222008
10

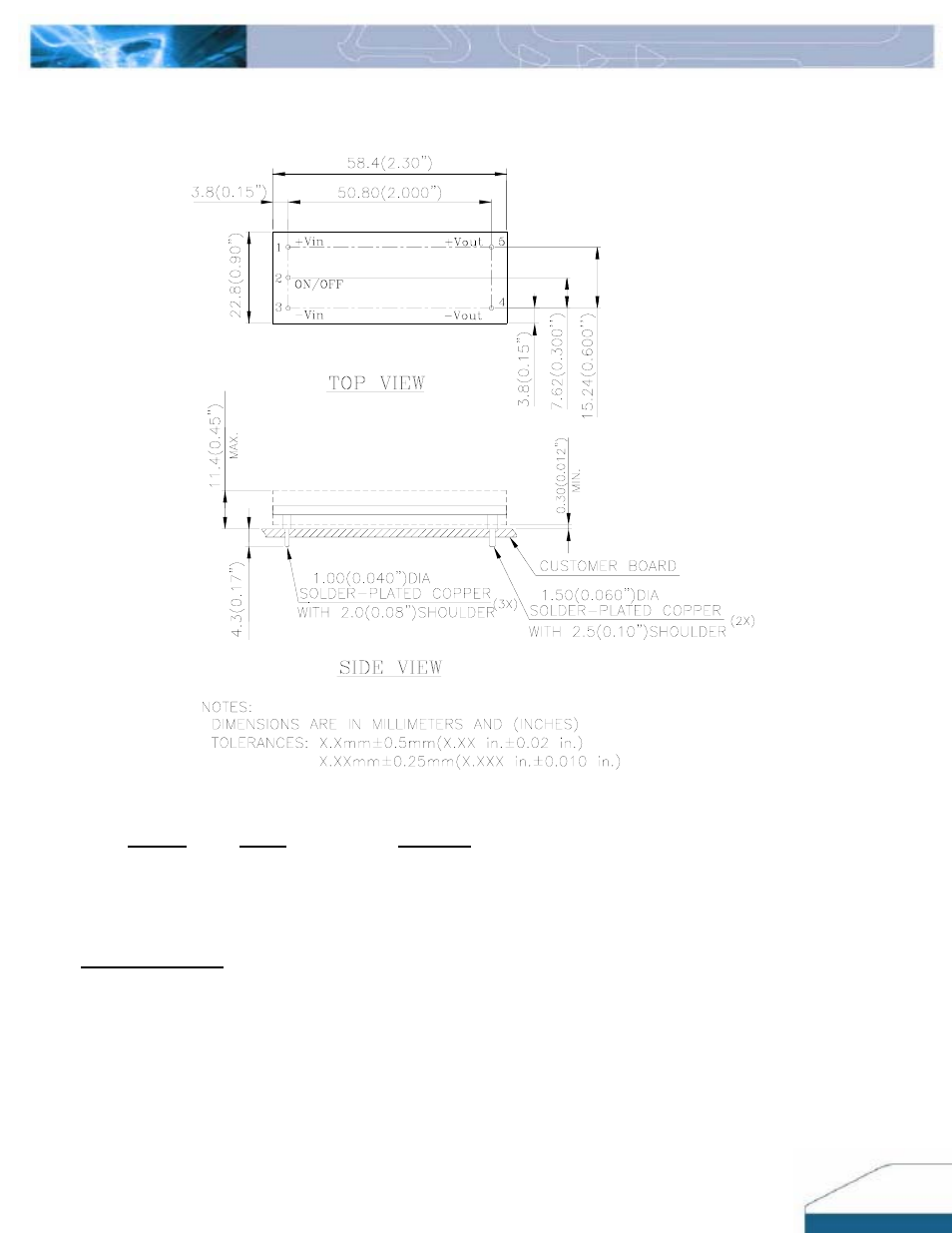

MECHANICAL DRAWING
Pin No. Name
Function
1
2
3
4
5
+Vin
ON/OFF
-Vin
-Vout
+Vout
Positive input voltage
Remote ON/OFF
Negative input voltage
Negative output voltage
Positive output voltage
Pin Specification:
Pins 1-3 1.0mm (0.040”) diameter
Pins 4-5 1.5mm (0.060”) diameter
All pins are copper with Tin plating (Pb free)
