19
FORM NO. L-20150-V-1112
ITEM DESCRIPTION QTY
1 Housing 1
2 1 Ball Bearing 2
3 Retaining Ring (Int.) 2
4 Drive Disc 1
5 Retaining Ring (Int.) 1
6 Retaining Ring (Ext.) 2
7 2 Flat Head Machine Screw 12
9 Splined Disc 1
11 2 Friction Facing 2
12 Air Chamber 1
13 Socket Head Cap Screw 8
14 1 O-ring Seal 1
15 1 O-ring Seal 1
16 Piston 1
ITEM DESCRIPTION QTY
17 3 Spring Pin 1
18 3 Retaining Ring (Int.) 2
19 1 Ball Bearing 2
20 Male Pilot 1
21 1 O-ring Seal 1
22 1 O-ring Seal 1
23 Stub Shaft 1
24 Retaining Ring (Ext.) 1
25 Key (Not Shown) 1
26 Female Pilot 1
27 Socket Head Cap Screw 4
29 Socket Head Cap Screw (Not Shown) 4
30 Lock Washer (Not Shown) 4
31 Set Screw 1
32 Plug 1
1 Denotes Repair Kit item.
Repair Kit No. 801604.
6
3
2
4
7
7
11
9
11
12
13
14
5
1
26
15
16
17
2
3
6
23
19
18
22
21
20
18
19
24
13

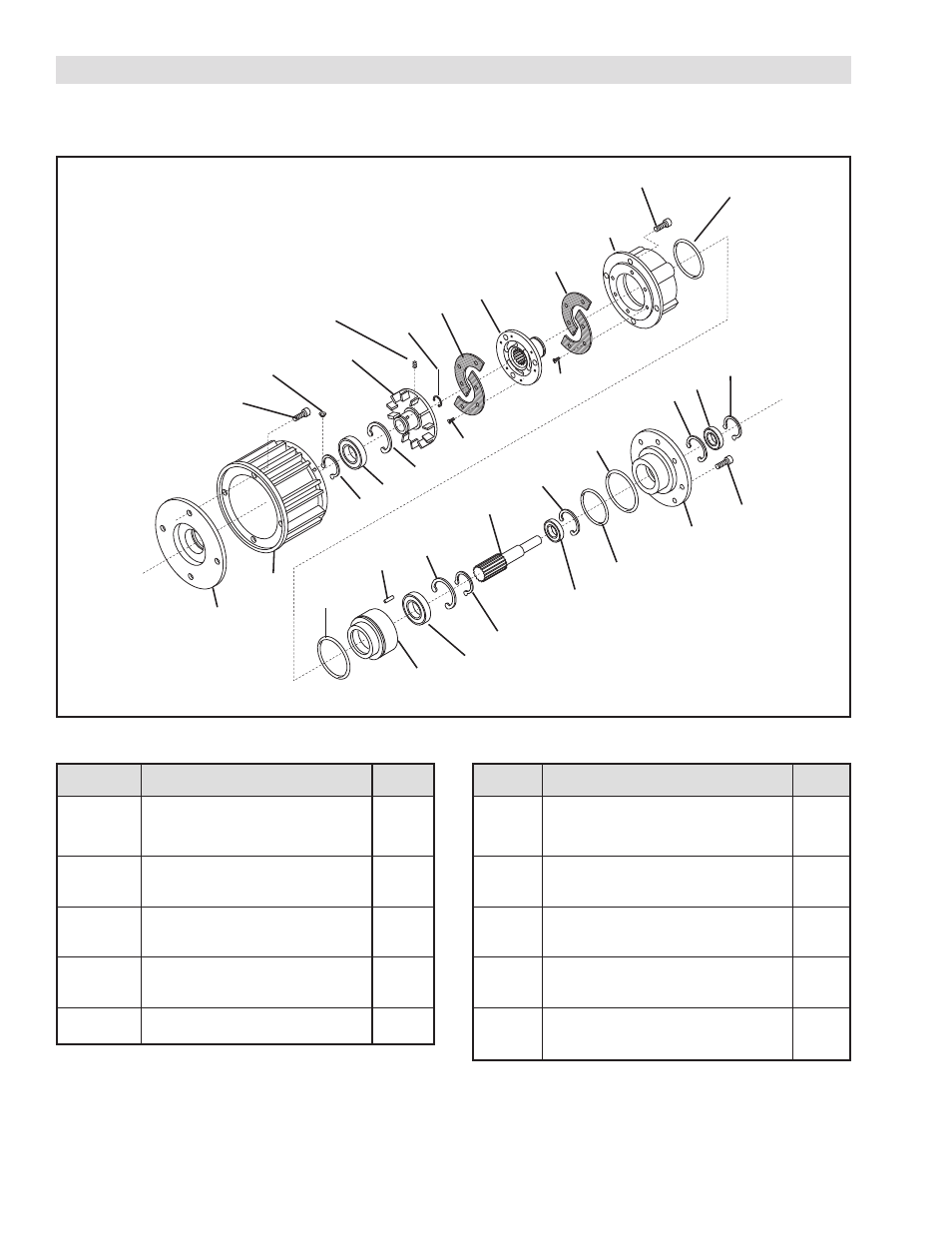

FIGURE 22
27
32
31
2 Denotes Facing Kit item.
Facing Kit No. 801605 (two kits required per unit).
3 Items 17 and 18 are part of sub-assembly #20.
PARTS LIST
FMCBE-1125
