MagnaFlow VOLKSWAGEN GOLF Stainless Cat-Back System PERFORMANCE EXHAUST - Manual

Mufflers, Converters,
Systems and Tips
INSTALLATION INSTRUCTIONS
15156
2012 Volkswagen Golf R 2.0L
Warning: When working on, under, or around
any vehicle exercise caution. Please allow the
vehicle's exhaust system to cool before removal,
as exhaust system temperatures may cause
severe burns. If working without a lift, always
consult vehicle manual for correct lifting
specifications. Always wear safety glasses and
ensure a safe work area. Serious injury or death
could occur if safety measures are not followed.
** Magnaflow Performance Exhaust recommends professional
installation on all their products
Magnaflow Performance Exhaust - 22961 Arroyo Vista Rancho Santa Margarita, CA 92688
Main #: 1-800-990-0905 Technical Support: 1-800-959-9226 ext 4500
Jun 13, 2012
Rev: 000
Step 1:(Carefully read all instructions before
installation) Loosen the OEM clamp rearward
of the catalytic converter. Disengage the
welded hangers from the rubber insulators. The
rear portion of the OEM system can now be
removed. Retain all mounting hardware as it
will be needed to mount your new system.
Step 2: Begin installation of your new
MAGNAFLOW performance exhaust system by
first inserting the inlet of the muffler assembly to
the outlet pipe of the catalytic converter using
the OEM clamp. Slip the inlet of the tail pipe
assembly over the outlet of the muffler
assembly. Locate the welded hangers to the
rubber insulatprs and loosely secure using the
supplied clamp
Step 3: With all components mounted loosely,
adjust the system for overall aesthetics and
clearance of frame & bodywork. (MAGNAFLOW
recommends at least 1/2" of clearance between
the exhaust system and any body panels to
prevent heat-related body damage or fire.)
Step 4: Once a final position has been chosen
for the new system, evenly tighten all fasteners
from front to rear. The supplied band clamps
must be VERY tight to properly align the pipes
and prevent leaks (Approximately 40ft-lbs).
Inspect all fasteners after 25-50 miles of
operation and retighten if necessary.

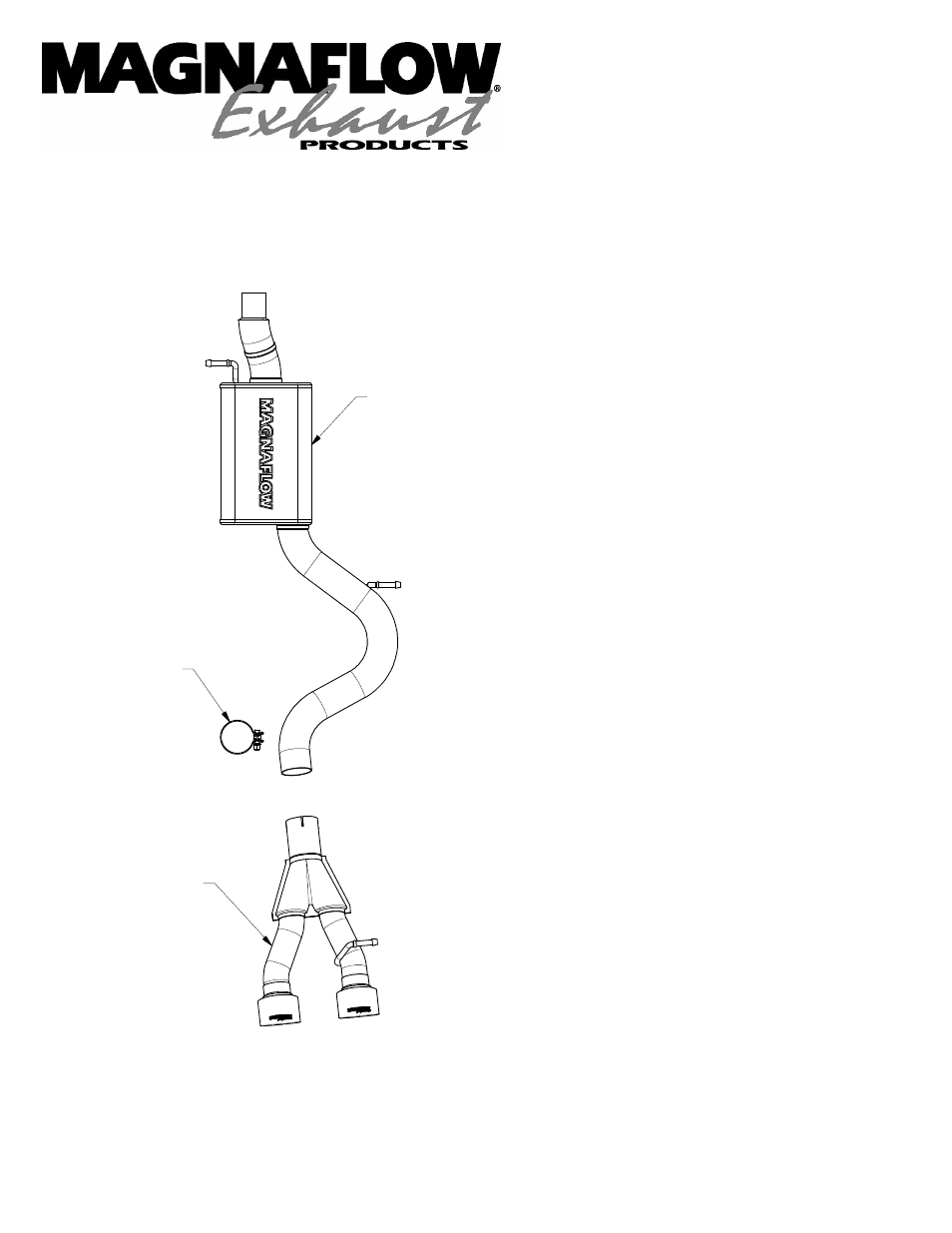

Muffler Sub Assy.
Tail Pipe Assy.
2.50" Clamp
