Fluke 787 - Manual (Page 30)

787
Users Manual
22
OFF
A mA COM V
1000 V
30mA
FUSED 0.44A
(1A /30 sec)
FUSED
mA
mA
A
mA
OUTPUT 0-24mA
SOURCE SIMULATE + +
% STEP COARSE FINE
mV
V
V
OUTPUT
CAT
787 PROCESSMETER
MI N MAX RA N GE HOLD H
REL Hz
ee010f.eps

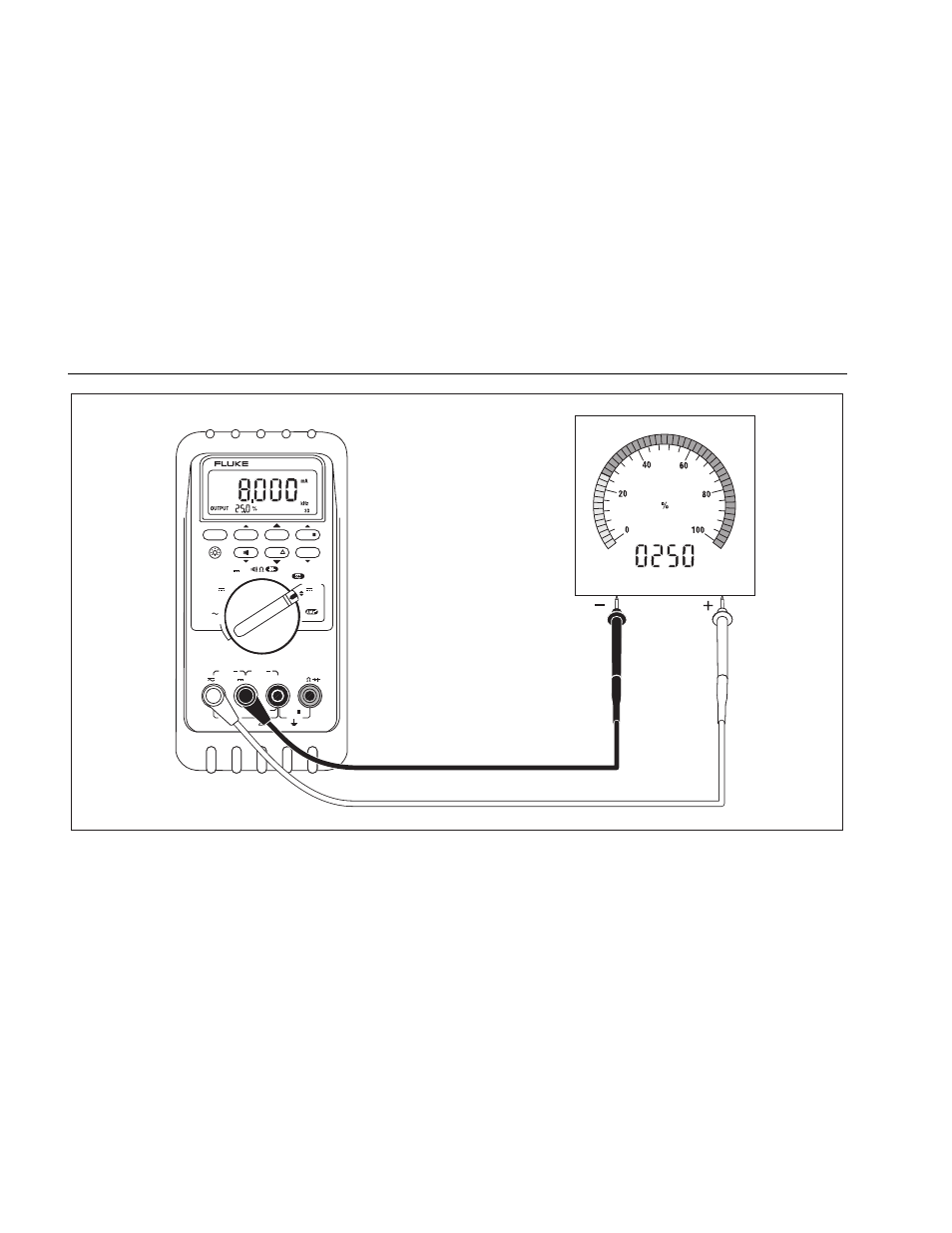

Figure 7. Sourcing Current
