ProcessMeter™
Getting Acquainted with the Meter
13
2
3
1
5
4
6
7
8
MIN MAX
RANGE
HOLD
H
REL
Hz
% STEP
COARSE
FINE
ee003f.eps

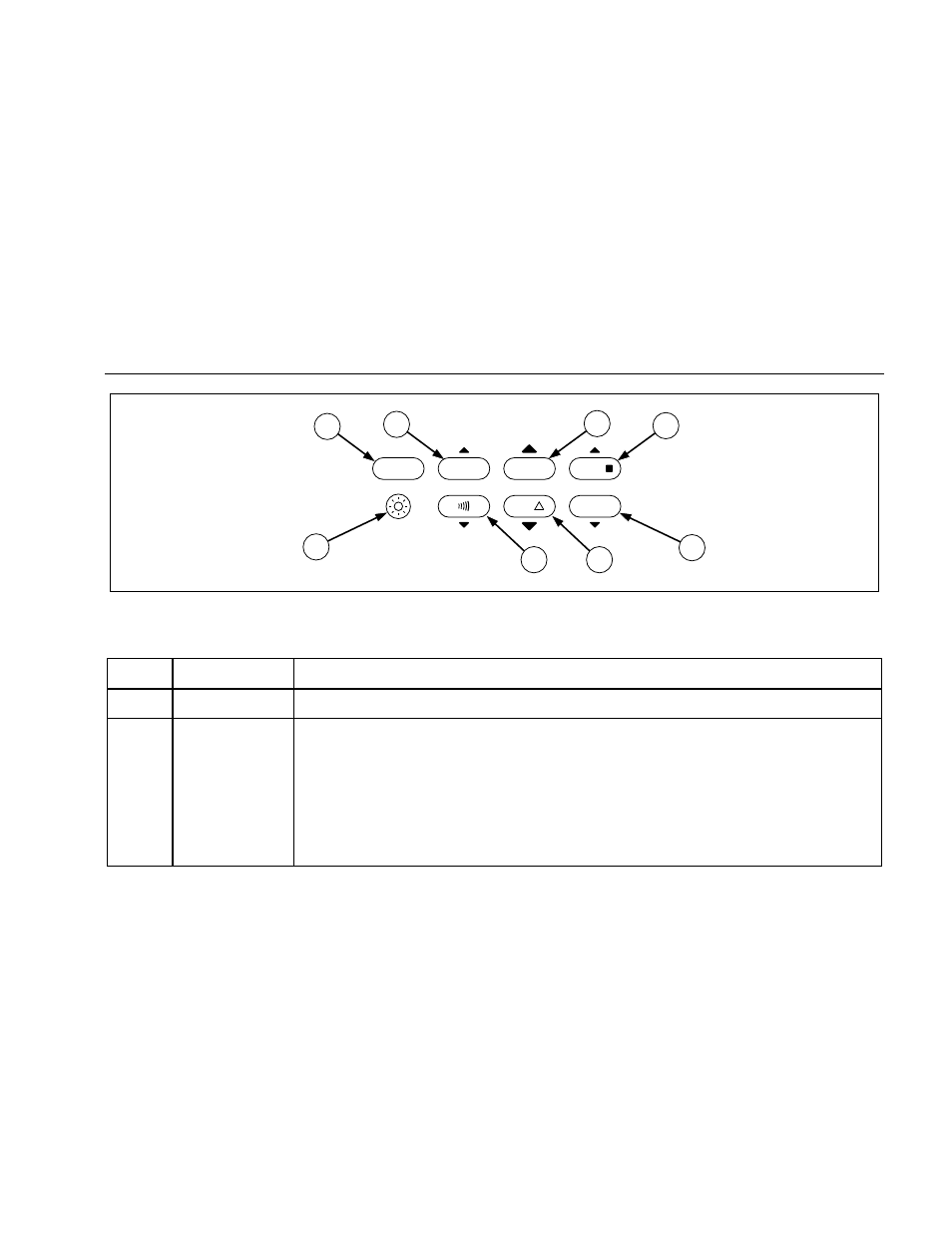

Figure 5. Pushbuttons
Table 5. Pushbuttons
No. Pushbutton
Function(s)
b
Toggles the backlight
U
(BLUE)
Rotary switch in mA A Lposition and test lead plugged into c A jack: Toggles
between ac and dc ampere measure
Rotary switch in O position: Selects diode test function (D)
Rotary switch in OUTPUT mA Jposition: Cycles through
•
Slow repeating 0 % -100 % - 0 % ramp (Eon display)
•
Fast repeating 0 % -100 % - 0 % ramp (P on display)
•
Repeating 0 % -100 % - 0 % ramp in 25 % steps (N on display)
