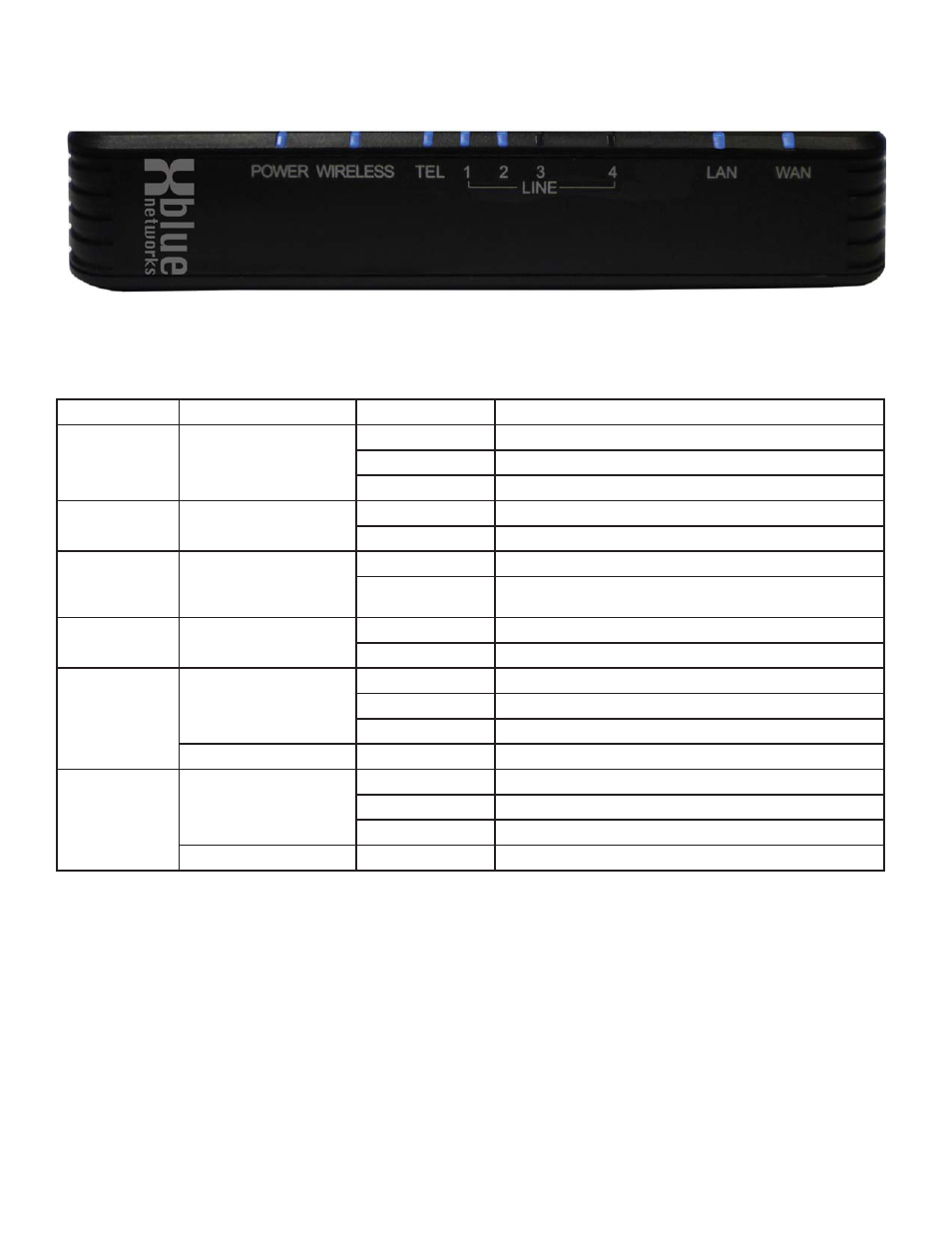

LED Lights on the
X
-25
Table 2.4 LED Functions
LED Name
LED Color
System Status
Description
Power
Blue
On
Power is on and system is operational
Off
Power and system is off
Flashing
The system is rebooting
Wireless
Blue
On
Wireless LAN initialization successful
Off
Wireless LAN is not operational
“TEL” Port
Cordless
Phone
Blue
On
“TEL” port is off hook and busy
Off
“TEL” port is on hook (idle) or not connected
Line 1 - 4
Blue
On
Telephone Line is off hook and busy
Off
Telephone Line is on hook (idle) or not connected
LAN
Blue
On
LAN Port is connected and operational
Off
LAN is disabled
Flashing
Data activity is passing through the system
Red
On
LAN is not connected or has failed
WAN
Blue
On
WAN Port is connected and operational
Off
WAN is disabled
Flashing
Data activity is passing through the system
Red
On
WAN is not connected or has failed
