飞控与ahrs安装 flight controller and ahrs assembly – XAIRCRAFT X650 Value User Manual
Page 12

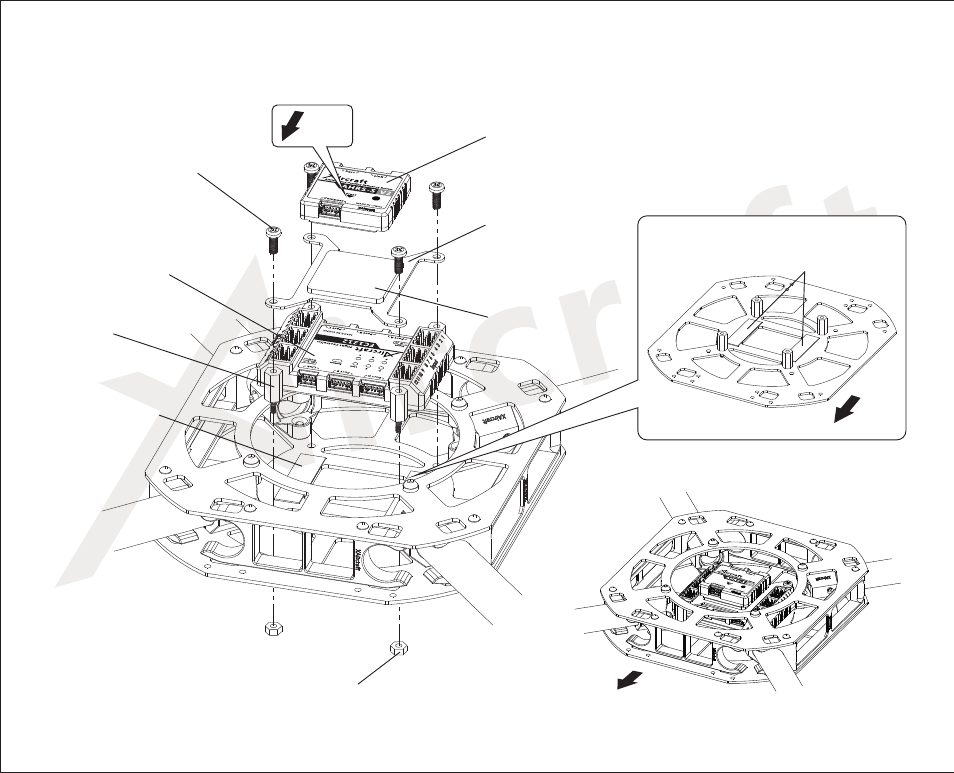

飞控与AHRS安装 Flight Controller and AHRS Assembly
10
www.xaircraft.com
前方
Front
E1 - E1001
XAircraft FC1212 飞行控制器
XAircraft FC1212 Flight Controller
E1 - E1003
减震海绵(10 35
mm)
Shock Absorber Sponge
(10x30x0.5mm)
x
x0.5
E2 - E1004
XAircraft AHRS-S V2 姿态传感器
XAircraft AHRS-S V2 Attitude and
Heading Reference System
E2 - E1005
减震海绵(30
mm)
Shock Absorber Sponge
(30x30x2mm)
x30x2
M - M3007
尼龙支柱
M3x12 Nylon Pillar
×4
M3x12
F1 - F3004C
AHRS固定板
AHRS Mounting Plate
M - M3006
M3×8 尼龙螺丝
M3×8 Nylon Screw
×4
M - M3009
尼龙螺母
M3 Nylon Nut
×4
M3
前方
Front
E1 - E1003
减震海绵(10 35
mm)
Shock Absorber Sponge
(10x30x0.5mm)
x
x0.5
注意安装位置
Note the installation location
前方
Front
