施力点
Force Point
施力点
Force Point
安装步骤 STEPS
压入横杆时注意用力，以免损坏。
Assemble landing gear pipe carefully
to avoid damage.

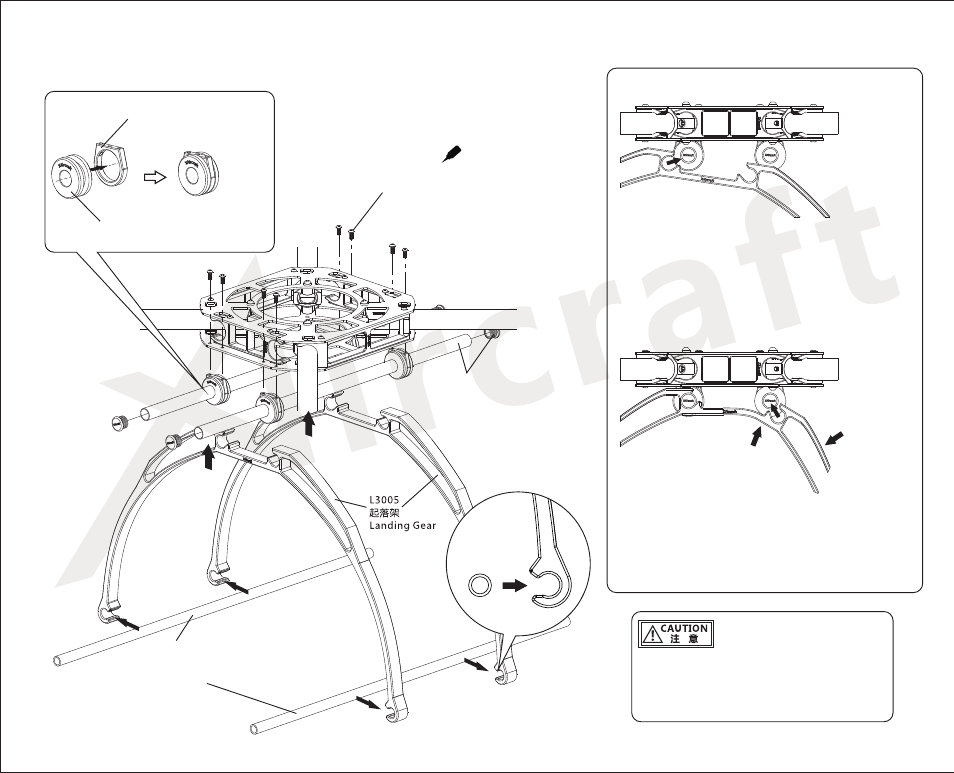

起落架安装 Landing Gear Assembly
M - M3001 ×8
M2.5×6 圆头内六角螺丝
M2.5×6 Socket Screw
9
步骤1 Step1
先扣入一边的挂载杆，扣入时注意用力，避免损坏。
Assemble one side. DO NOT OVER-EXERT TO AVOID
DAMAGE.
步骤2 Step2
免损坏起落架。
Bend the other side of landing gear as shown in the
figure, and assemble it.
弯曲起落架，将另一边也扣入挂载杆。弯曲时注意用力，以
L3002C
挂载杆
Load Mounting Pipe(with Cork)
L3001C
起落架横杆
Landing Gear Skid Pipe
www.xaircraft.com
L3003
挂载杆固定件
Load Mounting Pipe Mount
L3004
挂载杆固定胶
Load Mounting Pipe Fixer
