WebDT DT166 User Manual
Page 2
DT166
ENGLISH
2
3
ENGLISH
THE DT166
Powering ON and OFF
The Power Button is located in the front of the DT166. The Power Button may be configured to
function differently depending on the power options of the operating system. In general, to turn the
DT166 on, push and release the Power Button on the front bezel. The adjacent power LED will be lit
(blue) and the corresponding interface will be displayed on the display monitor.
To turn off the device, again depending on software operating system, push and release the Power
Button or use a software shutdown interface. In the event of system lockup, the Power Button may
be used to perform a reset on the device. To do that, push and hold the Power Button for at least 4
seconds. The system will shut down and all unsaved work may be lost. Pushing on the Power Button
again will restart the device.
Device Ports
The DT166 features an optimal set of I/O ports while preserving the compact size of the structure.
The VGA, Network (10/100 BaseT Ethernet), and Power ports are supplemented by a set of four (4)
USB 1.1 (GX) or USB 2.0 (LX) and Audio ports.
Memory and Storage
The DT166 may be available in memory configurations ranging from 64MB of flash memory to 8GB
of flash. Depending on base software configuration, the user may use the internal flash memory of
the DT166 for user’s installed software and storage. The user may also supplement storage space
with USB-based peripherals such as flash disks, disk drives, etc. RAM capacity ranges from 128MB
to 1GB, depending on the processor platform (LX or GX).
VESA Mounting Bracket Installation Guide for DT166
It is quite simple to mount the DT166 to VESA adapters or LCD monitors using the external
mounting bracket.
OPTIONS
The DT166 is designed to work with a range of custom and off-the-shelf options to enhance its
applicability for various deployments.
USB-to-Serial and USB-to-PS/2 adapters
•
Bracket and Cable for Internal Hard Disk Drive (HDD) Mounting
•
Internal (LX, miniPCI) and External (GX, USB) wireless LAN (WLAN) adapters
•
Short VGA cable for connection to mounted display
•
External bracket for mounting the DT166 to VESA adapters and LCD monitors (see mounting
•
process above)
Precautions
Always exercise care when operating and handling the DT166.
•
Never disassemble any portion of the enclosure. It will void any product warranty on the DT166.
•
Do not use any AC/DC adapter other than the one provided with the device or acquired from the
•
manufacturer or its partners.
In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately power
•
down the DT166 and disconnect all power sources. Please report the problem to your device
provider immediately.

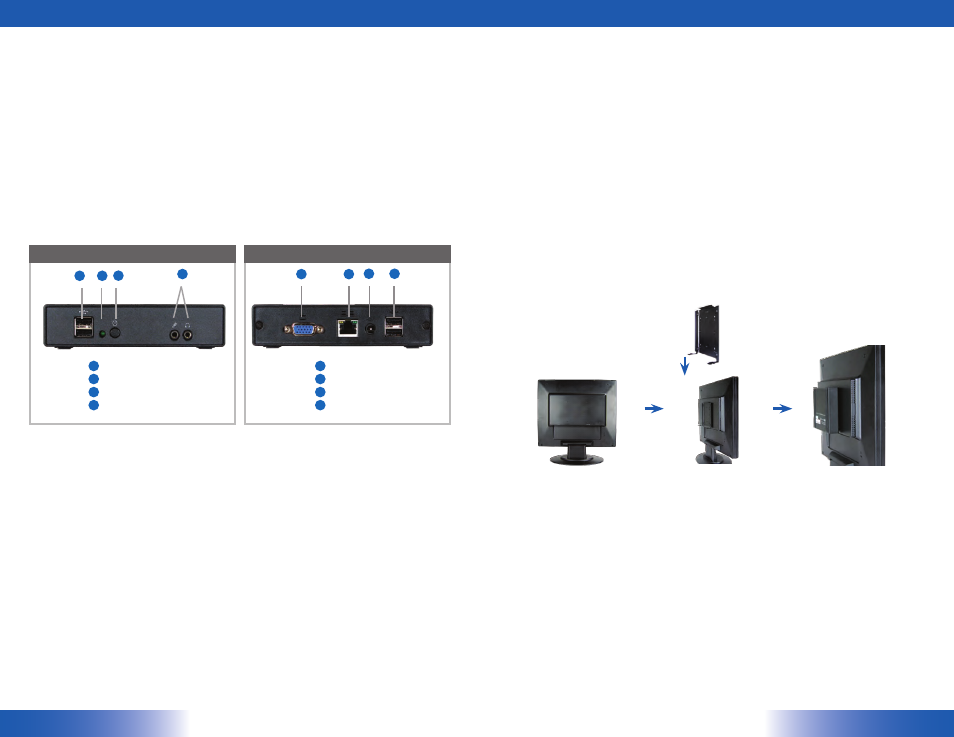

Rear View
Front View
A
B
C
D
D
H
F
E
G
H
A
E
B
F
C
G
USB ports
Power Indicator
Power button
Audio jacks
VGA
Ethernet port
DC-in
USB ports
