DT430SC
ENGLISH 2 3 ENGLISH

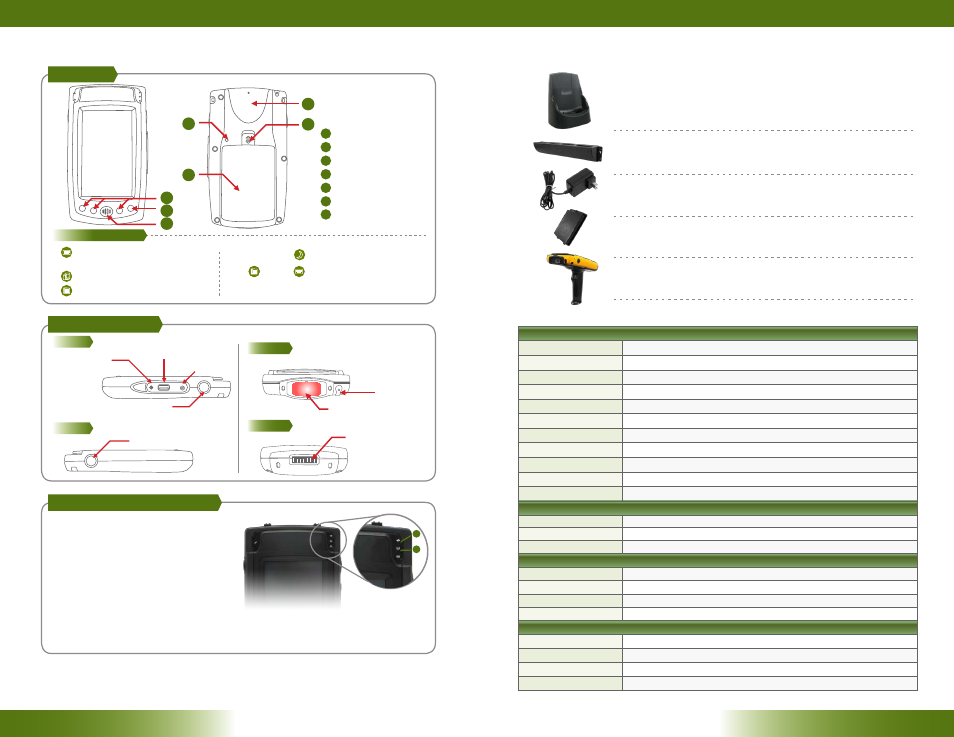

ACCESSORIES:
Right
Top
Left Bottom
A
C
B
Programmable buttons
Suspend/ Resume
Speaker
Power button
Battery
Battery pack switch
RFID reader (optional) A
B
C
D
E
F
F
Enable/ disable soft
keyboard (Programmable)
Programmable
System Utility Suspend/ Resume
Touch screen calibration
D
E
F
G
Cradle connector
Scanner sensor (optional)
Stylus
Scanner trigger button
Scanner trigger button
Audio jack
DC-in
USB 1.1 host
DT430SC
DT430SC I/O Ports
DT430SC LED Status Indicators
1. Power Mode Status Indicator:
2. Wi-Fi Status Indicator:
Blue: Device is powered on •
Blinking Blue: Main battery charging •
Orange: Low battery mode •
Blinking Orange: Extremely low battery •
mode
Off: Device is powered off or in suspend •
mode
Blue: The device has been connected to a wireless AP •
Blinking blue: The device is connecting to a wireless AP •
Off: Wi-Fi is disabled •
1
2
Charging Cradle PN: ACC-400-01
Desktop cradle with rear pocket battery charger and data synchronization
with PC via USB port.
Input: 100 - 240V AC; output: 5V DC, 3A.
Battery PN: ACC-400-04
Hot-swappable, rechargeable Li-Ion battery 3760mAh, 3.7V (14 Watt-hour).
Trigger Grip PN: ACC-400-05
For single handed operation to trigger scanner or other functions
conveniently.
4-bay Gang Charger PN: ACC-430-02
Wall mountable charger, capable of charging up to 4 handhelds
simultaneously.
AC-DC Adapter PN: ACC-400-03
Used to charge handheld battery, and pass through power for charging
cradle.
+ Hold press
Button Functions
SPECIFICATIONS
System
Processor ARM 800 MHz
RAM 512MB
Storage 4GB Flash
Operating System Microsoft® Windows® CE 6.0 or Windows® Mobile 6
Display 4.3” TFT-LCD with resistive touch; outdoor-viewable display
Display Resolution 272 x 480 (WQVGA)
Network Interface Built-in IEEE 802.11a/b/g/n WLAN, Bluetooth 2.1 with EDR
Control Switch and Buttons 1 power button; 4 front buttons; 2 trigger buttons
Indicator
1 power-on LED indicator, 1 WLAN enable/ communication indicator
Speaker/ Microphone Built-in speakers; 1 mono microphone
Input/Output Ports 1 headset jack, 1 USB 1.1 host, 1 cradle interface (USB2.0 and charging), 1 DC-in jack
Power
AC/DC Adapter Input: 100 – 240V AC; Output: 5V DC, 3A
Backup Battery 180 mAh
Battery Type Li-ion battery 3760 mAh, 3.7V
Mechanical
Enclosure PC+ABS, TPR
Stylus Non-electronic tip
Dimensions (H x W x D) 6.3 x 3.4 x 1.2 in/ 160 x 86 x 30 mm
Weight 0.9 lbs/ 415 g
Environmental
Regulatory FCC Class B, CE, C-Tick, UL, CB, RoHS compliant
Water and Dust Resistance System: IP54; Front Panel: IP65
Operating Temperature
Operation: 0°C - 40°C; Storage: -20°C - 60°C
Humidity 0% - 90% non-condensing
* Specifications subject to change without notice.
