WebDT Wall/ Vehicle Mount Cradle User Manual
Page 2

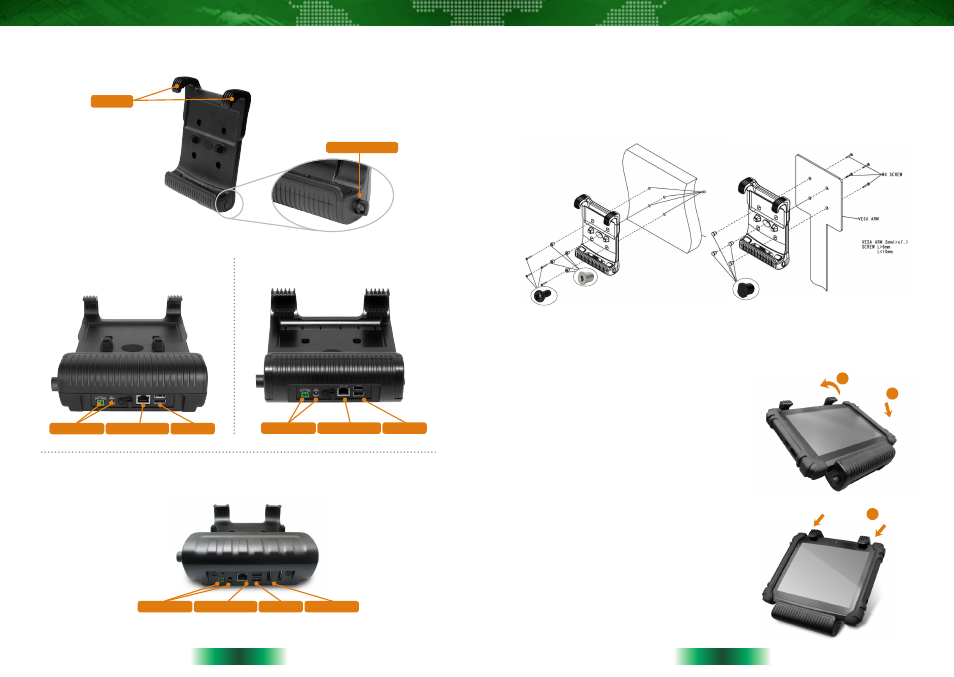

Top Clasp
USB Ports
USB Ports DisplayPorts
USB Ports
Ethernet Port
Ethernet Port
Ethernet Port
Input Power
Input Power
Input Power
Slide-Lock Button
OPERATION
Mounting the Cradle
The Mobile Tablet Wall/ Vehicle Mount Cradle supports VESA standard mounting options
(75 mm x 75 mm). Mount the cradle on either the wall or on a VESA arm.
NOTE: If your stand or arm is 100 x 100 VESA, the VESA Conversion Bracket is needed.
Please place the VESA Conversion Bracket on the back side of the Cradle, and apply the
four M4 screws.
DT395
Wall/ Vehicle Mount Cradle Bottom-view
DT315/ DT365
Wall/ Vehicle Mount Cradle Bottom-view
DT311/ DT313/ DT398
Wall/ Vehicle Mount Cradle Bottom-view
Inserting the Mobile Tablet in the Cradle
1. Insert the bottom part of the Mobile Tablet
into the cradle first with the connector parts
correctly lined up.
2. When the bottom of the tablet is in place, push
the tablet against the back and into the cradle.
2
3
M4 SCREW
BUSH
NUT
Bottom-View Layout
Front-View Layout
3. Push down on the Top Clasp so the top portion
of the cradle slides down and locks into the
locked-down position.
3
1
2
