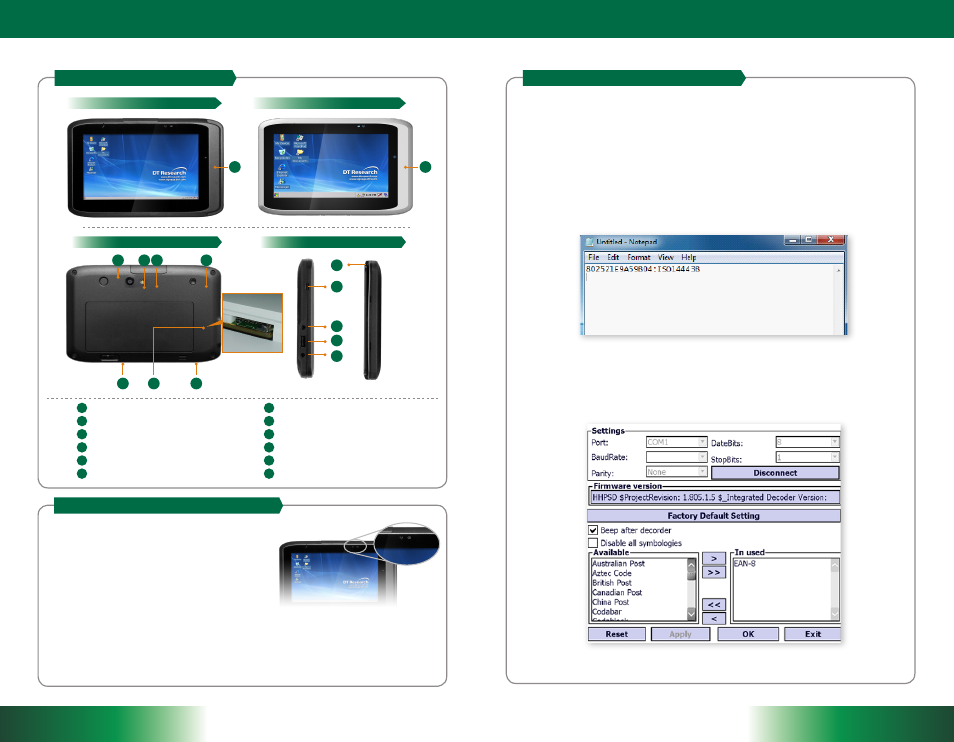

DT307SC/ DT307SC-MD

ENGLISH

2

3

ENGLISH

If your DT307SC/ DT307SC-MD comes with a data capture module(s), you may refer the
content below to configure the settings.

BASIC MODULE OPERATION

3 steps to capture the data results from Keyboard Wedge:

Connect module from

1.

Keyboard Wedge

Launch

2.

NotePad

Capture the data

3.

Verify the result

4.

ADVANCED SETTINGS - BARCODE SCANNER

Setup the symbologies, Scanner reading, or return the setup to factory mode:

Launch Scanner configuration from

1.

Start> Settings> System> Scanner Configure

Press

2.

Connect

NOTE: Please disconnect scanner from Keyboard Wedge first.

DT307SC/ DT307SC-MD I/O Ports

DT307SC/ DT307SC-MD LED Status Indicators

1. Power Mode Status Indicator:

2. Wi-Fi Status Indicator:

Blue: Device is powered on

Blinking Blue: Main battery charging

Orange: Low battery mode

Blinking Orange: Extremely low battery mode

Off: Device is powered off or in suspend mode

Blue: Connected to a wireless AP

Blinking blue: Connecting to a wireless AP

Off: Wi-Fi is disabled

A

G

B

H

C

I

D

J

E

K

L

F

Magnetic stripe reader
Trigger button
Camera (Optional)
Flashlight (Optional)
Power button
Battery switch

Micro-SD card reader
Speaker
mini USB port
Headphone-out
USB 2.0 port
DC-in

DT307SC Front View

DT307SC-MD Front View

DT307SC/ DT307SC-MD Side View

DT307SC/ DT307SC-MD Rear View

A

A

C D

E

F

G

H

B

I

A

J

K

L

Data Capture Module Operation Guide
