Vortech 2005-2009 Ford 4.6L 3V Mustang GT Air-Air Cooler - Manual (Page 30)

P/N: 8N020-160
© 2008 Vortech Engineering
All Rights Reserved, Intl. Copr. Secured.
29DEC08v1.0(8N020-160v1.0)
22
3F. COMPRESSOR BYPASS VALVE #1 INSTALLATION
(2007-2009 Models Only)

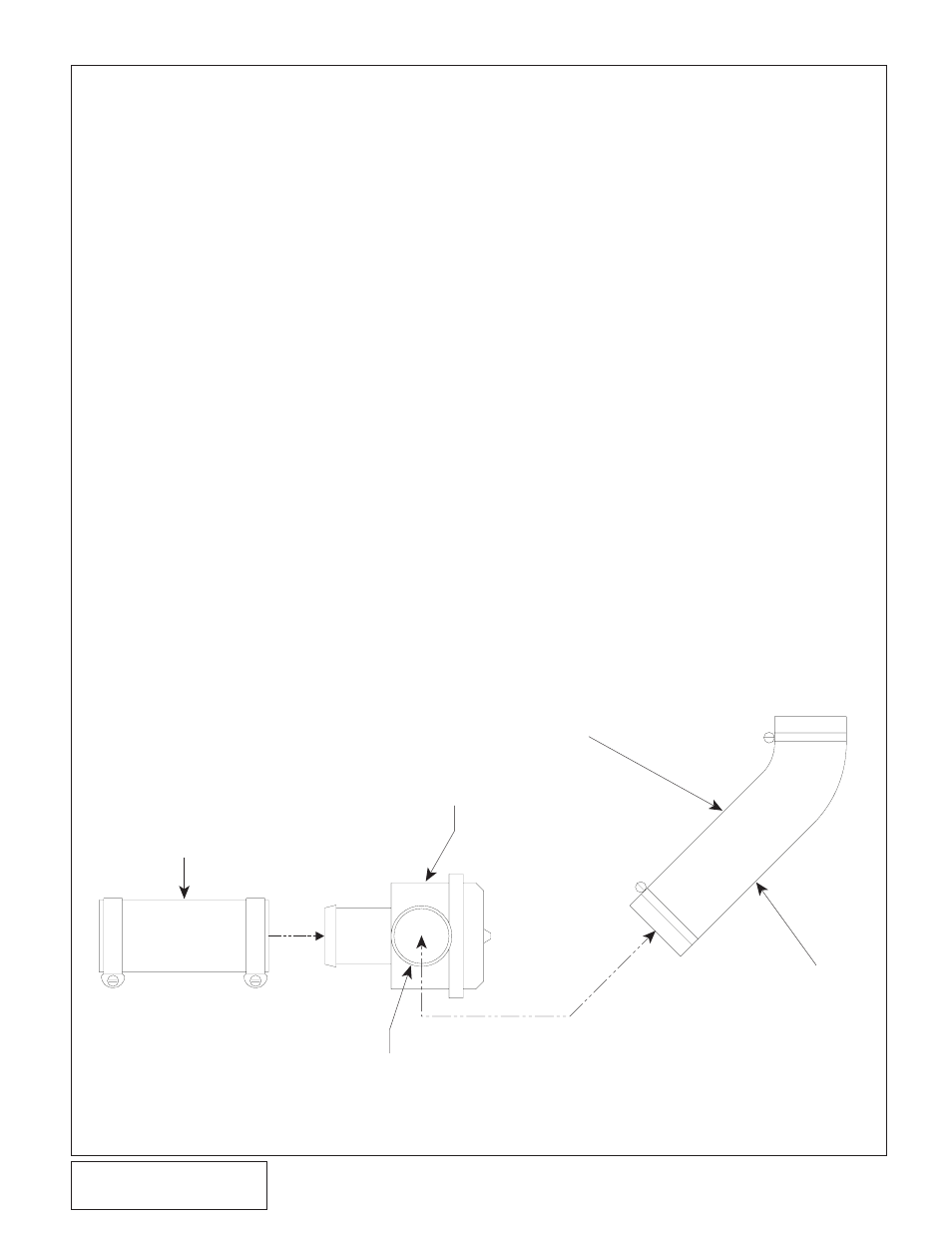

Fig. 3F-a
APPROX.
4.50"
MOLDED 45° HOSE
(7U133-045)
BY-PASS VALVE
4.25" LENGTH
OF HOSE
TO 45° RUBBER HOSE
1. Cut a piece of the provided 1" heater
hose approximately 4.25" long and secure
it to the by-pass valve inlet (opposite the
vacuum port) using the #16 hose clamps
provided.
2. Locate the 1" molded rubber 45° elbow
and cut approximately 6" from the long
end and 1" from the short end. Attach the
long end to the by-pass valve discharge
and secure using the #16 hose clamps
provided. (See Figs. 3F-a, 3G-c.)
3. Attach the open end of the 4.25" long
hose to the by-pass port on tube “A” and
secure using a #16 hose clamp. The open
end of the 45° hose will be connected to
the inlet duct in a later step. (See Fig.
3G-c.)
