Vortech 2005-2009 Ford 4.6L 3V Mustang GT Air-Air Cooler - Manual (Page 26)

P/N: 8N020-160
© 2008 Vortech Engineering
All Rights Reserved, Intl. Copr. Secured.
29DEC08v1.0(8N020-160v1.0)
18
1. Locate the Charge Air Cooler assembly.
Place the cooler onto the previously
installed hardware, making sure the four
spacers remain in place. Align the top of
the cooler flush with the top of the styro-
foam bumper support. Secure the cooler
using the nuts and washers provided.
(See Fig. 3E-b.)

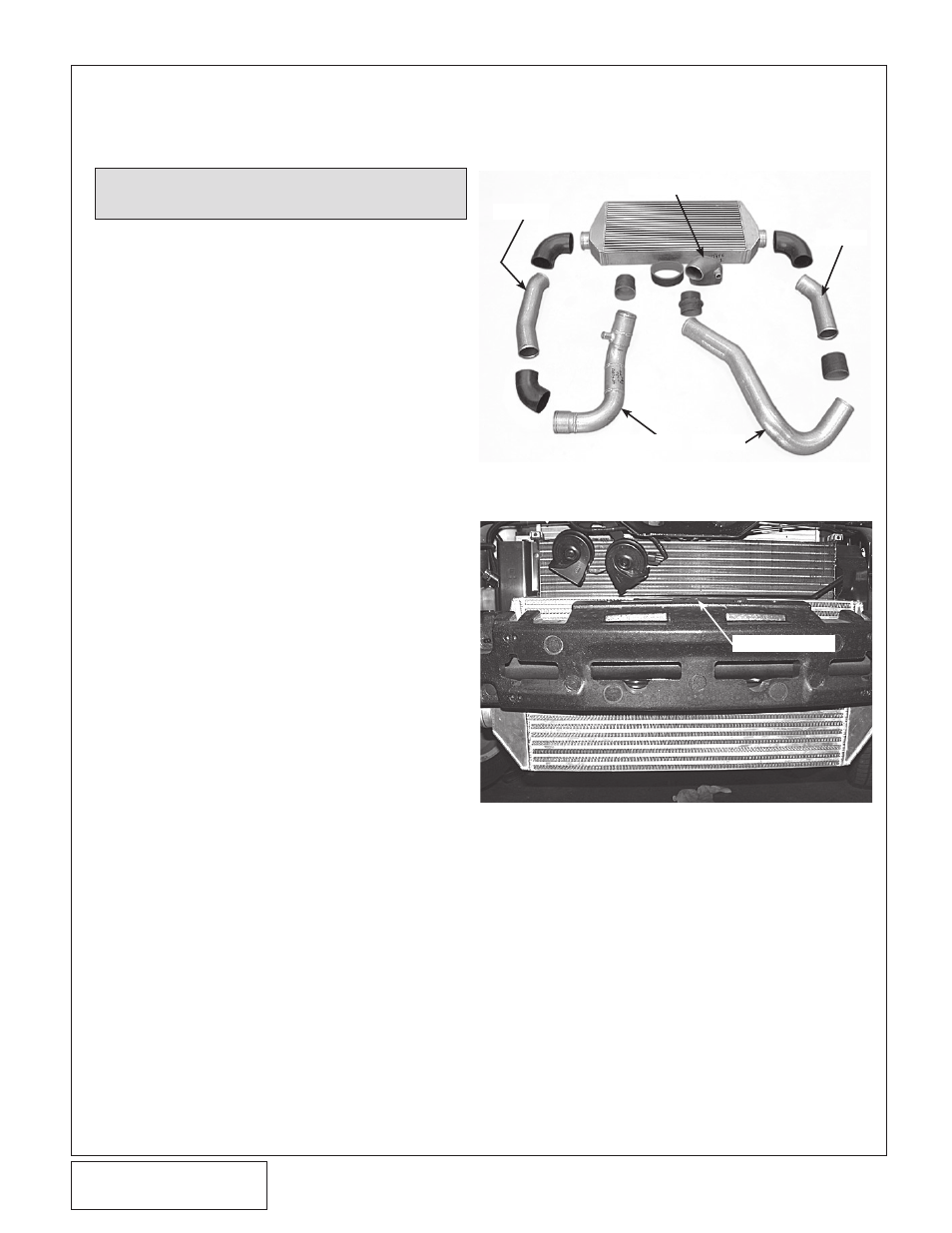

Fig. 3E-a
Fig. 3E-b
FluSH WitH toP
tuBe “A” tuBe “e”
tuBe “d”
diSCHARGe duCt
tuBe “C”
3E. CHARGE AIR COOLER CORE INSTALLATION
(2007-2009 Models Only)
NOTE: Use Fig. 3E-a to aid in the next few steps
