3E. CHARGE AIR COOLER CORE INSTALLATION
(2007-2009 Models Only), cont’d

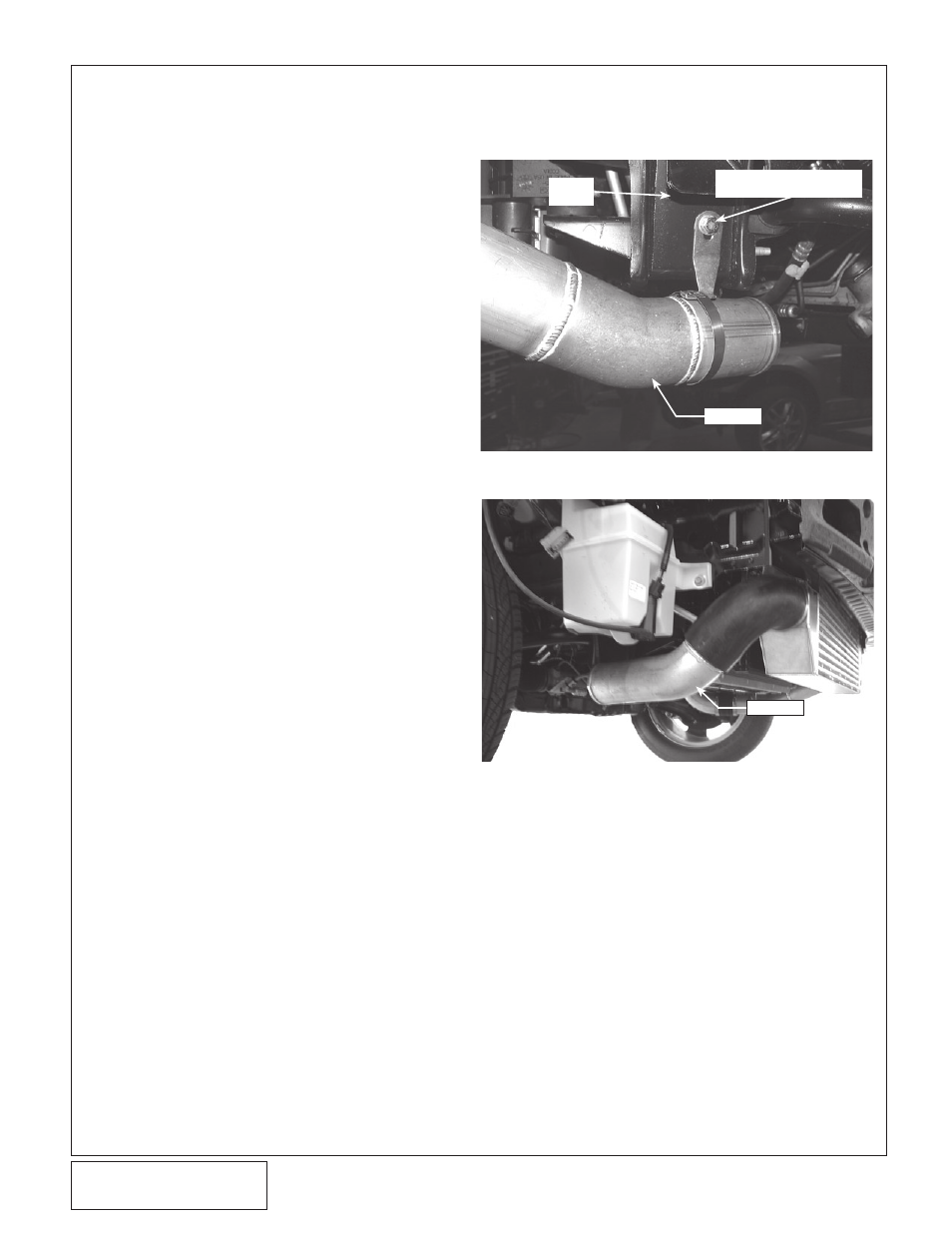

Fig. 3E-e | Driver’s side
Fig. 3E-f
3. Install the provided 3" x 45° sleeve and
#48 hose clamps onto the open end of
tube “A”.
4. Using a 5/16-18 tap, tap the lower hole on
the driver’s and passenger’s side core
support. Locate the tube support brack-
ets, 5/16-18 x 1/2" screws and washers.
Loosely attach the tube support brackets
to the core support. (See Fig. 3E-e,
3E-g.)
5. Install tube “C” (2007 models do not
require a tube “B”) between the 90° rub-
ber elbow and the 3" x 45° sleeve previ-
ously installed on tube “A”. Attach tube
“C” to its support bracket using the #44
hose clamp. Tighten the clamp and brack-
et. Secure all hose connections to this
point using the #48 hose clamps provided
adjusting for best fit and clearance.
6. Install the short end of tube “D” into the
open end of the passenger’s side 90° rub-
ber elbow previously install. (See Fig.
3E-f.)
tuBe “C”
uPPeR
Hole
loWeR Hole tAPPed
WitH BRACKet inStAlled
tuBe “d”
