Vortech 2005-2009 Ford 4.6L 3V Mustang GT Air-Air Cooler User Manual

Page 27

P/N: 8N020-160

29DEC08v1.0(8N020-160v1.0)

3E. CHARGE AIR COOLER CORE INSTALLATION, cont'd

(2007-2009 Models Only)

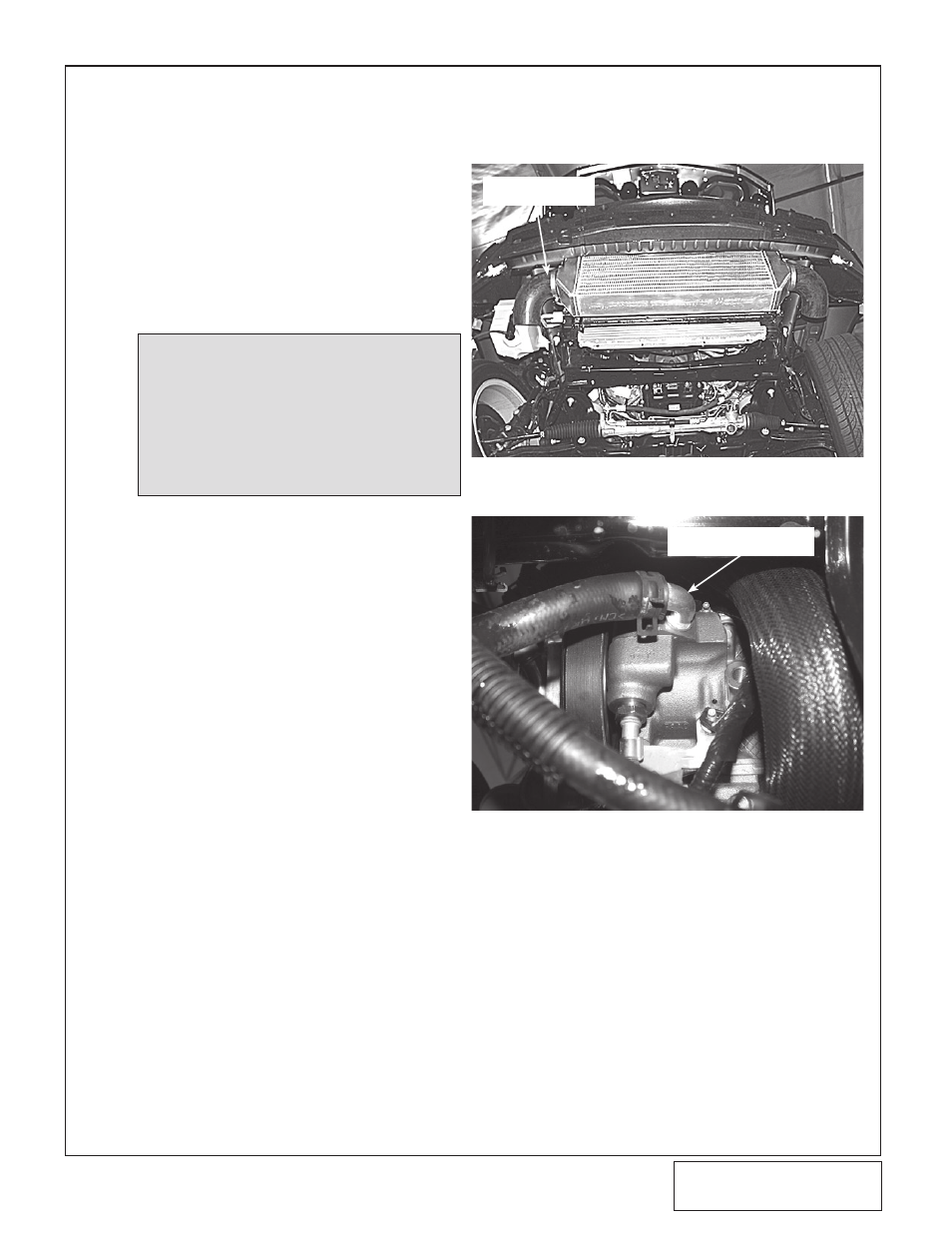

Fig. 3E-c

Fig. 3E-d

SHoRt endS oF 90°

elBoWS PRoVided

FittinG RotAted toWARd

FRont oF VeHiCle

Loosely install the short ends of the two

90° rubber elbows onto each end of the

charge cooler using the supplied #48

hose clamps. (See Fig. 3E-c.)

Using the Ø3" x 2.75" reducer sleeve and

clamps, loosely attach tube “A” to the

supercharger’s discharge. (See Fig.

3E-c.)

NOTE: For better duct clearance, rotate the

power steering return fitting so that it

points to the front of the vehicle. Use care

not to damage the fitting or hose. If nec-

essary, rotate the power steering line from

the rack to the radiator closer to the

frame. (See Fig. 3E-d.)
