Vortech 2005-2009 Ford 4.6L 3V Mustang GT Air-Air Cooler User Manual

Page 21

P/N: 8N020-160

29DEC08v1.0(8N020-160v1.0)

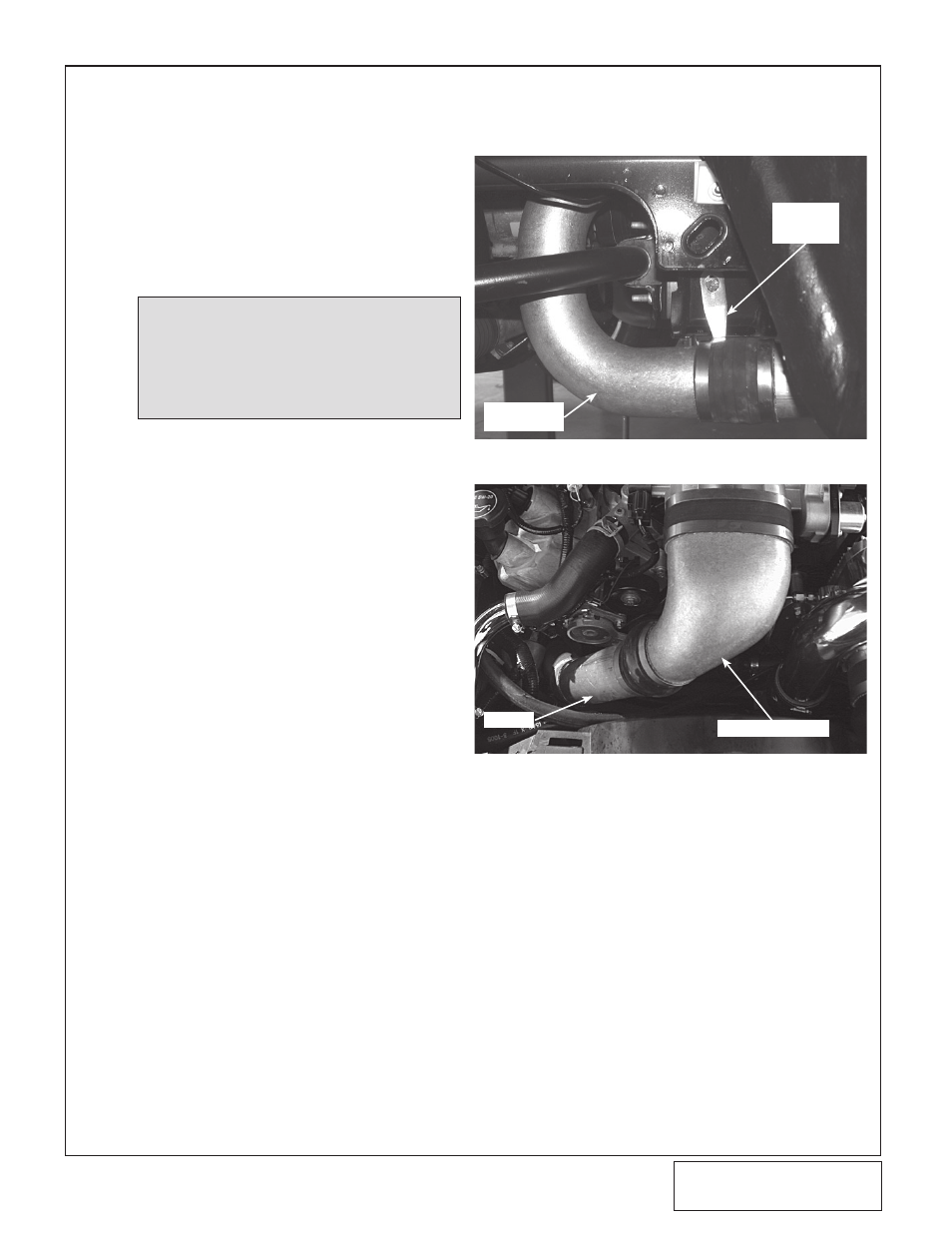

Fig. 3B-g | Passenger’s side

Fig. 3B-h

tuBe “e”

diSCHARGe duCt

Attach a 3" x 3" sleeve and #48 hose

clamps to the open end of tube “D”.

10. Install the short end of tube “E” into the

sleeve attached to tube “D”. Secure the

tube support bracket using the previously

installed #48 hose clamp. (See Fig.

3B-g.)

11. Attach the cast discharge duct to the

throttle body using the supplied 4.5"

sleeve and #72 hose clamps.

12. Using the remaining 3" x 3" bump sleeve

and #48 hose clamps, connect the long

end of tube “E” to the cast discharge

tube. (See Fig. 3B-h.)

13. Secure all hose connections at this time,

adjusting for best fit and clearance.

TUBE

SUPPORT

BRACKET

SHORT END

OF TUBE “E”

3B. CHARGE AIR COOLER CORE INSTALLATION, cont’d

(2005-2006 Models Only)

NOTE: For better fit, the transmission cooler lines

(if equipped) will need to be pushed

upward slightly so that tube “E” will fit

between them and the A/C compressor.

(See Fig. 3B-g.)
