Main bracket and supercharger mounting plate, Crankshaft and water pump pulleys – Vortech 1994-1995 Ford 5.0 Mustang User Manual

Page 16

P/N: 4FG020-010

04NOV08 V2.0(94-95 5.0 Mus.(4FG V2.0))

A. Remove the crankshaft pulley.

B. Place the Vortech crank pulley onto the crank

balancer and secure with the four supplied grade

8 bolts and washers.

C. Install the Vortech water pump pulley using stock

fasteners.

A. Sandwich the smog pump between the casting and

front supercharger mounting plate using the five 3/8-

16 x 1" bolts and AN washers. On the upper smog

pump bolt hole use the 3/8-16 x 5" bolt, 3/8" nut and

AN washer with .189 spacer behind the front plate

and the 3/8-16 x 1-1/4" bolt and AN washer on the

lower mount of the smog pump.

B. Install the assembled bracket onto the engine using

one 7/16-14 x 2-1/4" bolt and two 3/8-16 x 2-1/4"

and one 3/8-16 x 1-1/2" bolt and AN washer.

C. Connect the smog pump diverter inlet hose to the

smog pump discharge.

D. Mount the triangular shaped alternator bracket using

two 5/16-18 x 1" bolts and AN washers as shown.

E. Using the factory mounting

bolt, mount the accessory belt

tensioner onto the Vortech main

bracket.

ALTERNATOR BRACKET

3/8-16 x 4"

(THROUGH

ALTERNATOR)

5/16-18 x 1"

7/16-14 x 2-1/4"

MOUNTING

BRACKET

3/8-16 x 2-1/4"

3/8-16 x 1-1/2"

3/8-16 x 1-1/4"

3/8-16 x 1"

3/8-16 x 5"

AND NUT

.189" SPACER

(BEHIND PLATE)

MOUNTING PLATE

NOTE:

Tighten bolts progressively and evenly in a

crisscross pattern so that pulleys align properly.

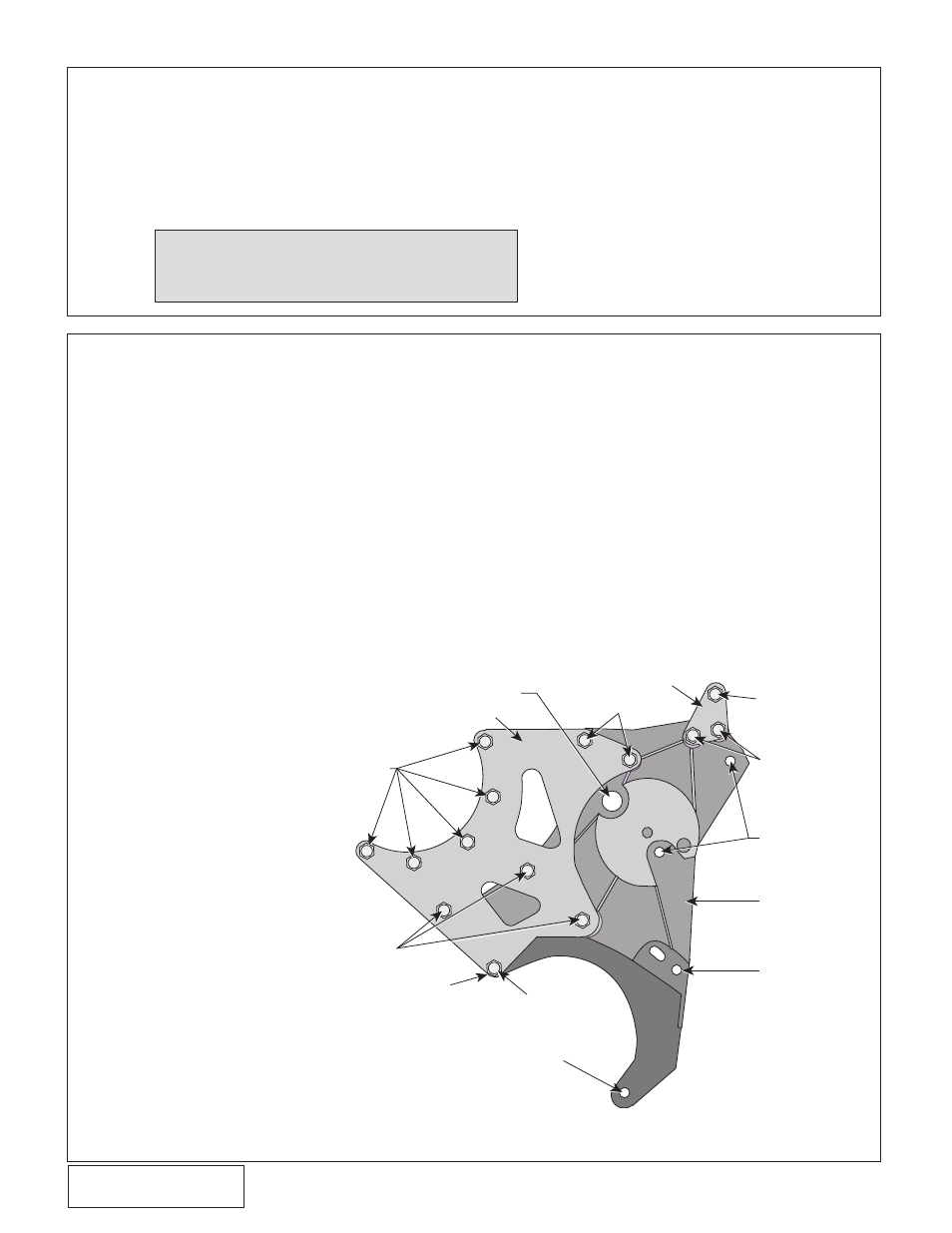

10. MAIN BRACKET AND SUPERCHARGER MOUNTING PLATE

Fig. 10-a

9. CRANKSHAFT AND WATER PUMP PULLEYS
