4. FUEL MANAGEMENT UNIT, cont’d.

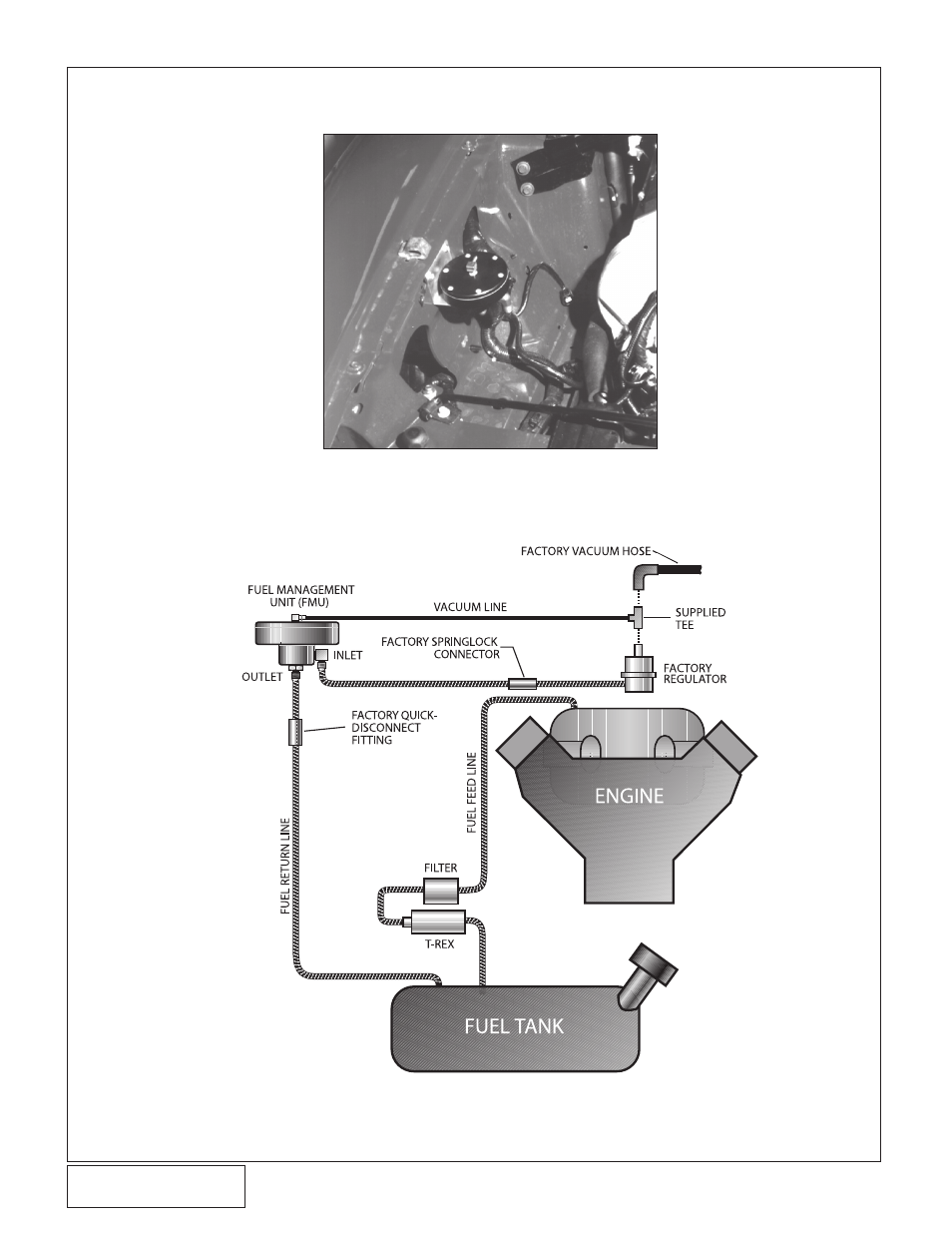

Fig. 4-a

FMU Installed on Passenger’s Side Fender

(non-aftercooled installations only)

Fig. 4-b

FMU Hookup Diagram
