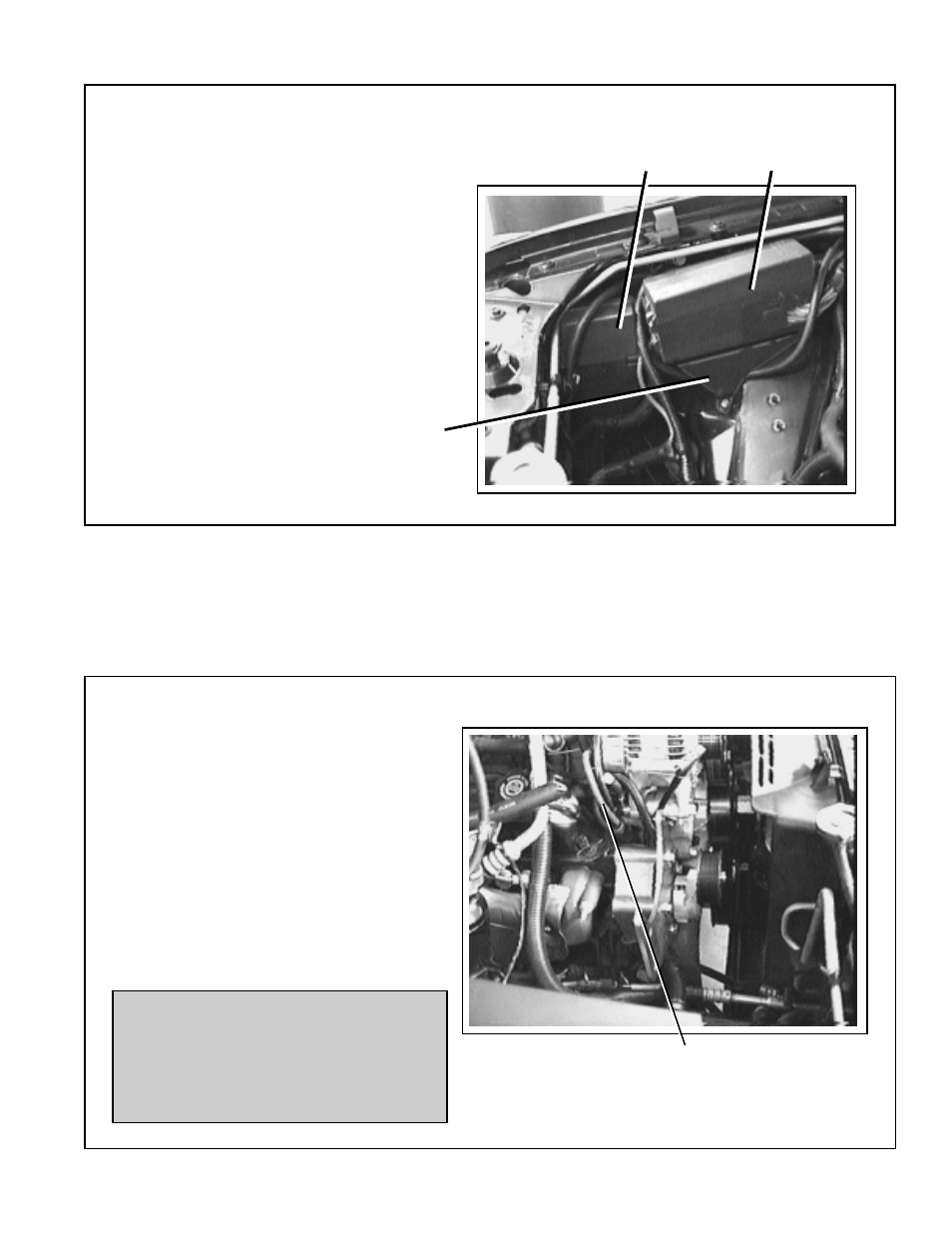

5. MAIN MOUNTING BRACKET AND PLATE

4. VACUUM RESERVOIR

A. Remove the vacuum reservoir from

the bottom of the battery tray.

B. Place the vacuum reservoir in the

forward most corner of the passenger
side fenderwell. See graphic.

C. Using the existing mounting flanges,

drill and secure with the provided
sheetmetal screws.

D. Reattach the vacuum hose.

VACUUM
RESERVOIR

PDC

NEW
BRACKET

WIRING HARNESS

A. It is necessary to provide clearance

between the dipstick and accessory drive
belt. Remove the bolt holding the dip
stick tube. Hold the tube approximately
two inches from the top and gently bend
rearward and inward about one inch.
Resecure with the existing fastenera
after the bracket installation.

B. Mount the cast aluminum main

mounting bracket on the front of the
engine right cylinder head using the
fasteners provided, as shown in the
graphic on the next page.

NOTE: Before mounting the main
bracket, the vehicle wiring harness
must be shifted so that it rests in
between the timing chain cover and
the supercharger mounting bracket
for exhaust clearance.
