Vortech 1993-1996 5.2L Grand Cherokee User Manual

Page 24

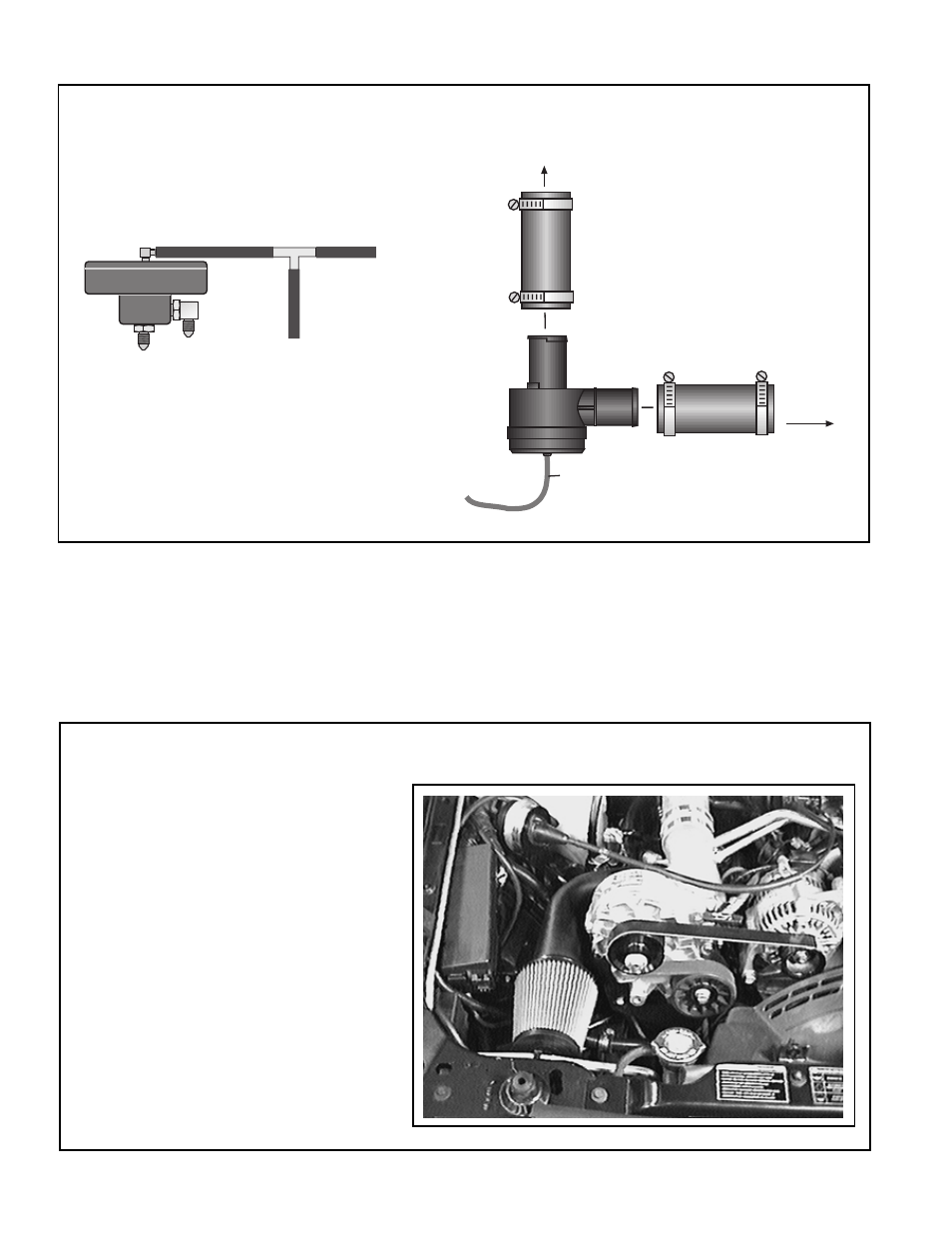

16. BYPASS VALVE INSTALLATION, cont'd.

DISCHARGE

TUBE

2-1/2" x 1"
HOSE

VACUUM
HOSE

3-1/2" x 1" HOSE

INLET
DUCT

TO INTAKE
MANIFOLD

TO BYPASS
VALVE

FMU

17. SUPERCHARGER INLET

A. Slide the inlet duct and T-bolt clamp

onto the supercharger inlet.

B. Route the new 5/8" hose from the

drivers side valve cover breather,
around the rear portion of the intake
manifold and attach to the
corresponding hose barb on the air
inlet duct.

C. Connect the bypass assembly to

the 1" barb on the air inlet.

D. Mount the air filter and secure with

supplied hose clamp.
