6. SUPERCHARGER MOUNTING

A. Attach the oil drain hose to the drain

fitting on the bottom of the supercharger
and secure with the clamp provided.
Make sure to position the clamp housing
to the side so that it does not interfere
with the mounting plate.

B. Set the supercharger in place on the

plate and secure with the five 3/8-16 x 1"
bolts and washers.

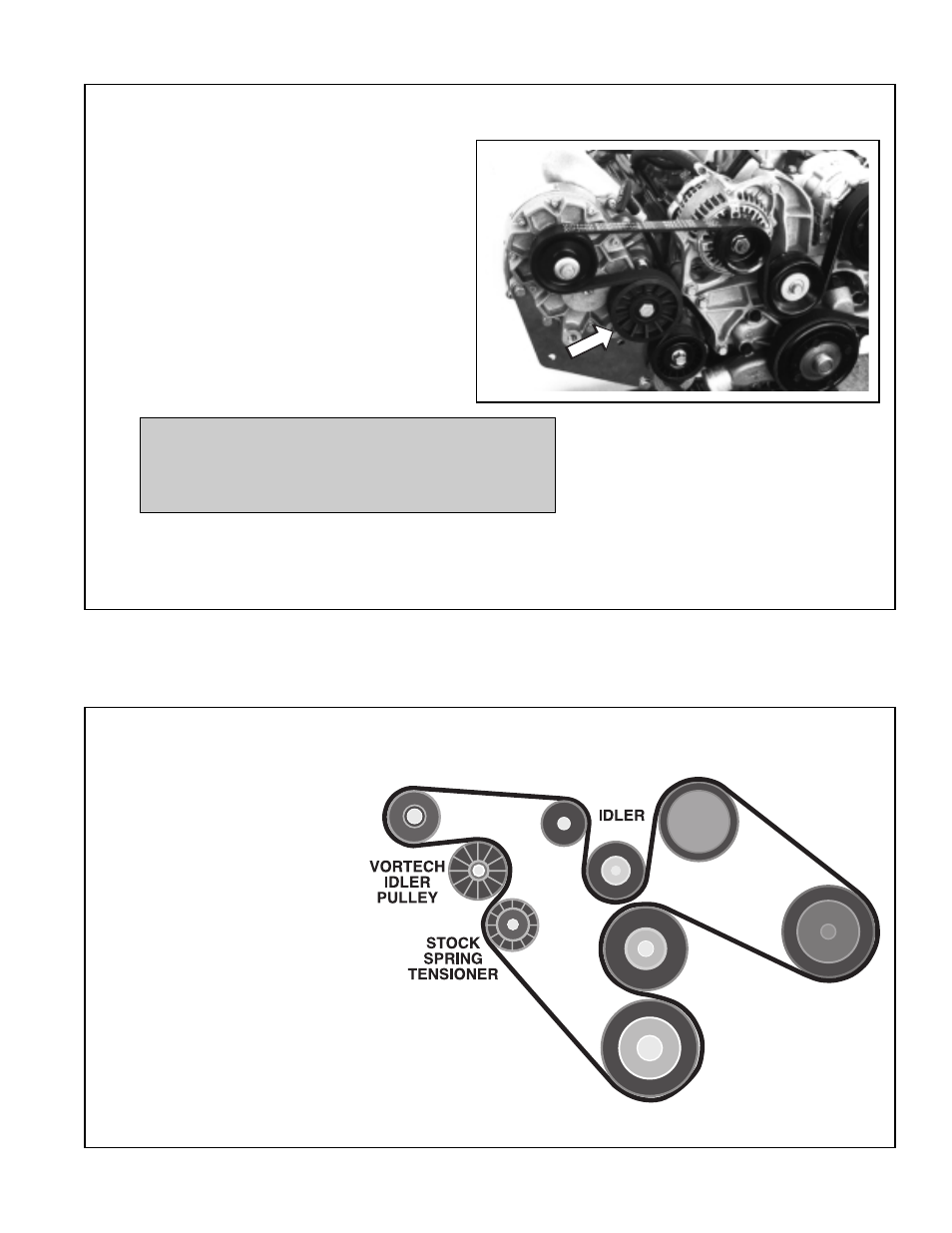

C. Attach the plastic idler pulley (arrow) to

the inner most threaded boss on the
supercharger. Use the supplied large
washer as a spacer in between the pulley
and the supercharger.

D. Route the supercharger drain hose downhill towards the drain

fitting in the pan. Trim hose if necessary and secure to fitting
with the supplied #8 hose clamp.

NOTE: Drain hose must be routed downhill
with no kinks or sharp turns. Supercharger
life will be affected by an improperly routed
drain hose.

7. SUPERCHARGER/ACCESSORY DRIVE BELT

S/C DRIVE

PULLEY

ALT

A/C

CRANK

WATER

PUMP

P/S

PULLEY

A. The new, longer accessory

drive belt is routed the same
as the original belt except
for accommodation of the
supercharger and a idler
pulley.

B. Route the belt around the

outside of the supercharger
drive pulley then around the
inside of the idler as shown.

C. The stock tensioner is used

as originally intended in its
relocated position.
