Vortech 1993-1996 5.2L Grand Cherokee User Manual

Page 19

11. FUEL MANAGEMENT UNIT

A. Using the photo on page 9 as a reference, place the fuel

management unit (FMU) on the firewall. Mark and drill two
3/32" holes and secure the unit with the sheet metal screws
provided. (Temporarily placing the washer reservoir back
into its original location will help reference proper FMU
placement.)

B. Connect the FMU inlet hose (the hose running to the 90

fitting on the side of the FMU) to the brass tee fitting on the
exit side of the secondary fuel pump.

C. Connect the FMU outlet hose to the brass #4 flare fitting

located before the secondary pump inlet.

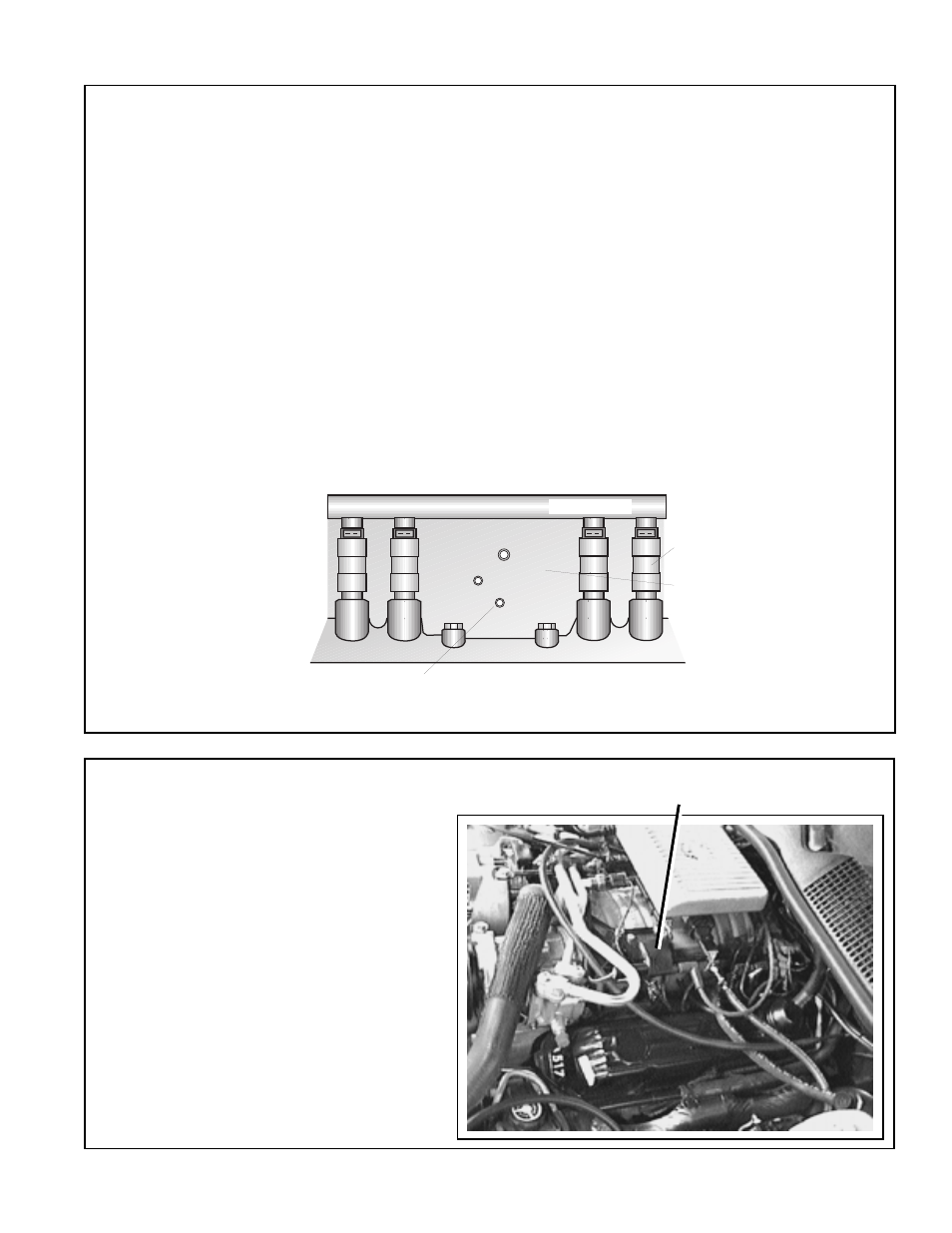

D. Attach the supplied vacuum line from the fitting on top of the

FMU to the small vacuum fitting on the driver's side of the
intake manifold. See graphic.

E. Use tie wraps to secure the lines.
F. Reinstall wiper washer reservoir, lines and wire connections.

12. IGNITION COIL RELOCATION

A. Remove the ignition coil from its original

mounting bracket.

B. Locate the two 5/16" threaded bosses

on the intake manifold between the
throttle body and rear of the air
conditioning unit.

C. Attach the supplied coil bracket and

1/4-20 hardware to the ignition coil.
Secure the coil assembly to the intake
manifold using the supplied spacer,
5/16" bolts and washers. The
distributor lead must point toward the
rear of the vehicle.

INTAKE
MANIFOLD

FUEL RAIL

DRIVER'S SIDE

ATTACH FMU TO
SMALL VACUUM
CONNECTION

FUEL
INJECTORS

IGNITION
COIL
