Part 2 - Cross Bars
Crossbar Assembly
Take the double T-Slot crossbar (Item 1) and insert four 1.
square nuts (Item 18) into the bottom T-Slot. Reference
Figure 2.1, 2.2 & 2.3
Insert a T-bolt (Item 24) through the bottom of the 2.
cross bar tie-down (Item 25) and slide the unit into the
top track of the crossbar so that both the bolt and the
tiedown are locked into the t-track.
Thread a crossbar tiedown knob (Item 26) onto the 3.
T-Bolts (Item 24) and tighten in a desired location.
Repeat with the other tiedown so that they face one
another as in Figure 2.1.
Insert the Crossbar End Cap with the flat mounting 4.
surface facing down into the end of the crossbar. Us-
ing the clearance hole on the bottom of the crossbar
and the M6 SHCS (Item 19). Tighten down the M6 SHCS
using the 3/16” Allen Key. Repeat on the opposite side.
Reference Figure 3.1
Repeat steps 1-4 for the remaining crossbar. 5.
Step 2
Step 3
Figure 3.2
Note:
this face down
Front & Rear Crossbar Installation
Now place the assembled crossbar on top of the 1.
assembled uprights. Make sure the crossbar is right
side up. Reference Figure 2.3
Slide the Square Nuts (Item 18) so that they are 2.
directly above the slotted hole in the saddle. Insert
the 3/8 BHCS (Item 17) into the Square Nuts (Item 18)
and tighten the cap screws, using a 7/32” Allen Key or
(7/32” Allen Drive Bit) Do not fully torque the screws
until Step 8 of the Truck Installation
Note: Make sure that the BHCS sits completely within the
recessed area of the saddle casting. See Figure 3.2
Repeat Steps 1 and 2 for the opposite upright. 3.
Repeat Steps 1-3 for the remaining crossbar. 4.
Figure 3.1

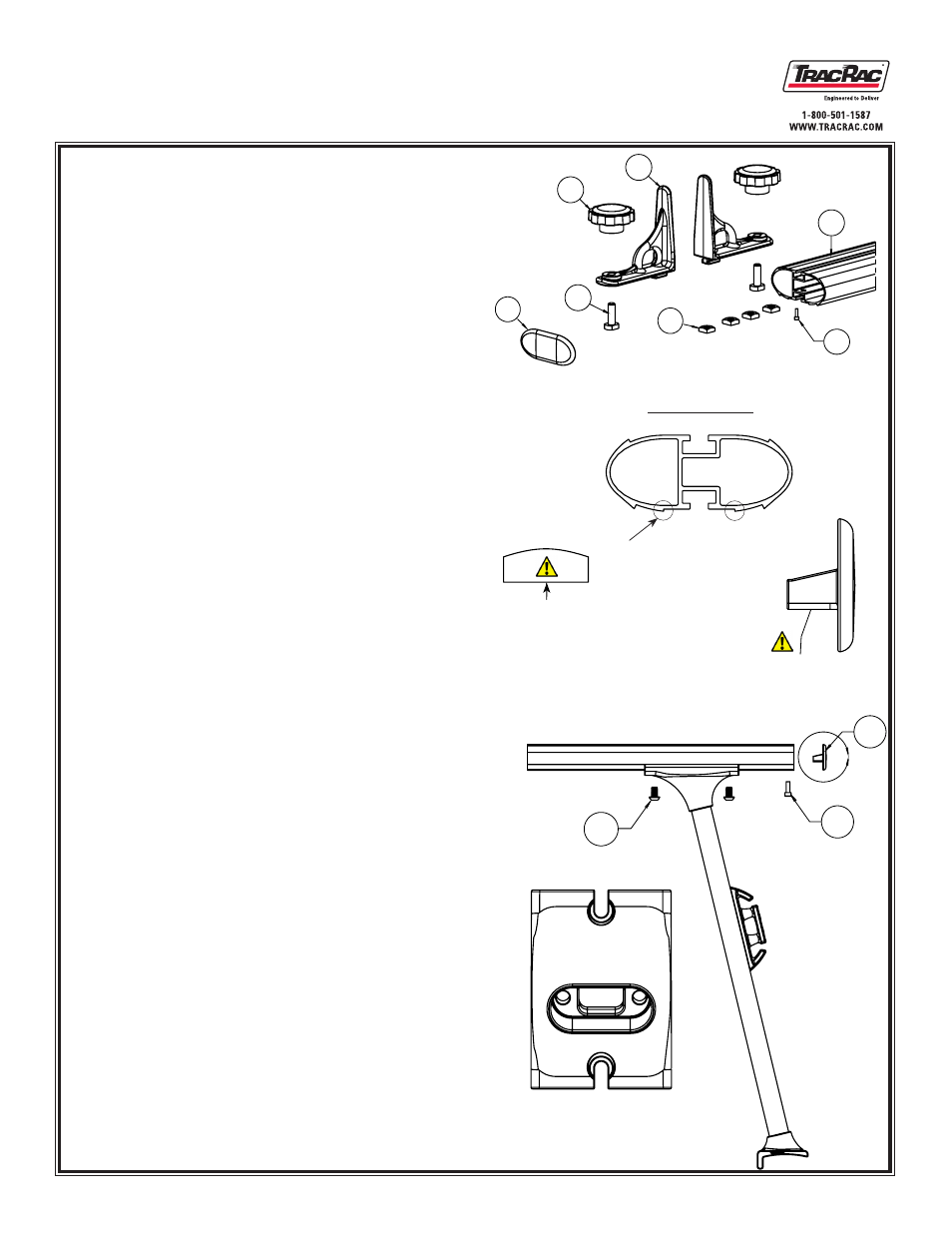

Figure 2.1
n
ote
:
flat face of
the square nut is
to face downward
Figure 2.2
Crossbar End View
Top
Bottom
grove fits into saddle
Figure 2.3
Figure 2.4
A
8
19
26
25
24
1
26
18
19
17
