Instruction Manual

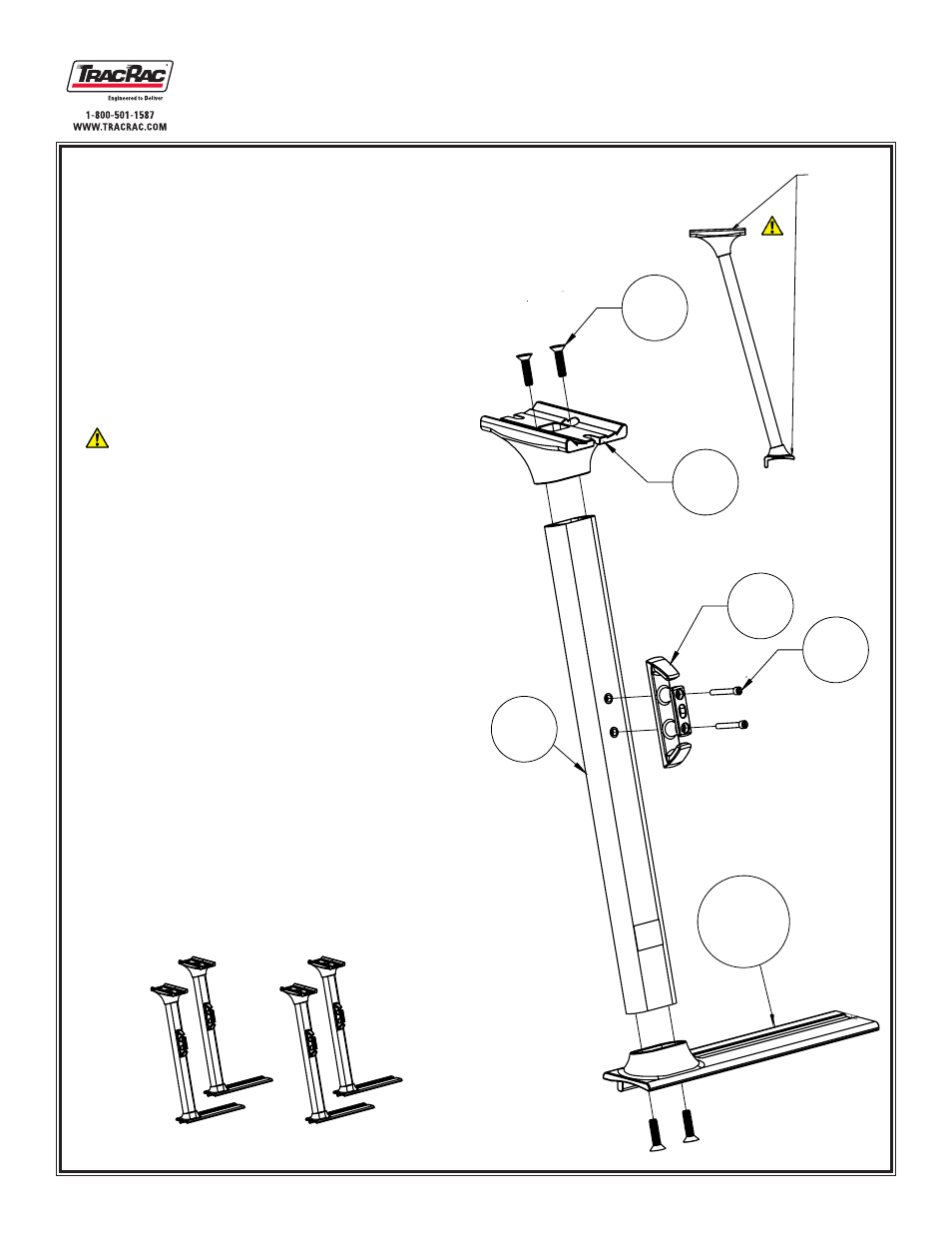

Upright Assembly

First take the upright (Item 3) and insert it into a

modular saddle (Item 5).

Bolt the saddle through the top by using two 3/8”-16

FHCS (Item 16) and tighten using a 7/32” Allen Key

(or 7/32” Allen Drive Bit) Torque the 3/8” -16 FHCS

to 32 ft-lbs. We recommend threading both flat

head cap screw initially by hand to ensure that you

don’t cross thread the bolt.

When tightening the 3/8” FHCS ensure that the

Allen Key is fully seated in the bolt so that it will not

strip

Now take the upright and saddle and bolt it to the

modular base (Item 2)

For the other front upright repeat steps one through

four, except use Item 6 in Step 3.

NOTE: Item 2 and Item 6 are mirror images of each

other. Reference the packing checklist to confirm what

part to use.

Repeat Steps 1-4 on the rear uprights

With the upright, saddle and base assembled,

secure one of the upright cleats (Item 9) with two

1/4”-20 SHCS (Item 27) to the upright. Torque the

1/4”-20 SHCS to 6 ft-lbs.

Repeat Step 7 on each of the uprights.

Step 1

When Step 1 is complete, you will have 4 uprights.

Part 1 - Uprights

Note:

Both

surfaces

must be

parallel

with each

other

2 or 6
