TracRac Inc. 994 Jefferson St. Fall River, MA 02721 l 800-501-1578 Instruction Manual
These instructions will guide you through the 3 main component assemblies:
Upright units 1.
Cross bars 2.
Clamp units 3.
Date:
Signature:
SKU: 30000-01, 30000-02, 30000-03
Tool you will need:
7/32” Allen Key •
3/16” Allen Key •
9/16” Socket & Socket Wrench •
Tape Measure •
Recommended: Torque •
Wrench, 7/32” Allen Drive Bit,
Drill (non-impact)
Installation Instructions
ITEM NO. PART NUMBER DESCRIPTION 01/QTY.
1 01-30008-01 P/C,DOUBLE T-SLOT CROSSBAR, ROUTERED 2
2 01-30009 ASM, UPRIGHT BASE, LF/RR 2
3 01-30001-01 ASM, MODULAR UPRIGHT, T-RAC 4
4 01-27029 P/C, TB FRONT MOUNT 8
5 01-27012 P/C, MODULAR SADDLE 4
6 01-30010 ASM, UPRIGHT BASE, RF/LR 2
7 RX-11034-3 SHIM, ROUNDED 4
8 01-27023 P/C, DOUBLE/TRIPLE CROSSBAR ENDCAP 4
9 01-27046 P/C, UPRIGHT CLEAT 4
10 01-27015 HARDWARE BAG - CLAMPS 1
11 01-27016 HARDWARE BAG - UPRIGHT/SADDLE 1
12 01-22757 CROSSBARTIEDOWN BAG (2 PAIR) 1
13 01-30005 HARDWARE BAG - CLEATS 1
14 01-27032 P/C, TB REAR MOUNT 2
15 01-30006 HARDWARE BAG - TB MOUNT 1

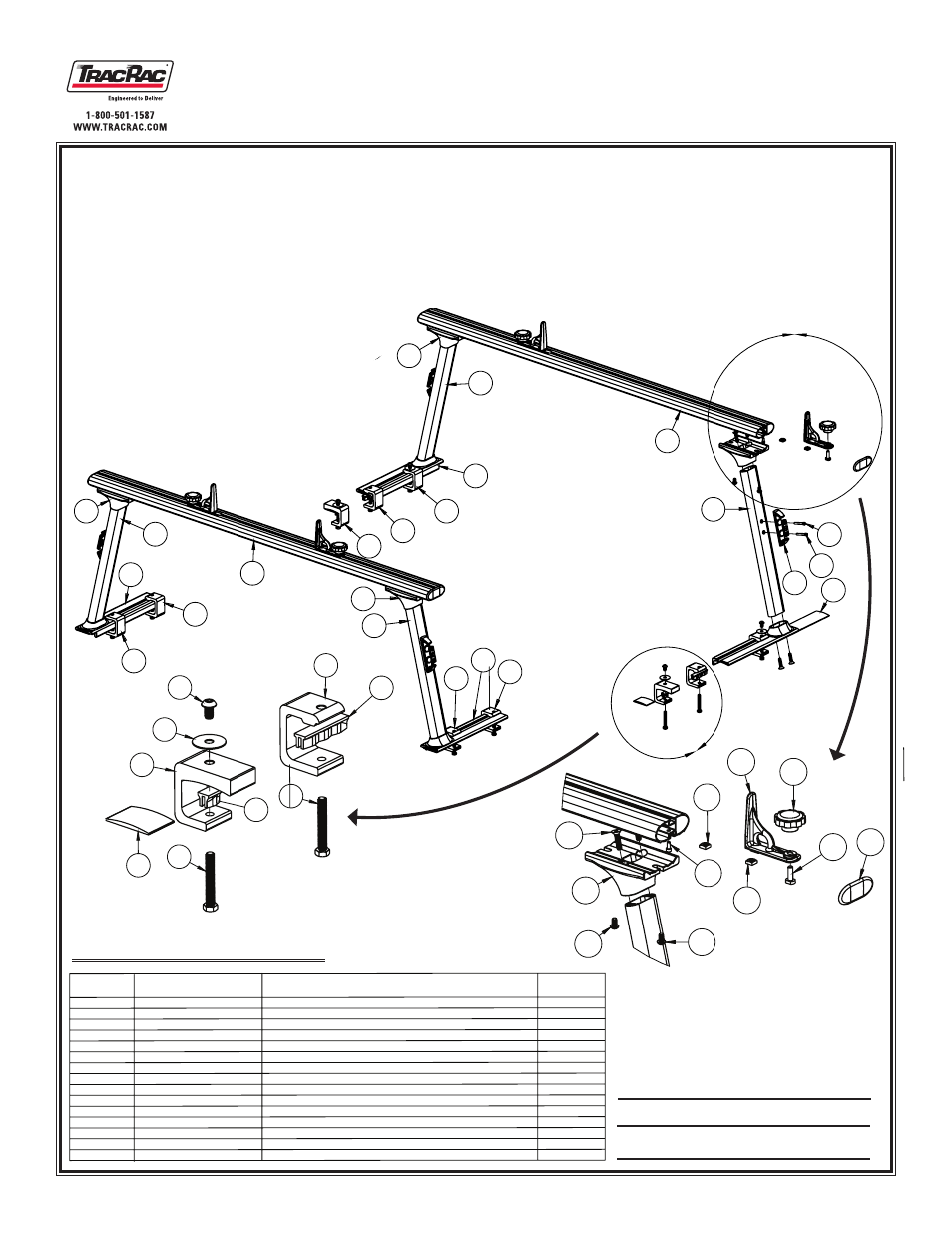

Please reference the drawing below for a general
overview.
DETAIL A
16
5
19
17 17
18
25
26
18
24
8
DETAIL B
28
31
14
32
29
30
4
23
22
A
B
4
4
3
3
3
3
7
1
1
14
4
5
5
4
4
9
2
4
5
6
2
24
24
20
21
,02
,02,03
SKU:
