Toyota Tacoma Mount Installation
Remove the plastic end-caps from the 1.
factory installed rails, front and back.
Take the Tacoma mount clamp and partially 2.
thread a 3/8”-16 hex head cap screw
through the tapped hole located on the
bottom of the clamp.
Slide two clamps into each factory installed 3.
rail from the back end of the truck and
replace the rear end-caps.
Slide two clamps into each factory installed 4.
rail from the front end of the truck and
replace the front end-caps.
With the clamps retained in the track now 5.
slide 2 of them on each upright base, the
clamps should be spaced as far a part as
possible.
With the base in the desired location place 6.
a 3” U channel on top of the hex head caps
screws. Reference the placement of the
uprights from the included installation book.
Torque the hex head cap screws down to 14 7.
lb-ft using a 9/16” open end wrench.
Note: The 3” U Channel and 3/8”-16 Hex •
Head Cap Screw are included with the
original rack hardware.

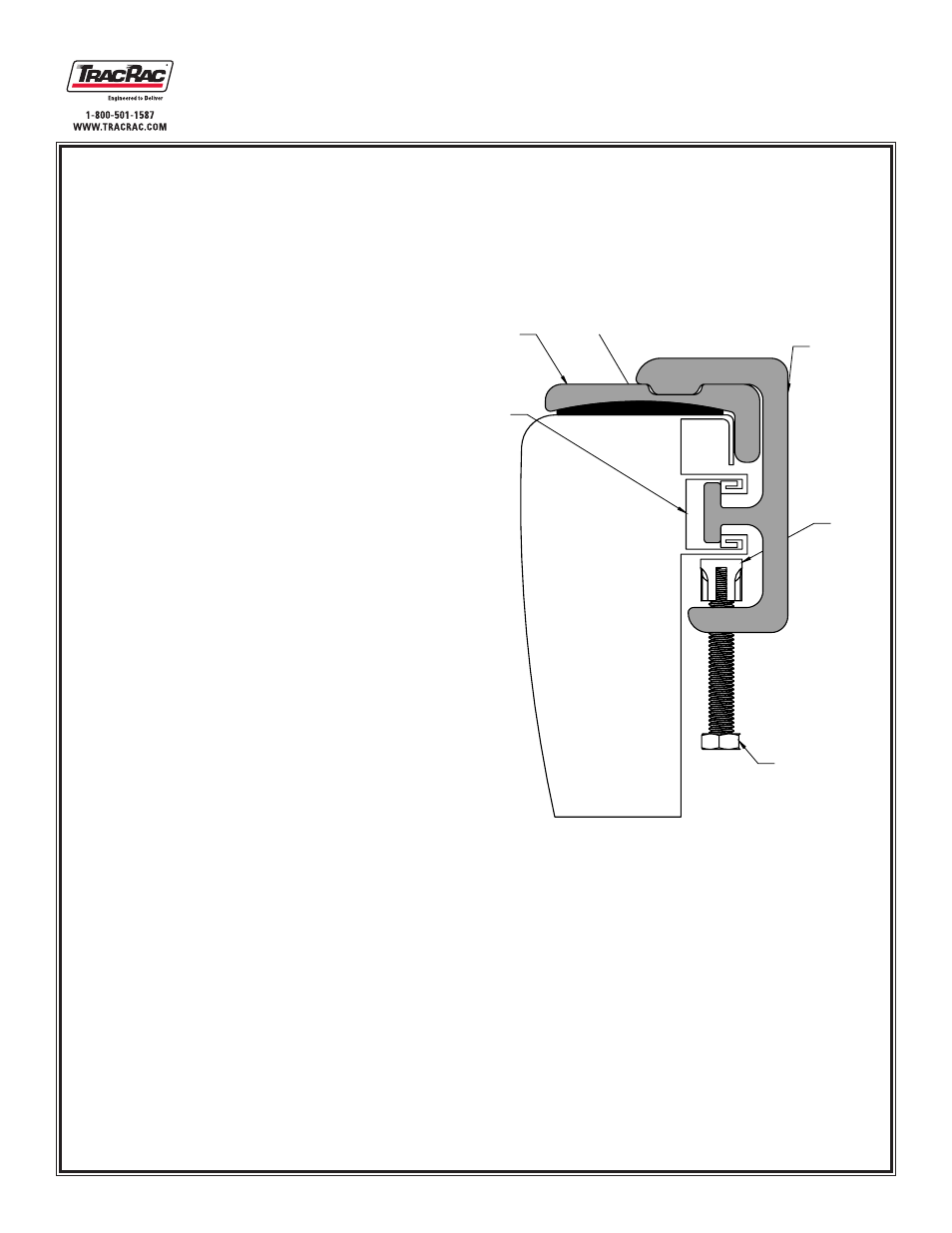

Tacoma Installation (Clamp Set)
Base Unit
U-Channel
Hex Head Bolt
Tacoma Clamp
Factory
Installed
Bed Rail
System
Rubber Shim
