14

SCSI Channel Configurations

StorCase Technology, Inc.

InfoStation 12-Bay SCSI User's Guide - Rev. B00

Typical SCSI Channel Configurations

CAUTION:

VHDCI connectors are easily damaged by improper handling. Visually inspect

each connector for bent contacts and carefully align prior to insertion.

NOTES:

The installation, configuration, and use of the StorCase InfoStation chassis

requires a certain level of expertise and experience on the part of the user/

integrator. Since there are many configuration options and variables (ie. host

platforms, applications, etc), only general/typical configuration guidelines will

be discussed in this User's Guide.

Up to fifteen (15) drives maximum per SCSI channel.

For daisy-chaining applications, total device-to-host cable length should not

exceed 12m (approx. 39ft) per SCSI specifications.

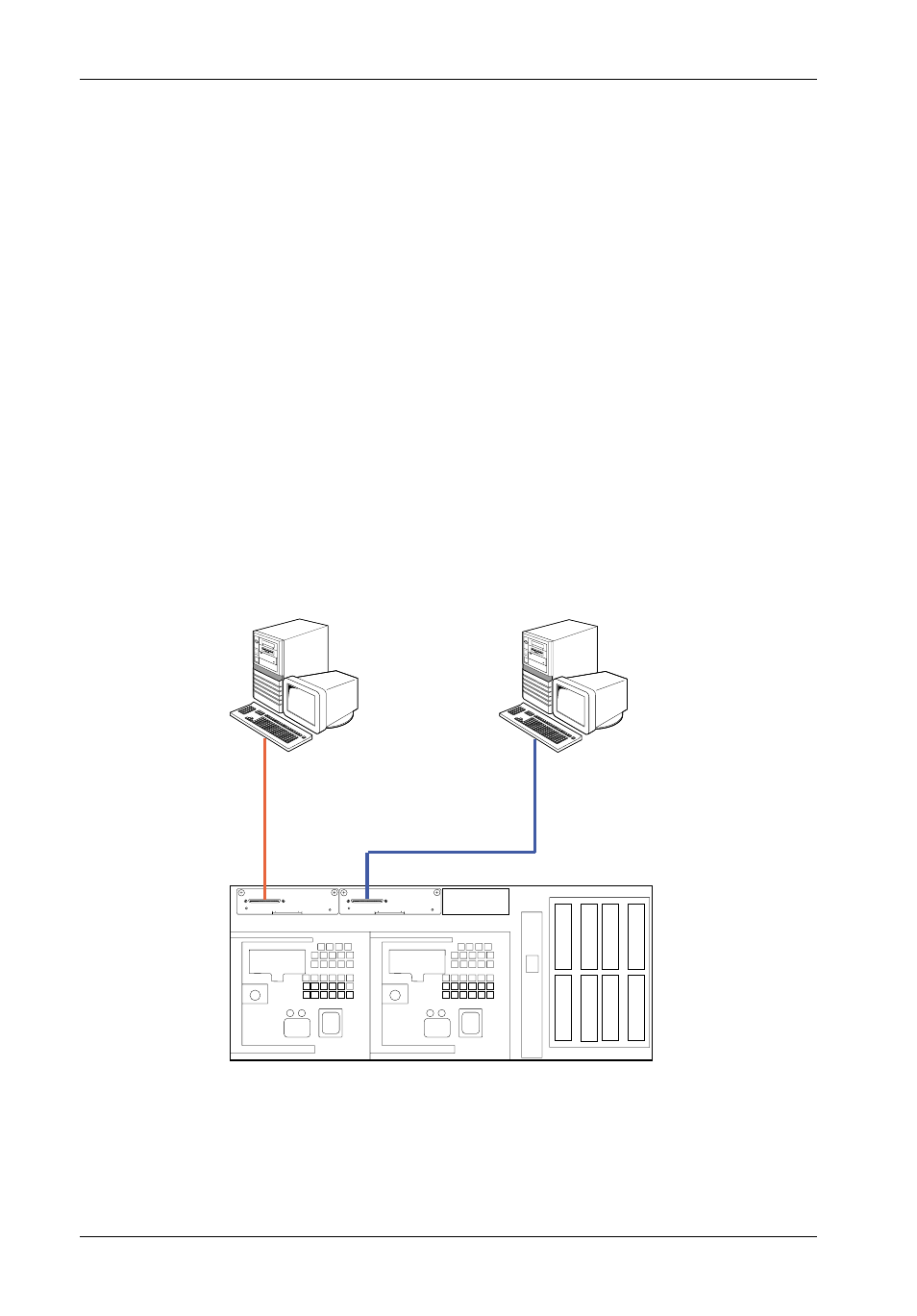

Figure 9: Typical Dual SCSI Host Connection to InfoStation

(Dual-Channel InfoStation with Ultra320 I/O Modules)

PC

PC

IFS12_10

Disk Ch. #1

Disk Ch. #2
