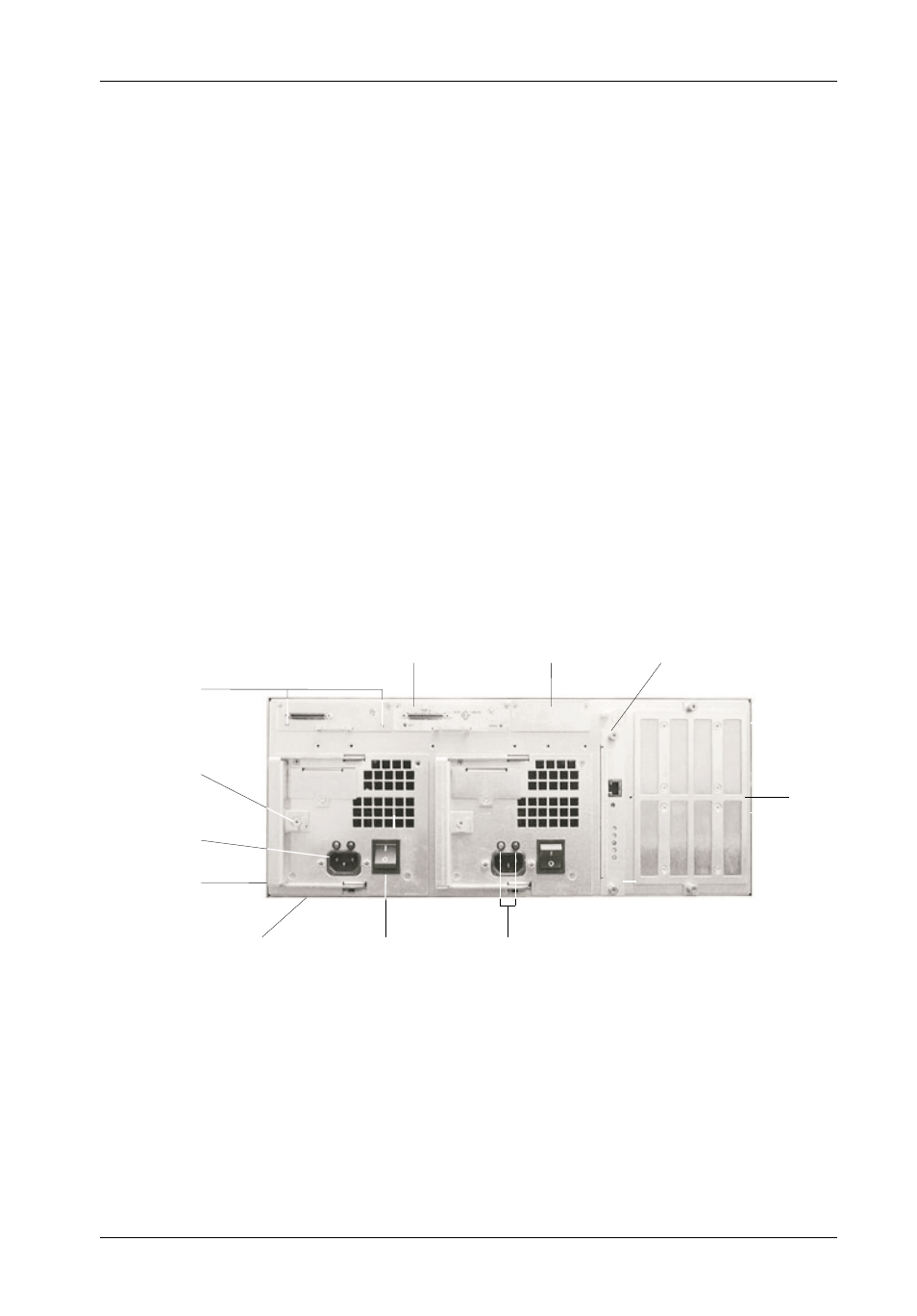

Figure 3: InfoStation Rear Panel
Module LED(s) -
Green LED - ON indicates normal power supply operation.
OFF indicates no A/C power or abnormal DC voltage range.
Red LED - FLASHING indicates temperature or over/undervoltage condi-
tions.
Power Switch(es) - Rocker switch(es) control power to the power supply
module(s).
A/C Power In - Accepts U.S. and other available international standard power
cables.
Power Supply/Blower
Module
Power
Switch
Module
Handle
Module LEDs
I/O
Module LEDs
I/O
Panel
IFS12_3
I/O
Module
AC
Power In
UI
Module
Module
Option
Captive
Screw
