Introduction

3

InfoStation 12-Bay SCSI User's Guide - Rev. B00

StorCase Technology, Inc.

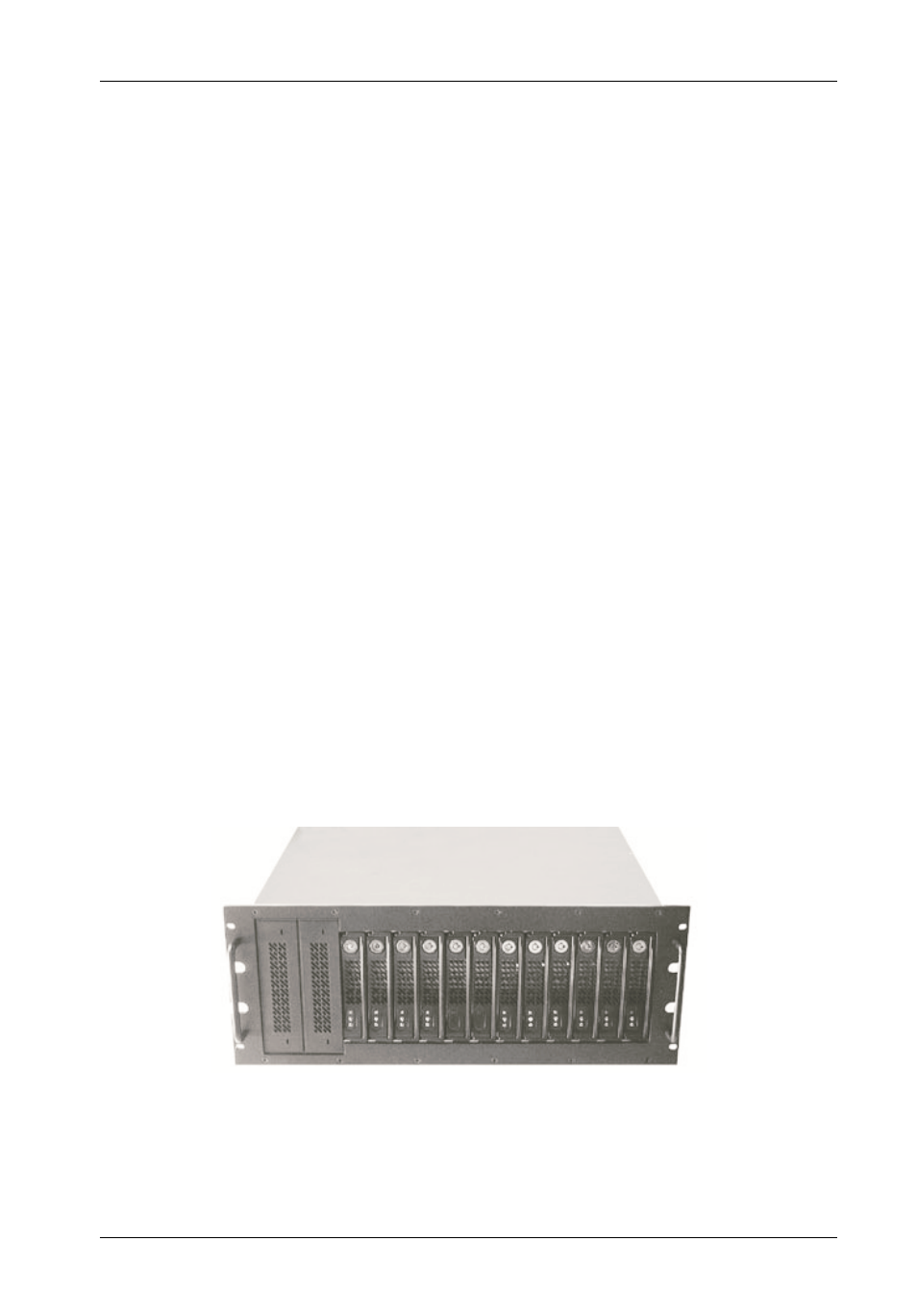

Figure 1: InfoStation 12-Bay

General Description

The StorCase

®

Technology InfoStation

®

intelligent rack-mount expansion chassis is

designed to support the latest high-density, high-speed SCSI disk drive technologies for use

in network server, fault-tolerant and/or mission-critical applications. The InfoStation is

designed to support 3.5" form factor, low profile (1" high) SCSI Ultra320 devices.

The InfoStation 12-bay enclosure is designed to support twelve (12) low-profile single-

connect SCA SCSI devices in addition to one (1) 5.25" full-height or two (2) half-height SCSI

devices (such as a RAID or NAS canister-type controller, or a full-height tape drive). Each

chassis is constructed of rugged steel and lightweight aluminum, and is equipped with two

(2) hot-swappable power supply/blower modules, each containing one (1) load-sharing, load-

balancing 450W power supply and two (2) high-pressure, variable-speed blowers. A User

Interface module on the back of the chassis provides a visual indication of chassis

configurations and communication statuses, in addition to an RS-232 connection for system

environmental monitoring, configuration, and control.

The InfoStation SCSI backplane interface supports dual host interfaces, and is available with

integrated Ultra320 I/O repeaters (for daisy-chaining Ultra320 applications) or integrated

Ultra320 I/O modules.

The InfoStation also incorporates "Soft Start" circuitry which eliminates in-rush current to each

of the installed drives during spin-up, as well as avoid power arcing during drive insertion.

IFS12_1
