12 SCSI Channel Configurations
StorCase Technology, Inc. InfoStation 12-Bay SCSI User's Guide - Rev. B00

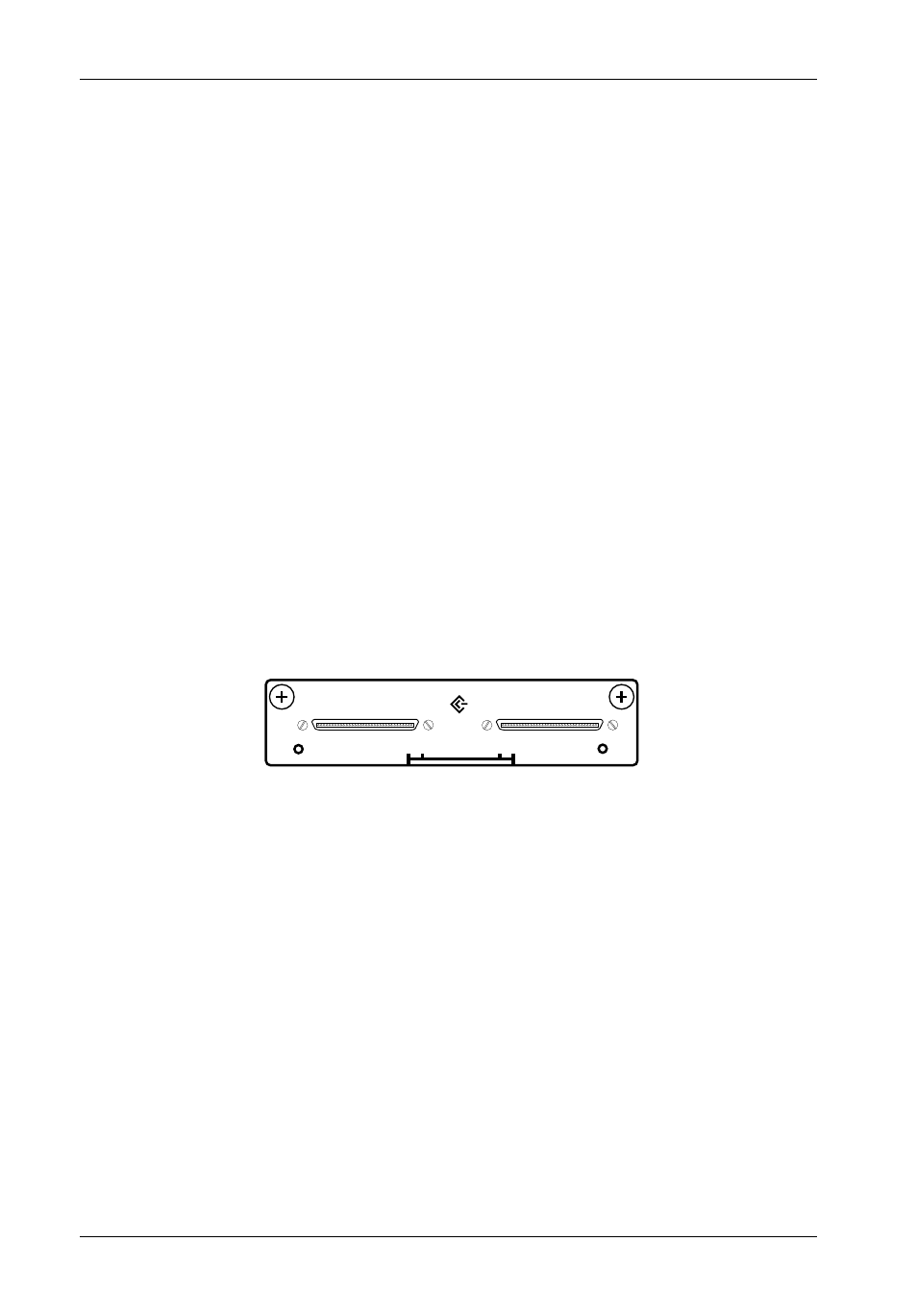

Figure 7: InfoStation VHDCI Connectors
(Ultra320 I/O Repeater Module)
Ultra320 I/O Repeater Module
Ultra320 I/O Repeater Modules are also available as an upgrade. Contact StorCase for further
ordering information.
CAUTION: VHDCI connectors are easily damaged by improper handling. Visually inspect
each connector for bent contacts and carefully align prior to insertion.
NOTES: Port-A (In) connects to SCSI Host/Disk Channel.
Port A (Out) connects to a terminator or daisy-chained to another InfoStation
chassis or SCSI device.
For daisy-chaining applications, total device-to-host cable length should not
exceed 12m (approx. 39ft) per SCSI specifications.
I/O Repeater Module LEDs
Error LED - Flashing indicates a detection in either:
(Amber)
1. Over temperature
2. Low termination voltage
3. Invalid differential voltage
Activity LED - ON indicates that activity is present.
(Green) OFF indicates that there is no activity present.
IFS12_6
Error Activity
SCSI LVD/SE
ULTRA320
PORT A (IN) PORT A (OUT)
