10 Installation
StorCase Technology, Inc. DS550 User's Guide - Rev. A04

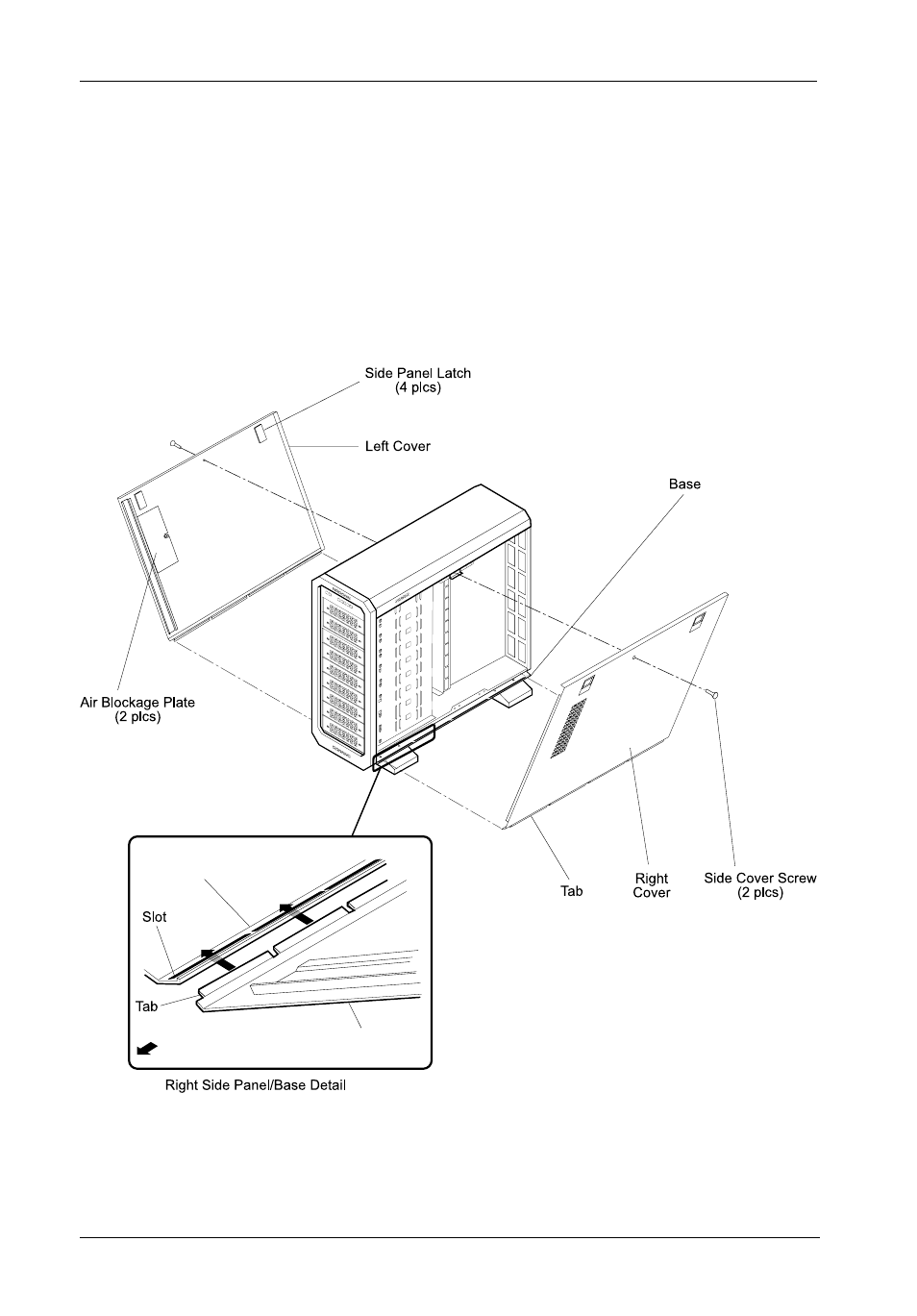

Figure 6: DS550 Tower Cover Removal
550_13
Front of
DS550
DS550
Right Cover
DS550 Base
(Right Side)
4. For Tower Models: Remove the side panels (Figure 6).
•
Remove the side panel retaining screw as shown in Figure 6.
•
Disengage the two (2) side panel latches on the side of the DS550.
•
With the side panel partially open, lift the panel vertically to unhinge the tab (lo-
cated at the bottom of the side panel) from the slots in the DS550 base. Remove
the side panels.
