DS550 User's Guide - Rev. A04 StorCase Technology, Inc.
Introduction 5

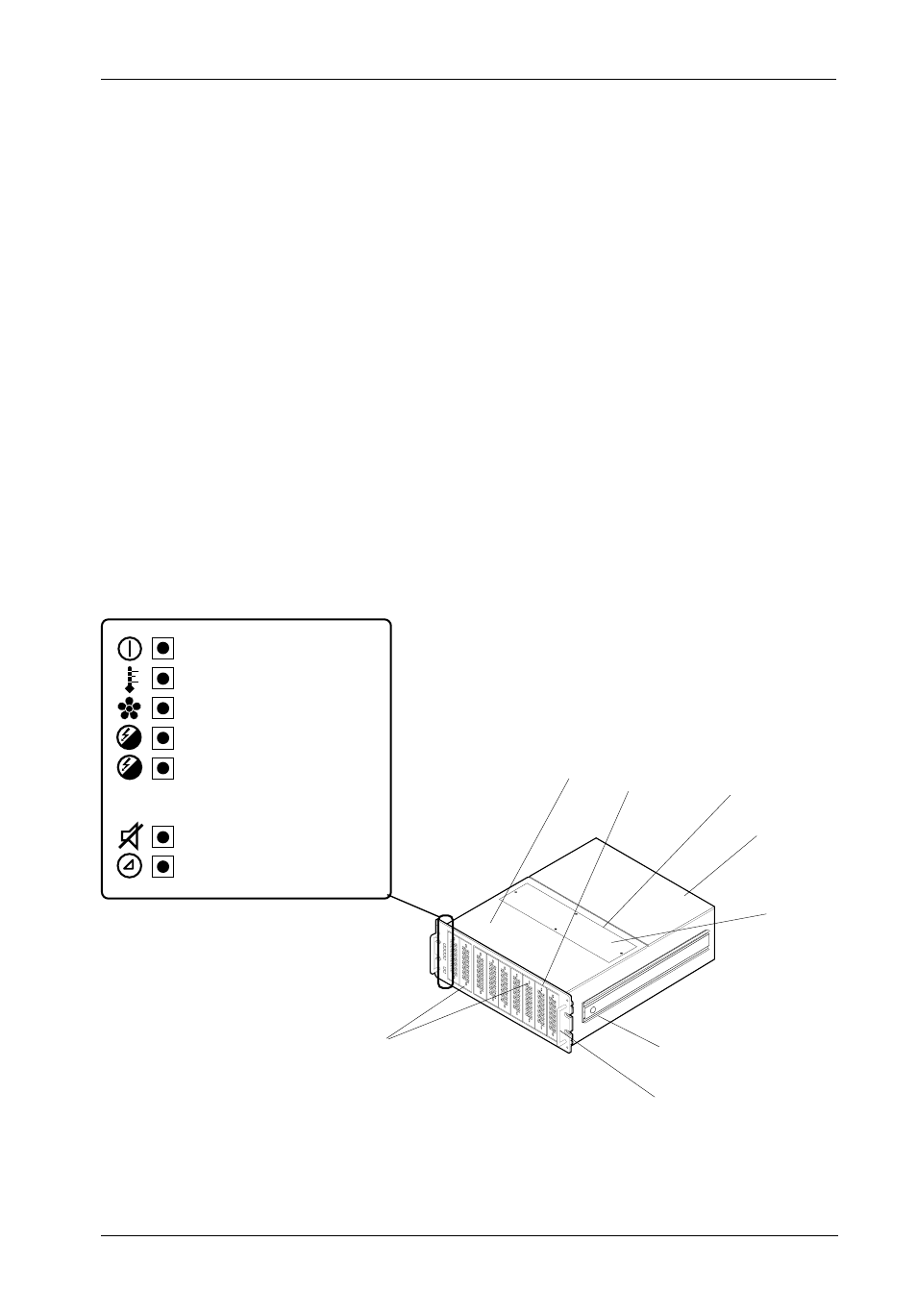

Figure 3: DS550 Front Panel
Front Panel
(Figure 3)
The front panel display contains seven (7) lights which provide the following information:
• Power-On - Steady green glow indicates that power is being supplied to the Data
Silo chassis.
• Temperature Warning - Flashing red indicates that internal operating temperature
has reached 43º C (109° F).
• Blower 1 or 2 Failure - Flashing red indicates a blower has failed.
• Power Supply 2 Failure - Flashing red indicates second power supply has failed.
• Power Supply 1 Failure - Flashing red indicates first power supply has failed.
• Mute - When switch is depressed, a steady yellow glow indicates the audible
warning sounds have been disabled. Depress switch again to enable sounds.
• Reset - Depress switch to reset chassis and clear any error conditions.
550_5
Drive Filler
Panels
Cable Access Covers (2)
Top and Bottom of Unit
Top Cover
Grab
Handles
Top Rear Cover
Rack Mount Slide
Assembly (optional)
Easy
Installation
Access
Drive Fault
& Drive Activity
Indicators
1
2
Power ON (Green)
Temperature Warning (Red)
Blower 1 or 2 Failure (Red)
Power Supply 2 Failure (Red)
Power Supply 1 Failure (Red)
Reset (Yellow)
Mute (Yellow)
Indicator and Control Panel
