4 Introduction
StorCase Technology, Inc. DS550 User's Guide - Rev. A04

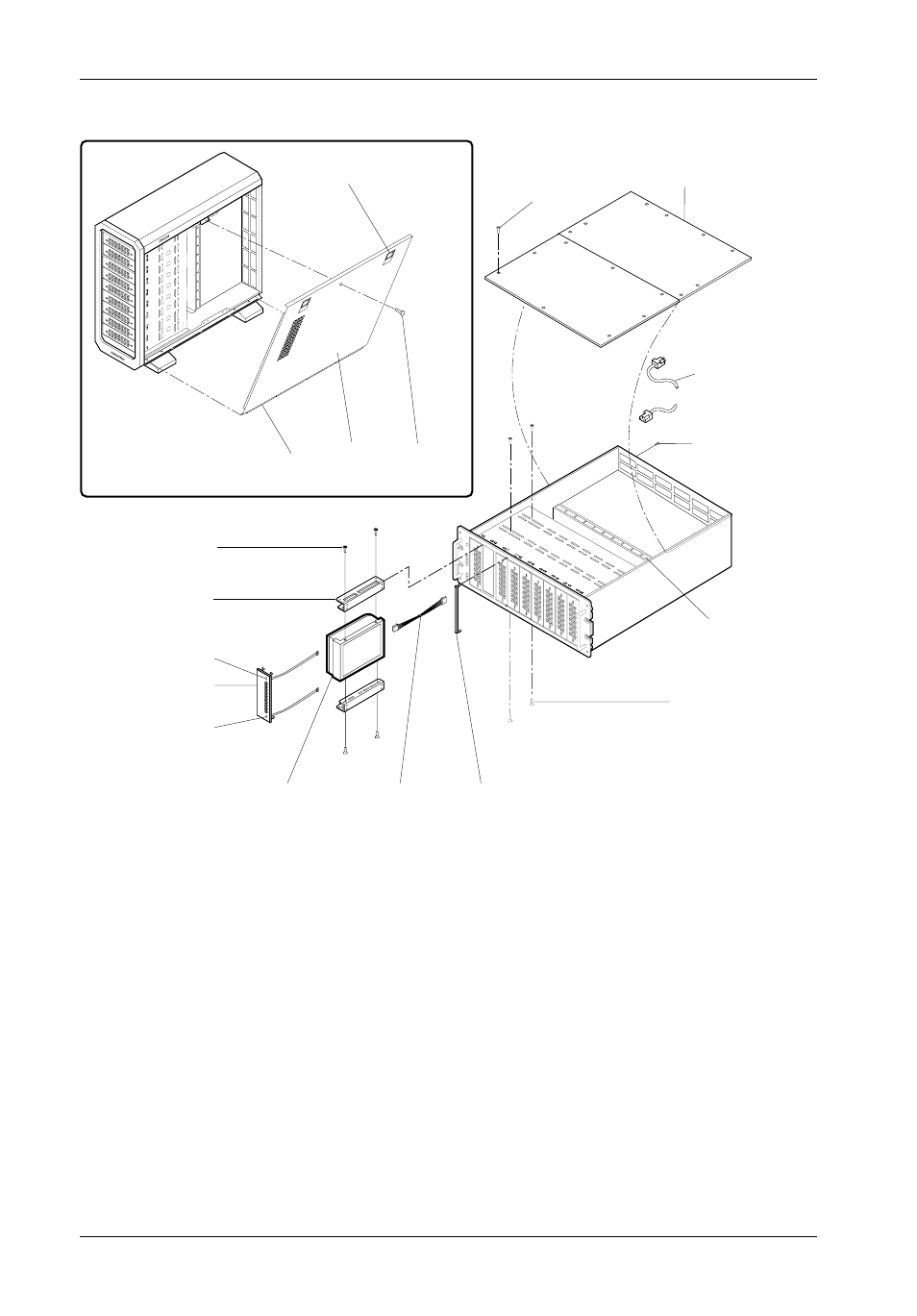

Figure 2: DS550 Drive Installation Overview
550_11
Cable Access Cover
(Top & Bottom)
Access Cover
Screw (16 Total)
Right
Cover Tab
Side Cover
Screw (2 plcs)
Rear Panel I/O
Panel Mounting
Screw (2 per Panel)
Power Strip
(12 Connectors Total)
Drive-to-Chassis
Mounting Screw
(4 per Drive)
Drive Power
Cable
3.5" Drive
Adapter Bracket
(2 per Drive)
Adapter Bracket
Mounting Screw
(4 per Drive)
Drive Activity
LED
Removable
Front Filler
Panel
Drive Power
LED
Side Cover Removal (Tower Model)
Power Cable
Removable
Drive Bay
Partition
Side Cover
Latch (2 plcs)
Drive
(Not Included)
