RAID Cable Kit
The DCW4RAID-KIT, an internal cable kit for the StorCase 9-bay Data Silo rack or tower chassis,
allows the DS500 to be used with SCSI RAID configurations where the RAID controller resides
within the Data Silo.
The DCW4RAID-KIT includes two (2) drive channel cables, each with five (5) device connectors
and an inline LVD/S.E. terminator, and one (1) host channel cable for connecting to the rear panel
of the Data Silo (Figure B-3).

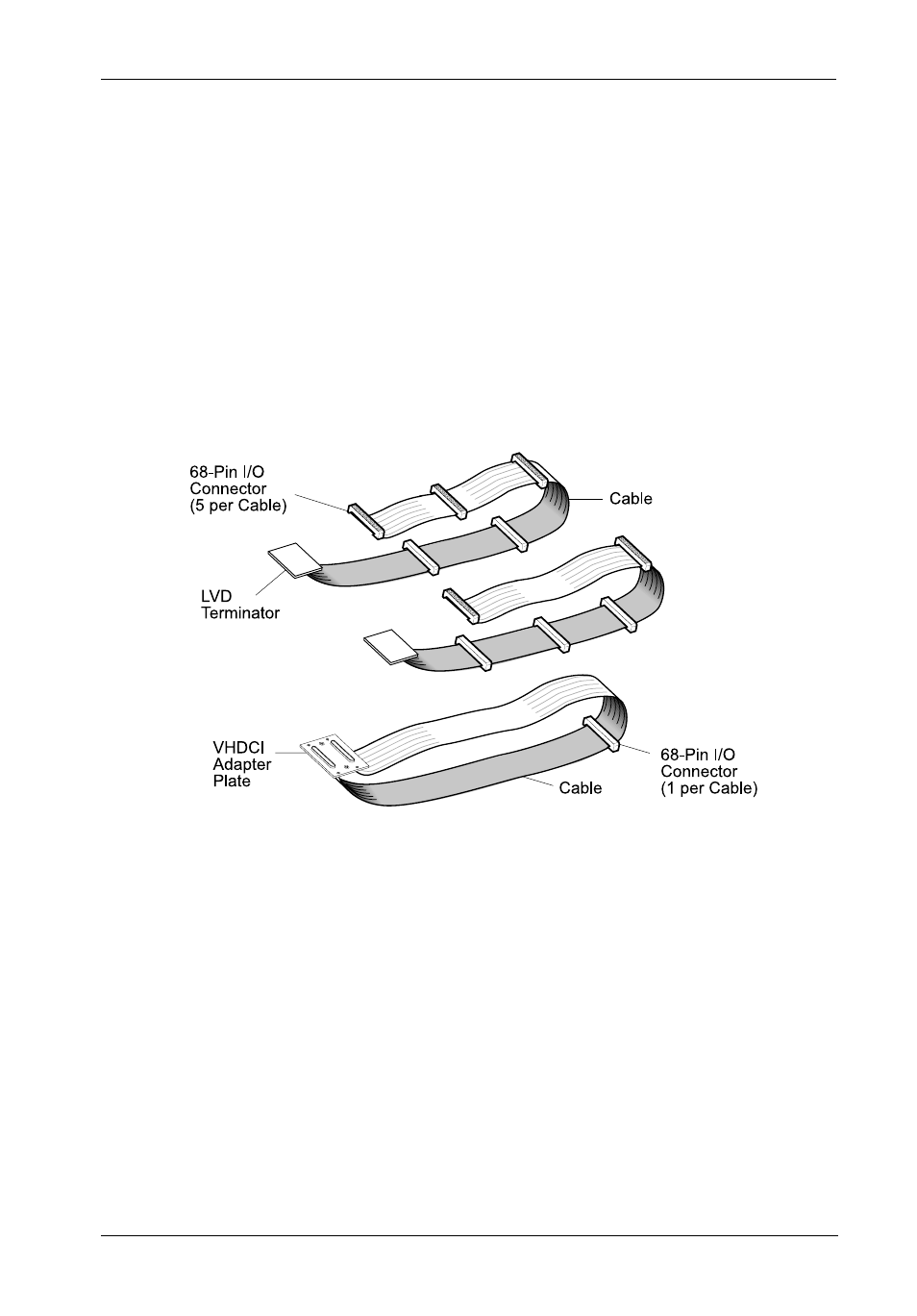

Figure B-3: DCW4RAID-KIT
